– 14 –

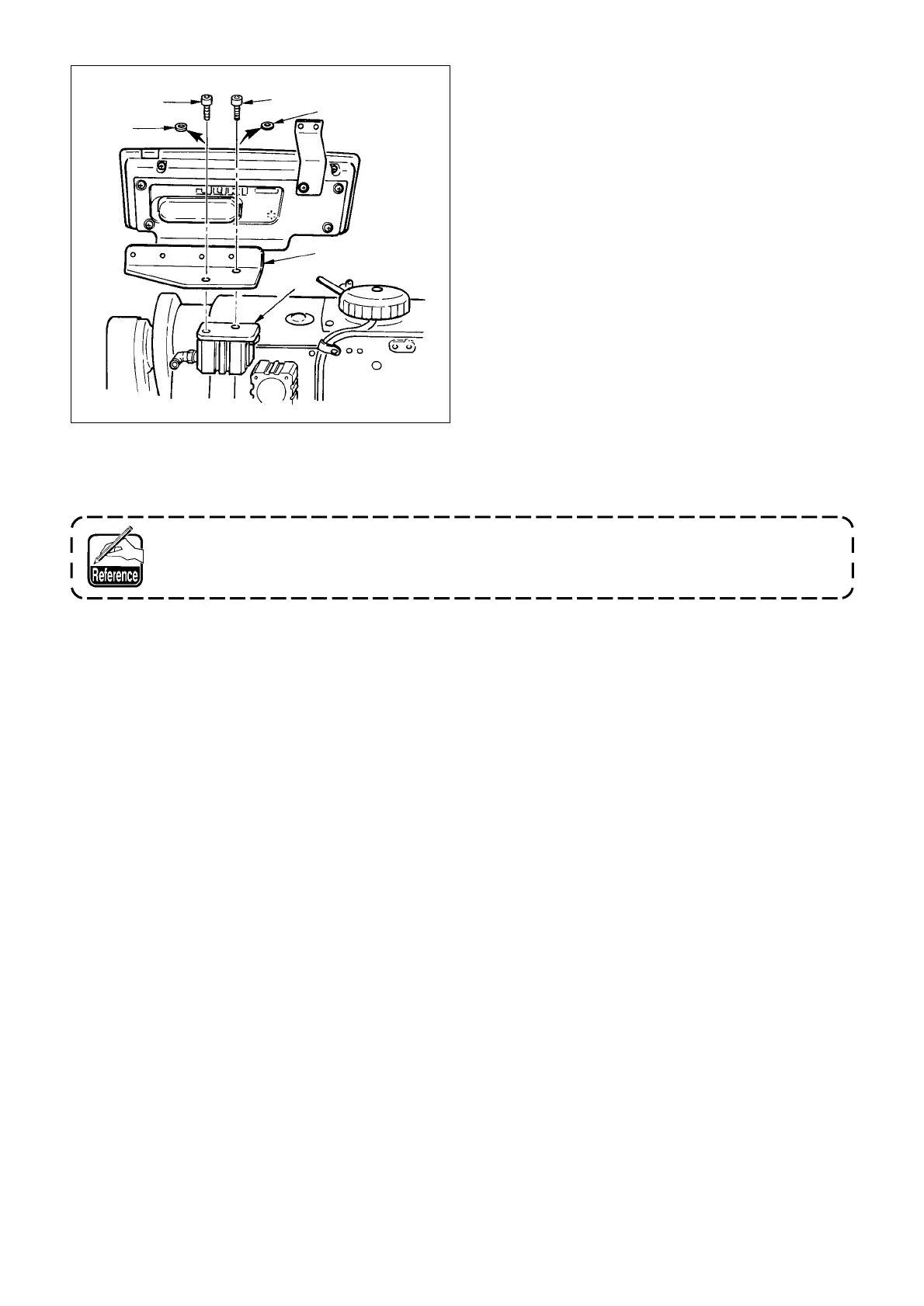

3) Remove setscrews !0 and flat washers !1 attached to reverse feed cylinder installing base 9. (2 pcs. each)
4) Install panel installing auxiliary plate 8 to reverse feed cylinder 9 with setscrews !0. At this time, flat washers
!1 are not used.
!1
!0
!0
!1
8
9
Work of steps 3) and 4) is not necessary for LU-22*6N series (long arm).
