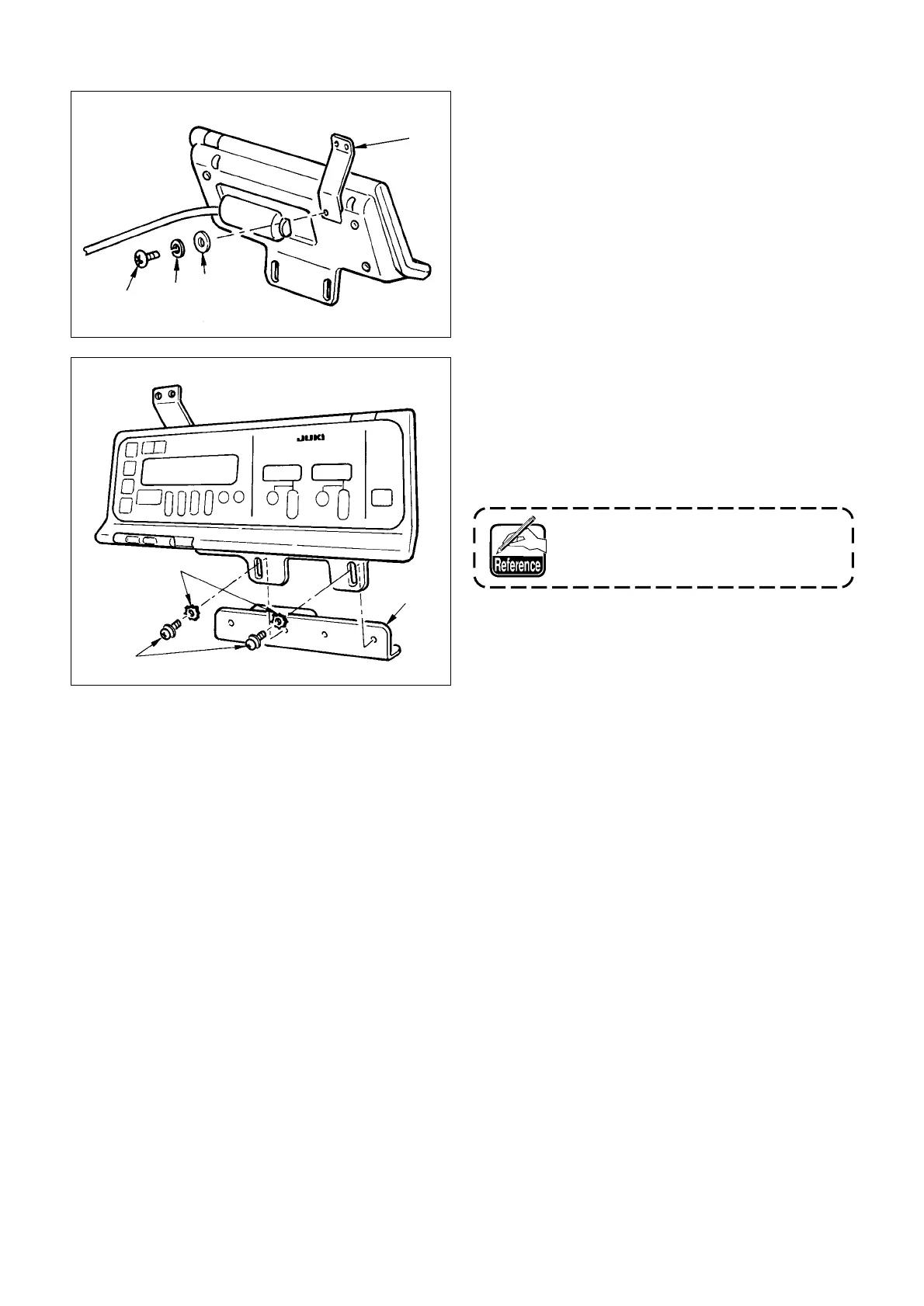

1) Install panel thread guide 9 to the installing plate
with screw 2, spring washer 3 and washer 4
supplied as accessories.
2) Install the operation box to panel installing auxiliary
plate 8 with screws 6 and washers 7 supplied
as accessories.
7
6
8
2
3
4
1
This work is not necessary for LU-
22*6N series (long arm).
