– 20 –

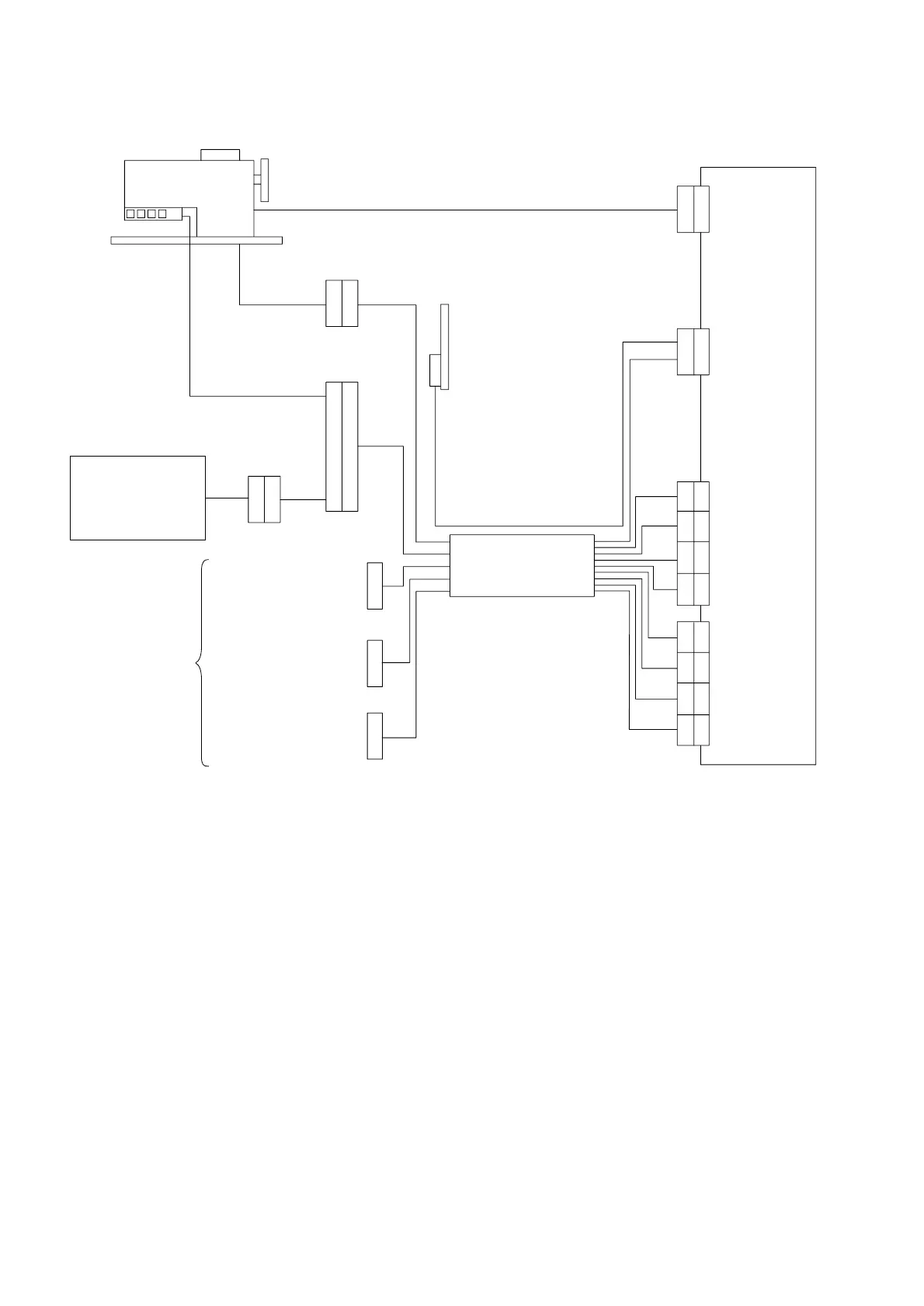

[LS-1342N-7/SC-510]
Relay cord
Synchronizer installed after set-up for SC-510
Sewing machine connector (12P)
Switch connector (16P)
Solenoid valve connector (10P)
Extension solenoid valve
connector (14P blue)
Connector for AE (8P)
Threadingg switch connector (4P)
・
・
Connect white line to 4 pin of CN36
and black line to 11 pin of CN36.
SC-510
Unused
Knee switch
Auto-lifter device (AK)
CN43(5P)
CN36(14P)
CN50-1(4P)
CN50-2(4P)
CN50-3(4P)
CN50-4(4P)
CN51-1(4P)
CN51-2(4P)
CN51-3(4P)
CN51-4(4P)
• When the alternate vertical movement device (DL) is not provided, connect the auto-lifter device (AK) to the
switch connector (16P) of relay cord.
