– 21 –

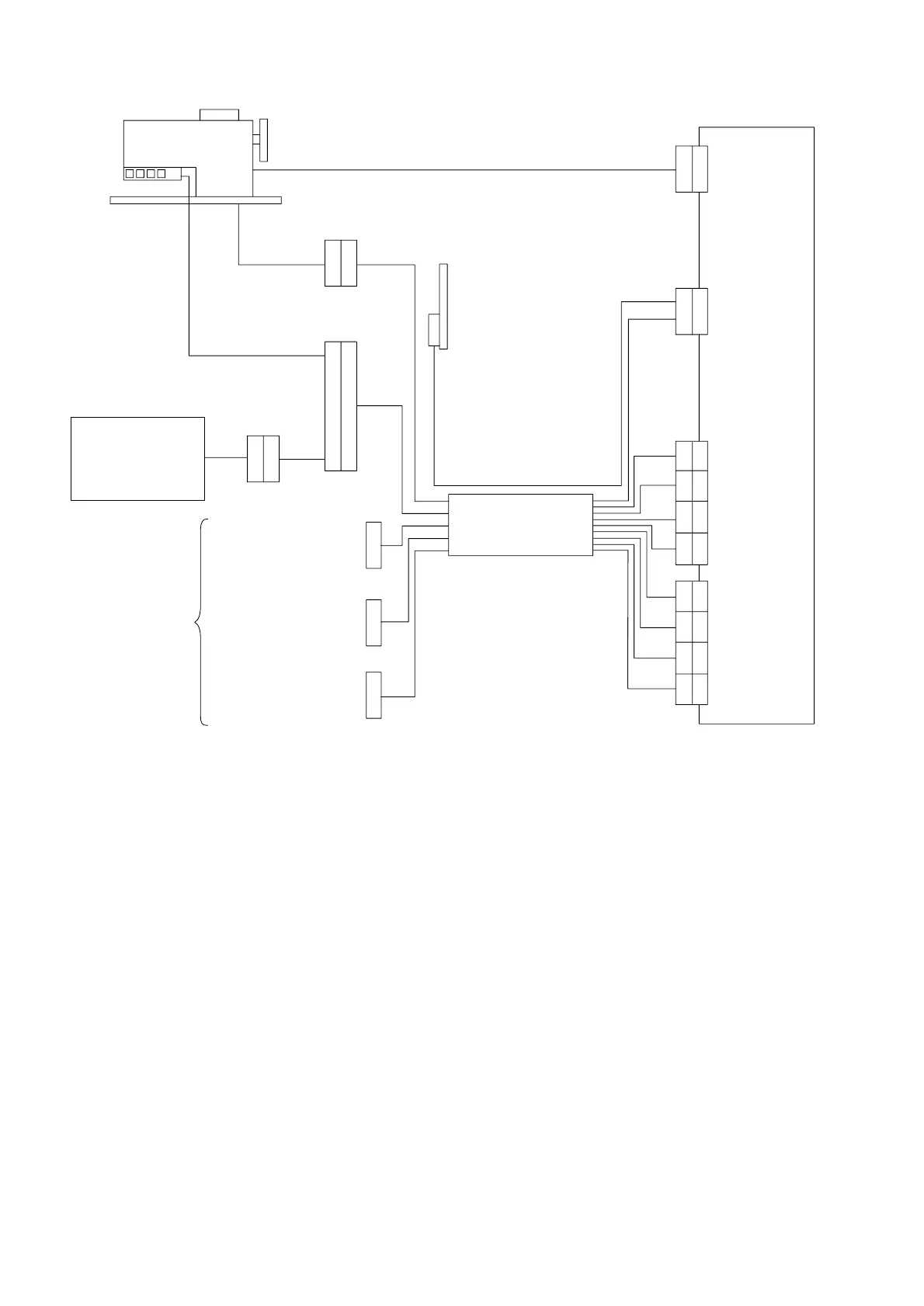

[DNU-1541N-7/SC-510]
Relay cord /
C
Synchronizer installed after set-up for SC-510
（12P）
Sewing machine
connector (12P)
Switch connector (16P)
Solenoid valve connector (10P)
/
Extension solenoid valve
connector (14P blue)
Connector for AE (8P)
Threadingg switch connector (4P)
・Connect white line to 4 pin of
CN36 and black line to 11 pin of
CN36.
SC-510
Unused /
Knee switch
Auto-lifter device (AK)
CN43(5P)
CN35(14P)
CN50-1(4P)
CN50-2(4P)
CN50-3(4P)
CN50-4(4P)
CN51-1(4P)
CN51-2(4P)
CN51-3(4P)
CN51-4(4P)
• When the alternate vertical movement device (DL) is not provided, connect the auto-lifter device (AK) to the
switch connector (16P) of relay cord.
• When only the automatic reverse feed device is provided (when the alternate vertical movement device (DL)
and the auto-lifter device (AK) are not provided), connect the automatic reverse feed device to the switch
connector (16P) of relay cord.
To Next Page
