– 24 –
LZH-1290-7
LZH-1290-7
DU-141H-7 / DSC / DSU

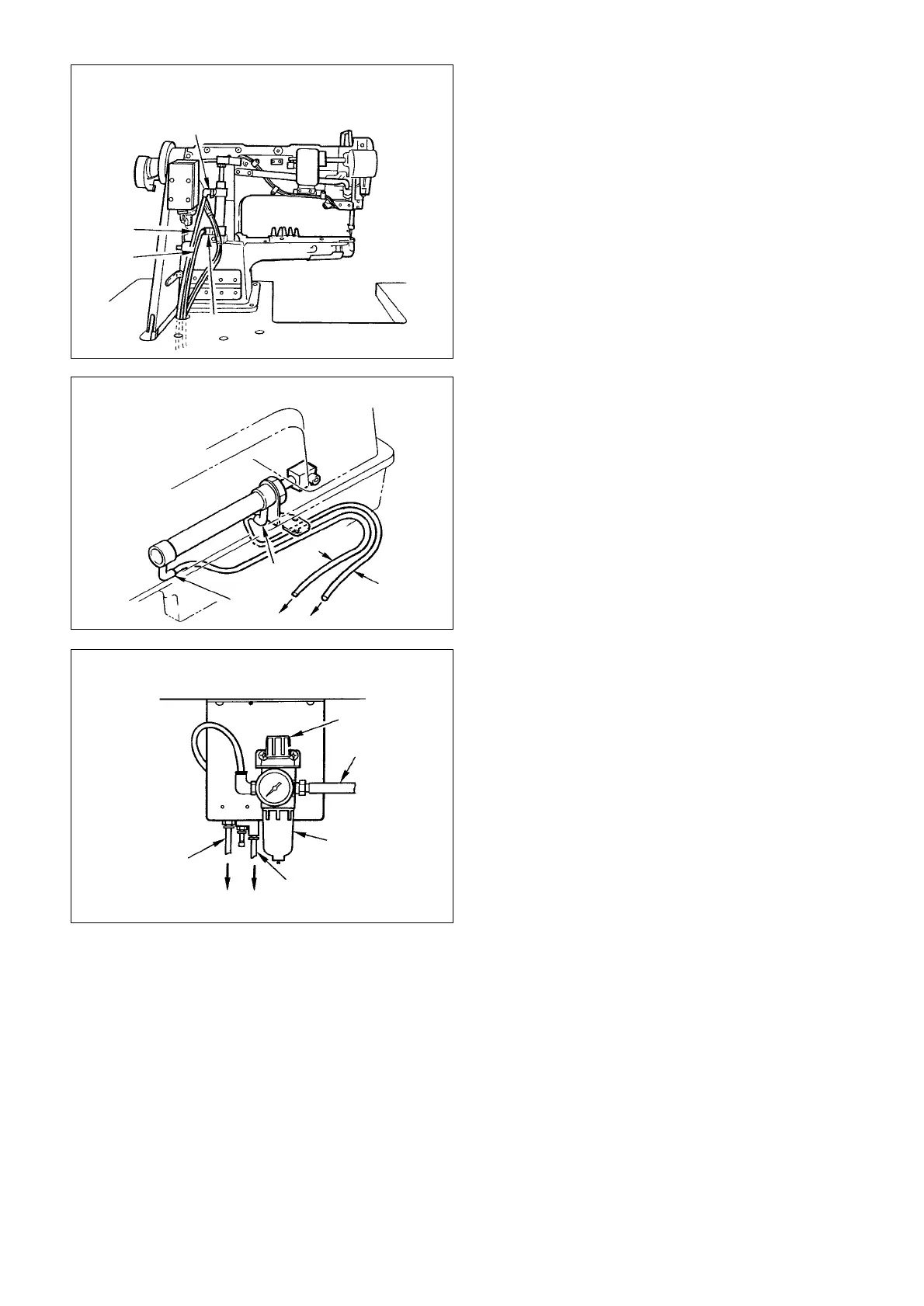

2) Connect air hose 8 to regulator 9.
3) Connect air hose !0 to quick coupling joint !1 and
air hose !2 to quick coupling joint !3.
(Caution) 1. Take care not to insert the air hoses to
wrong quick coupling joints.
2. Fully insert the air hoses into the quick
coupling joints taking care not to allow
air to leak.
3. Carefully prevent the air hoses from
bending.
4) After the completion of piping, adjust the operating
air pressure to 0.4 to 0.5 MPa { 4 to 5 kgf/cm
2
}
using knob !4 of regulator 9.
!0
!1
!3
!2
!0
!1
!2
!3
!0
!1
!2
!3
!4
8
9
To Next Page
