4. One-touch setting
A part of function setting items can be easily changed in the normal sewing state.
(Caution) For the setting of functions other than those covered in this part, refer to “
III-6. Setting of functions of
SC-920” p.23.

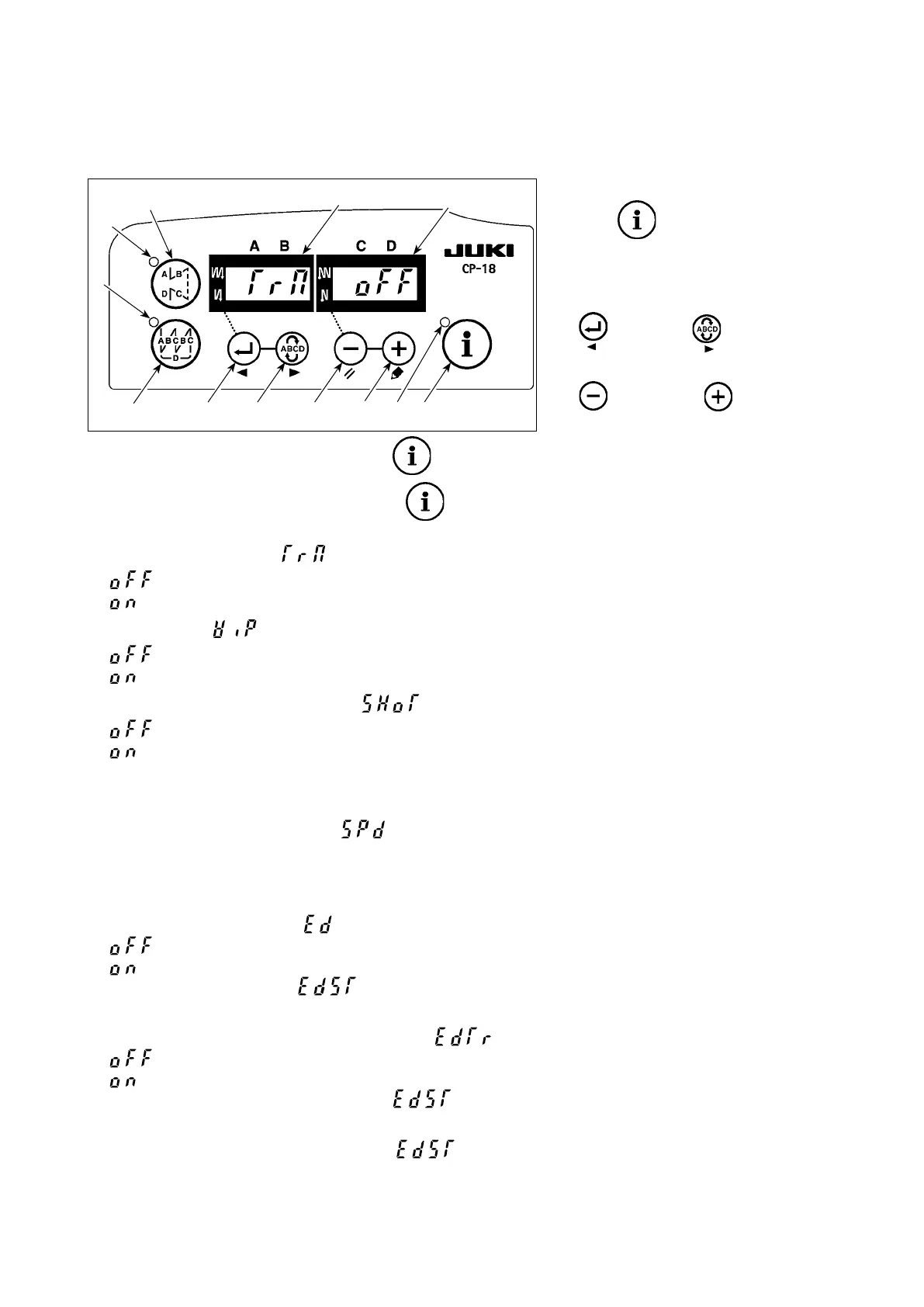

[One-touch setting procedure]
1) Keep switch
❼
held pressed for
one second to place the panel in the
function setting mode.
2) Change over the item to be set by using
switch
❸
or
switch
❹
. Then,
the set value can be changed by using
switch
❺
and
switch
❻
.
3) To return to the normal sewing state, press switch
❼
.
(Caution) The setting is conrmed by pressing switch
❼
.
①
Thread trimming function ( )
: Thread trimming operation is not performed (solenoid output prohibition: Thread trimmer, wiper)
: Thread trimming operation is effective.
②
Wiper function ( )
: Wiper does not operate after thread trimming
: Wiper operates after thread trimming
③
One-shot automatic stitching function ( )
: One-shot automatic stitching function is ineffective.
: One-shot automatic stitching is effective.
(Caution) This function is rendered effective when the material end sensor function is set. It is not possible to
prohibit the one-shot operation during overlapped sewing operation. The number of revolution is the
value which is set for setting No. 38.
④
Setting of the max. speed of stitch ( )
The highest speed of stitch of the machine head is set. The upper limit of the set value differs with the type of
machine head to which the SC is connected.
Setting range : 150 - Max. value [sti/min]
⑤
Material end sensor function ( )
: Material end sensor function is ineffective.
: Once the material end is detected, the sewing machine stops running after having sewn the number of
stitches set with
⑦
( ).
* This function is rendered effective when the material edge sensor is set up.
⑥
Thread trimming function by material end sensor ( )
: Automatic thread trimming function after the detection of material end is ineffective.
: Once the material end is detected, the sewing machine performs thread trimming after having sewn
the number of stitches set with
⑦
( ).
* This function is rendered effective when the material edge sensor is set up.
⑦
Number of stitches for material end sensor ( )
The number of stitches to be sewn from the detection of material end to the stop of the sewing machine
Number of stitches that can be set: 0 to 19 (stitches)
(Caution) If the number of stitches specied is inadequate, the sewing machine can fail to stop within the preset
number of stitches depending on the number of revolutions of the sewing machine.
