– 3 –
❶

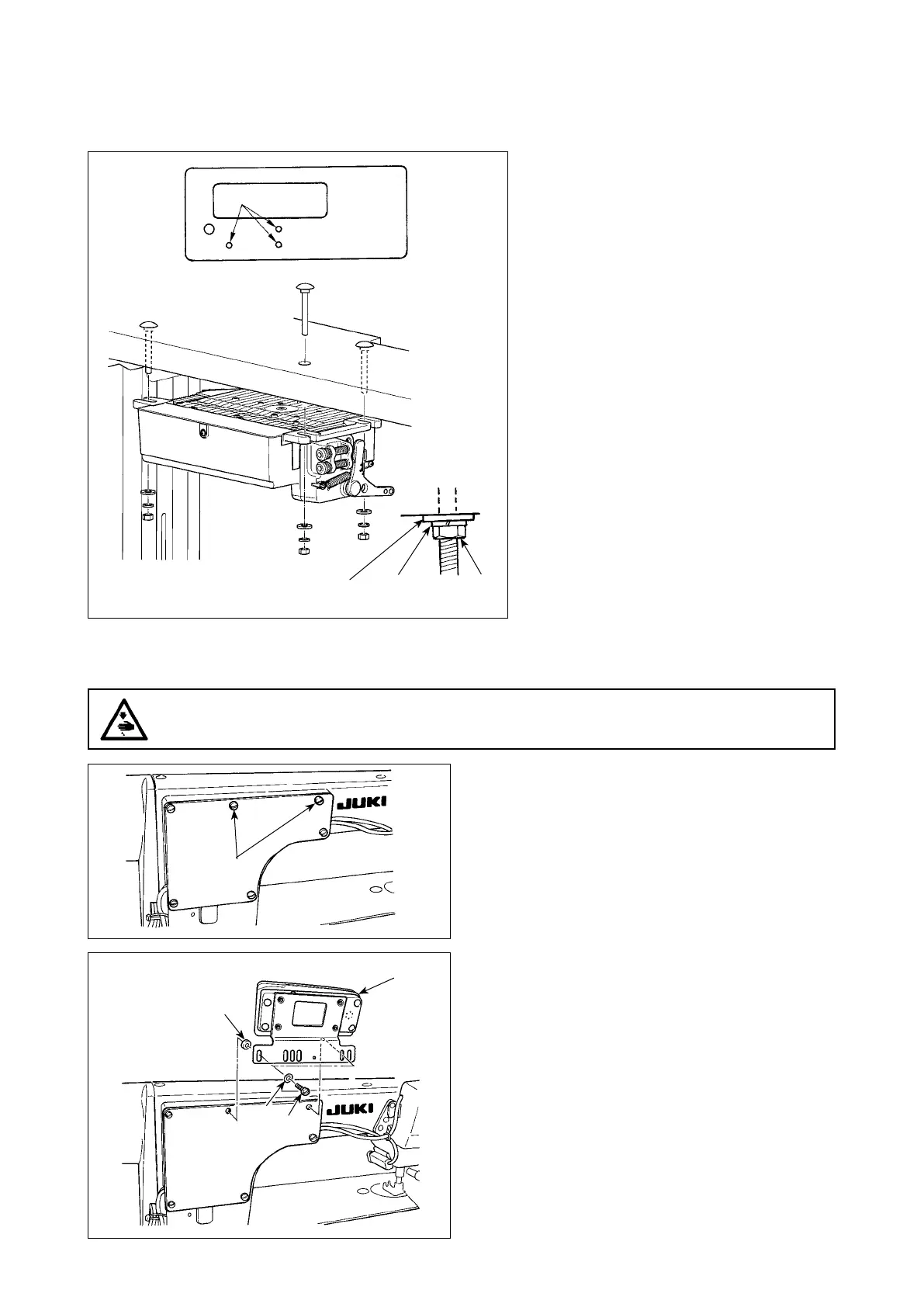

2. Installing to the table
In the case the SC-920 is used for the DD (direct-drive) type sewing machine head, install the control box on the
table following the instructions give below.
The description given below refers to the case
the SC-920 is installed on the table of the
DDL-9000B. To use any other machine head,
install the control box on the table referring to
the Instruction Manual for the main body of
the relevant sewing machine.
1) Install the control box to the table with the
tting bolt (asm.)
❶
supplied with the unit
as accessories. At this time, insert the
nut and washer supplied with the unit as
accessories as shown in the gure so that
the control box is securely xed.
2) After having installed the control box (and
the compact motor) on the table, mount the
sewing machine head on the table. (Refer
to the Instruction Manual for the sewing
machine to be used.)
Plain washer
Spring
washer
Hexagonal
nat
3. Installing the control panel
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and a lapse of 5 minutes or more.
1) Remove side plate setscrews
❶
from the side
plate.
❶
2) Install control panel
❷
on the machine head using
screws
❺
, at washers
❸
and rubber seat
❹
sup-
plied with the control panel as the accessories.
(Caution) 1. DDL-9000B (Not provided with AK) is giv-
en as an example of installing procedure.
2. Screw to install the panel changes ac-
cording to the machine head used. Refer
to Table 1 (p.4) and conrm the kind of
screw.
❷
❹
❺
❸
To Next Page
