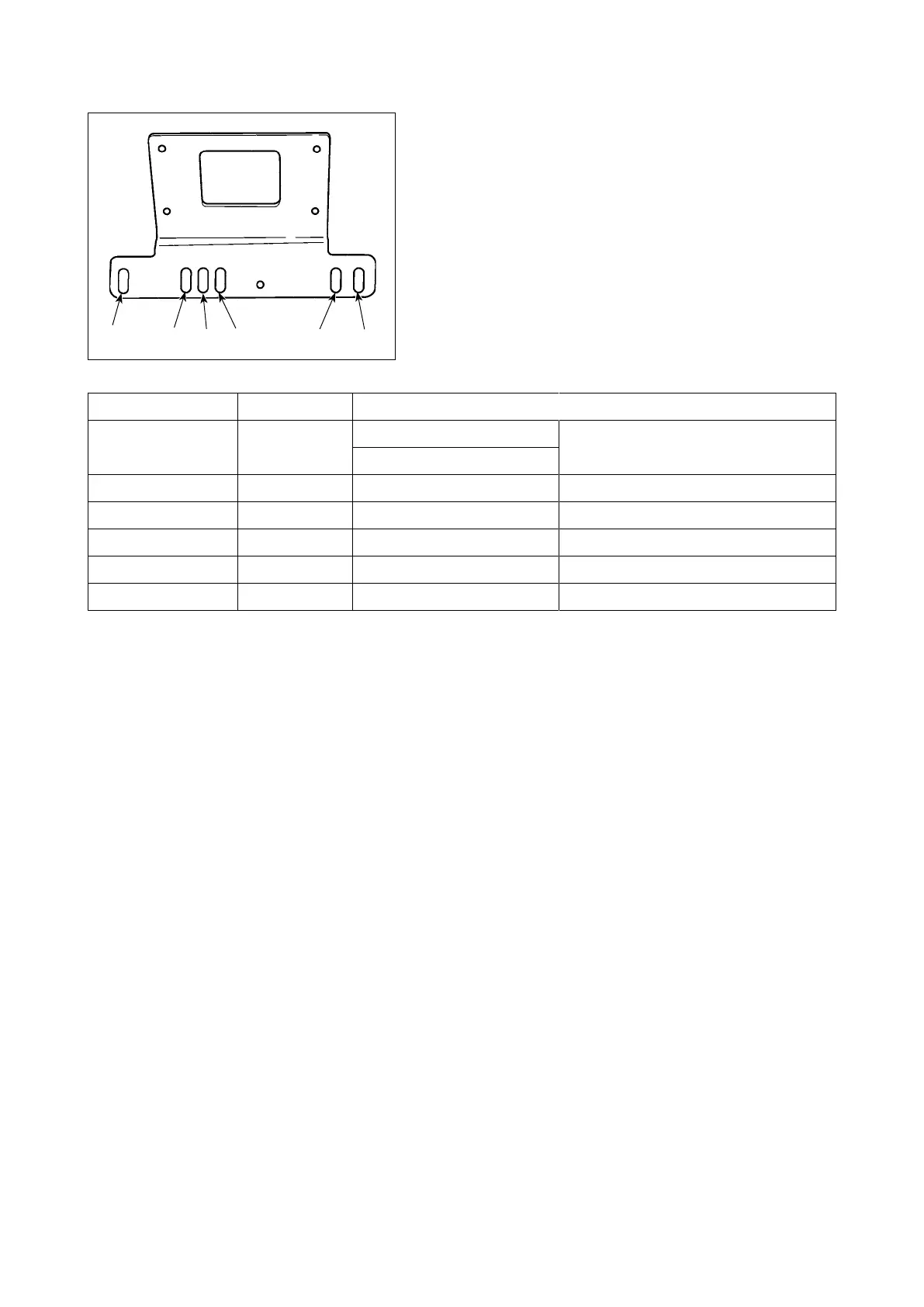

< The relation between the respective machine heads and the positions of installing hole of the bracket are
as described in the table. >
Installing hole Screw
DDL-9000B
①
-
⑤
(Provided with AK) M5 × 14
Side plate setscrew
(Not provided with AK) M5 × 12
LH-3500A
②
-
⑤
M5 × 14 Side plate setscrew
DLN-9010
②
-
⑤
3/16-28 L=12 Screw supplied with panel as accessories
DDL-8700 series
③
-
⑤
3/16-28 L=12 Screw supplied with panel as accessories
DDL-5500 series
*1
③
-
⑤
3/16-28 L=12 Screw supplied with panel as accessories
LZ-2280 series
*1
③
-
⑤
11/64-40 L=7.8 Screws supplied with machine head
Table 1
*1
For the DDL-5556 and LZ-228*, the machine head is supplied with an auxiliary bracket for mounting the control panel
as an accessory. Be sure to install the bracket while referring to the instruction manual for the machine head.
①
②
⑤ ⑥③
④
(Caution) 1. Screws to be used for installing the panel differ with the machine head, i.e., screws supplied with
the panel as accessories and the side plate setscrews. Select appropriate screws/setscrews refer-
ring to Table 1.
2. If the screw type is not correct, the tapped hole can be collapsed.
3. If you want to install the panel on the DDL-8700, be aware that the method to install it on the ma-
chine head differs depending on whether or not the machine head is provided with the AK device.
Machine head with the AK device: Install the panel on the head bracket supplied with the AK.
(The auxiliary bracket should be xed with the side plate set-
screws.)
Machine head without the AK device: Remove the side plate setscrews and install the panel on
the side plate using the screws supplied with panel as
accessories.
4. If you want to use the panel with the machine head for heavy-weight materials, install it referring to
the "Supplementary Instructions" for the machine head.
