5.3 Operating and functional elements
The following figure shows the operating and functional elements and their
position on the unit.

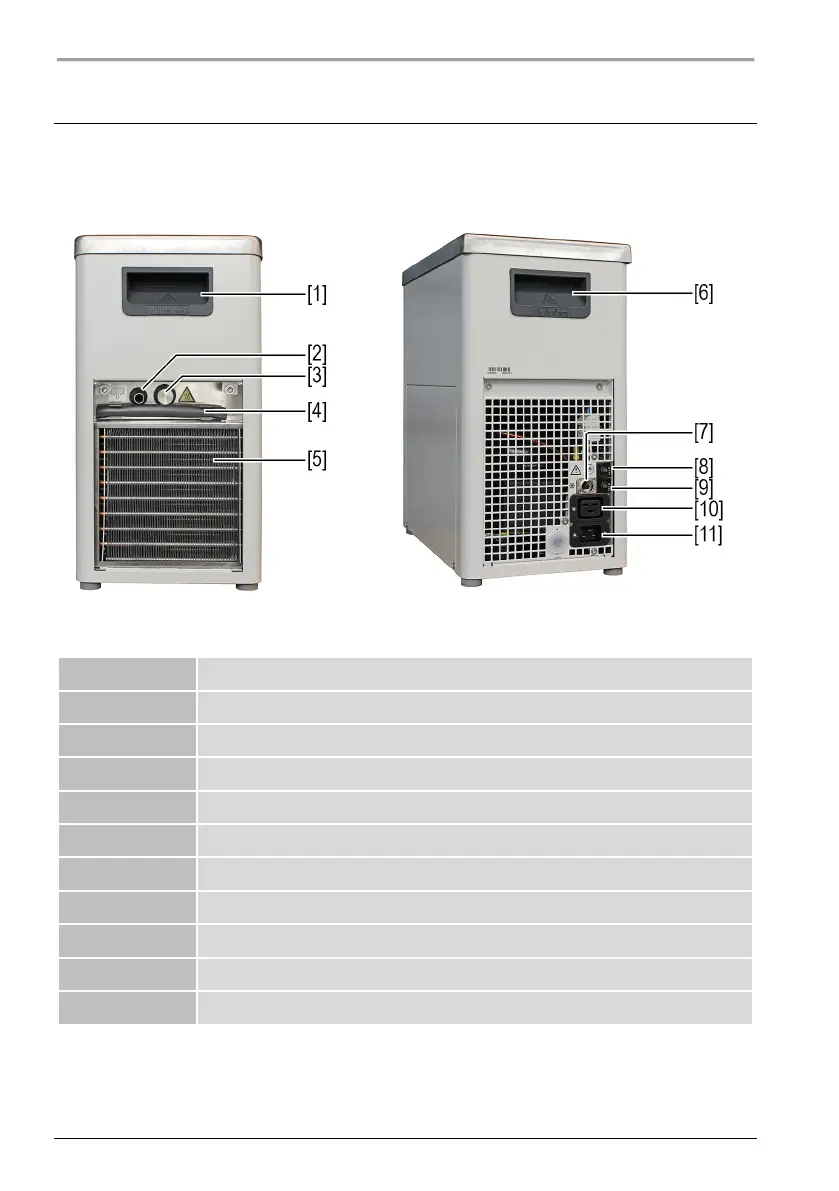

Front (without cover) and rear (e.g. 310F)
1
Recessed grip
2
Bath tank drain opening
3
Drain valve
4
Drain hose (for 310F and 450F)
5
Condenser
6
Recessed grip
7
CAN plug for connection with a circulator
8
Mains fuse, resettable
9
Mains fuse, resettable
10
Circulator mains output socket
11
Mains input socket
