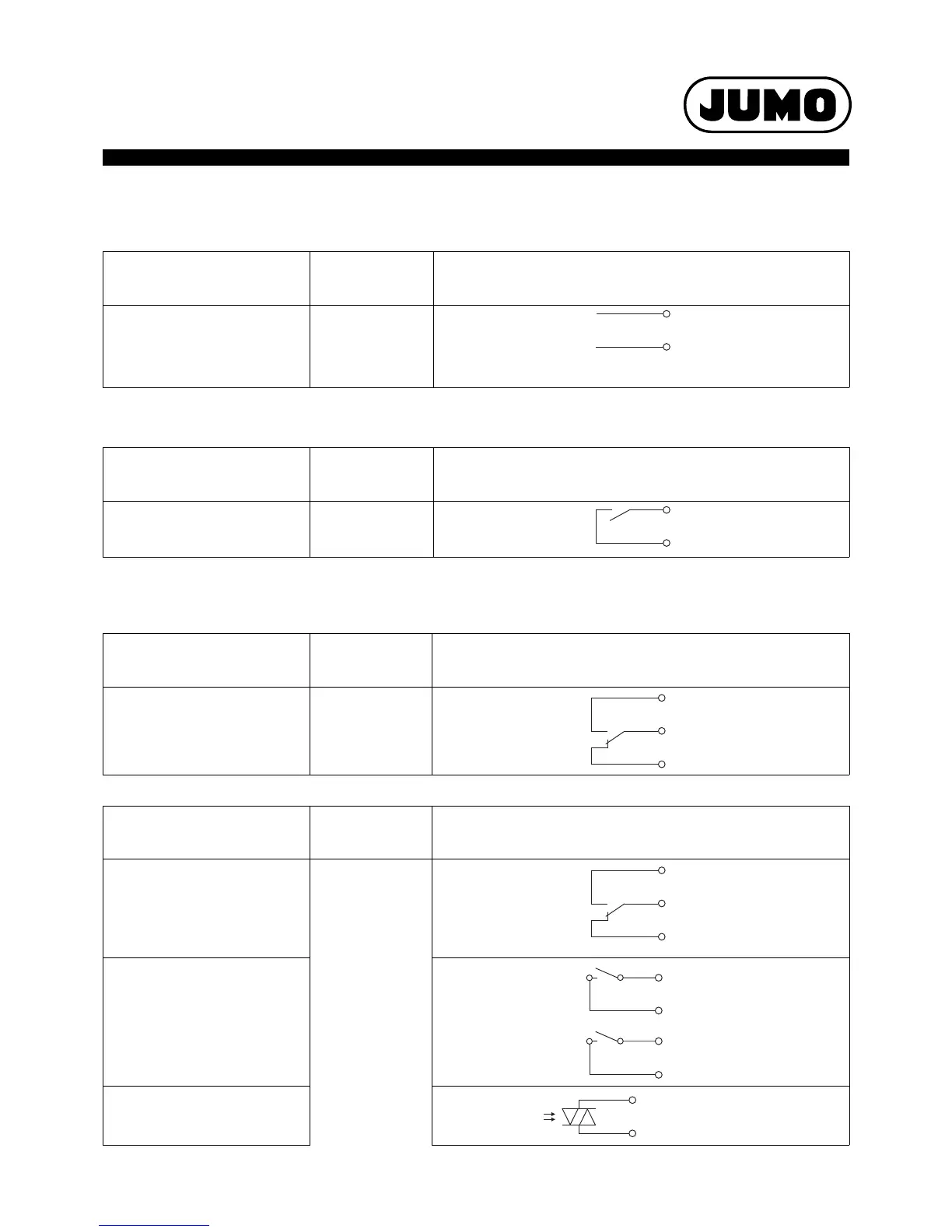

Analog outputs
One analog output can be added to output OUT 3/4 to 11/12 using optional boards
Digital inputs
Input IN1 to 7 as standard (cannot be extended)
Digital outputs
OUT1 and OUT2 as standard
The controller is fitted with two relay outputs (changeover contacts) as standard.
Outputs OUT 3/4 to 11/12 are expandable using the following optional boards
Connection (Connection ele-
ment)
Input
Symbol and terminal designation
One analog output
DC0/2to10V or DC0/4to20mA
(configurable)
(8) OUT3/4
(9) OUT5/6
(10) OUT7/8
(11) OUT9/10
(12) OUT11/12
1
2
Connection (Connection ele-
ment)
Input
Symbol and terminal designation
Digital input, potential-free contact
as standard
(15) IN1 to 7 3, 4, 5, 6, 7, 8, 9
10
Connection (Connection ele-
ment)
Output
Symbol and terminal designation
Relay output (changeover contact) (6) OUT2
(7) OUT1
1
2
3
Connection (Connection ele-
ment)
Output
Symbol and terminal designation
One relay output (changeover contact) (8) OUT3/4
(9) OUT5/6
(10) OUT7/8
(11) OUT9/10
(12) OUT11/12
1
2
3
Two relay outputs (N/O contact)
a
1
2
3
4
One solid state relay
AC 230 V, 1 A
1
2
To Next Page
