JUMO DICON touch Datasheet

V1.00/EN/00578870
Data Sheet 703571 Page 18/23
JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14
36039 Fulda, Germany
Postal address: 36035 Fulda, Germany
Phone: +49 661 6003-0
Fax: +49 661 6003-607
Email: mail@jumo.net
Internet: www.jumo.net
JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax: +44 1279 635262
Email: sales@jumo.co.uk
Internet: www.jumo.co.uk
JUMO Process Control, Inc.
6733 Myers Road
East Syracuse, NY 13057, USA
Phone: 315-437-5866
1-800-554-5866
Fax: 315-437-5860
Email: info.us@jumo.net
Internet: www.jumousa.com
70357100T10Z002K000

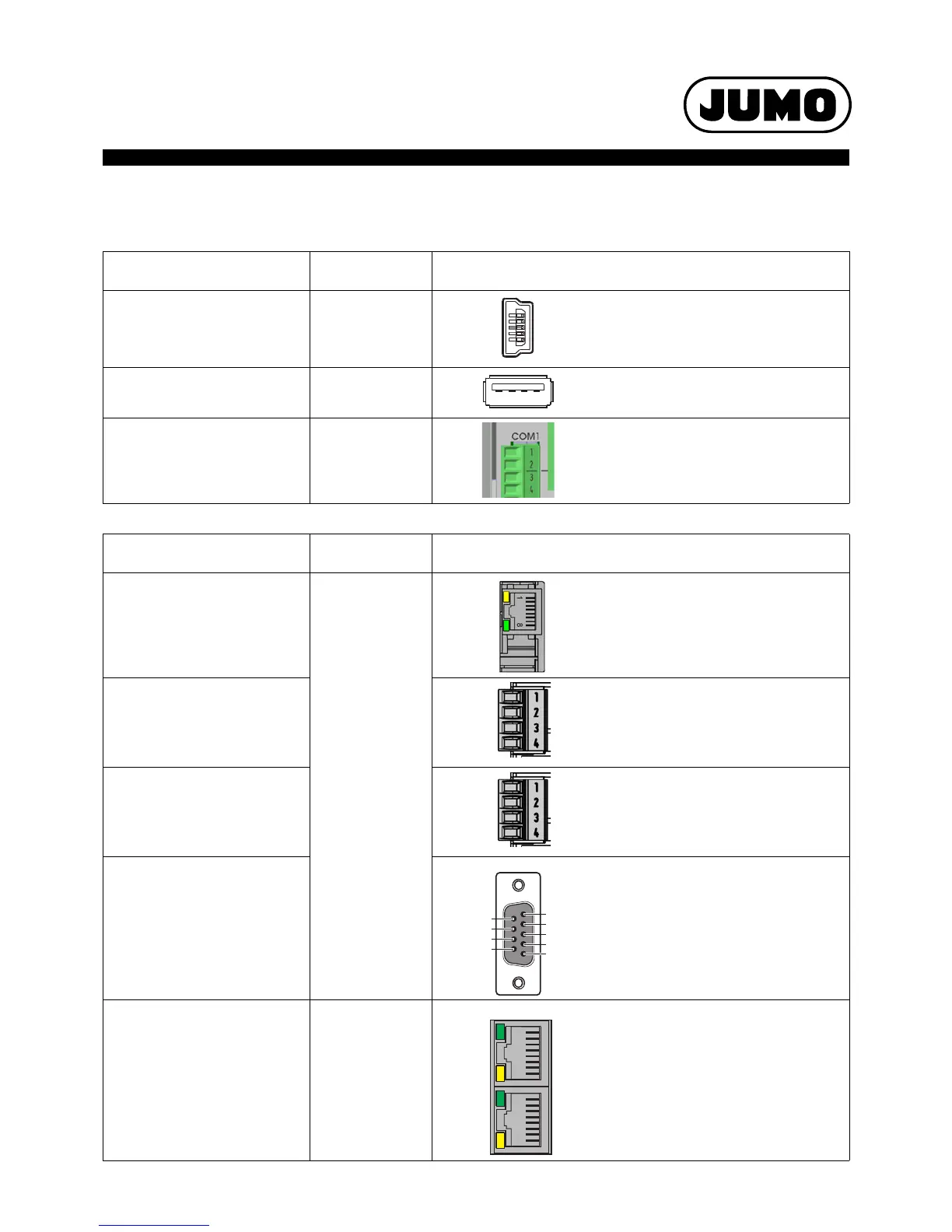

Interfaces
USB device, USB host and COM1 interfaces as standard
COM2 interface can be expanded using optional boards
Connection (Connection ele-
ment)
Symbol and terminal designation
USB device interface (21)
USB host (20)
COM1 serial interface RS485
(galvanically isolated)
(13) 1 TxD+/RxD+
2 TxD-/RxD-
Transmission/received
data +
Transmission/received
data -
Connection (Connection ele-
ment)
Symbol and terminal designation
Ethernet (14) 1 TX+
2 TX-
3 RX+
6 RX-
Transmission data +
Transmission data -
Received data +
Received data -
Serial interface RS422
(galvanically isolated)
1 RxD+
2 RxD-
3 TxD+
4 TxD-
Received data +
Received data -
Transmission data +
Transmission data -
Serial interface RS485
(galvanically isolated)
3 TxD+/RxD+
4 TxD-/RxD-
Transmission/received
data +
Transmission/received
data -
PROFIBUS-DP 3 RxD/TxD-P (B)
5 DGND
6 VP (+5 V)
8 RxD/TxD-N (A)
Transmission/received
data +
Ground
Voltage supply
Transmission/received
data -
PROFINET-RT 1TX+
2 TX-
3 RX+
6 RX-
Transmission data +
Transmission data -
Received data +
Received data -
6
7
8
9
2
3
4
5
1
8
1
8
1
