4.2 Recharging the battery with integrated battery charger (

)

The battery charger must not be opened. If it is damaged, it has to be exchanged.

Due to safety reasons, intermediate positions are available between the regulation

positions “1” to “6” of the switch (7).

If the truck is delivered without battery, an intermediate position is pre-selected as de-

fault. The red light-emitting diode (5) flashes - the battery cannot be recharged.

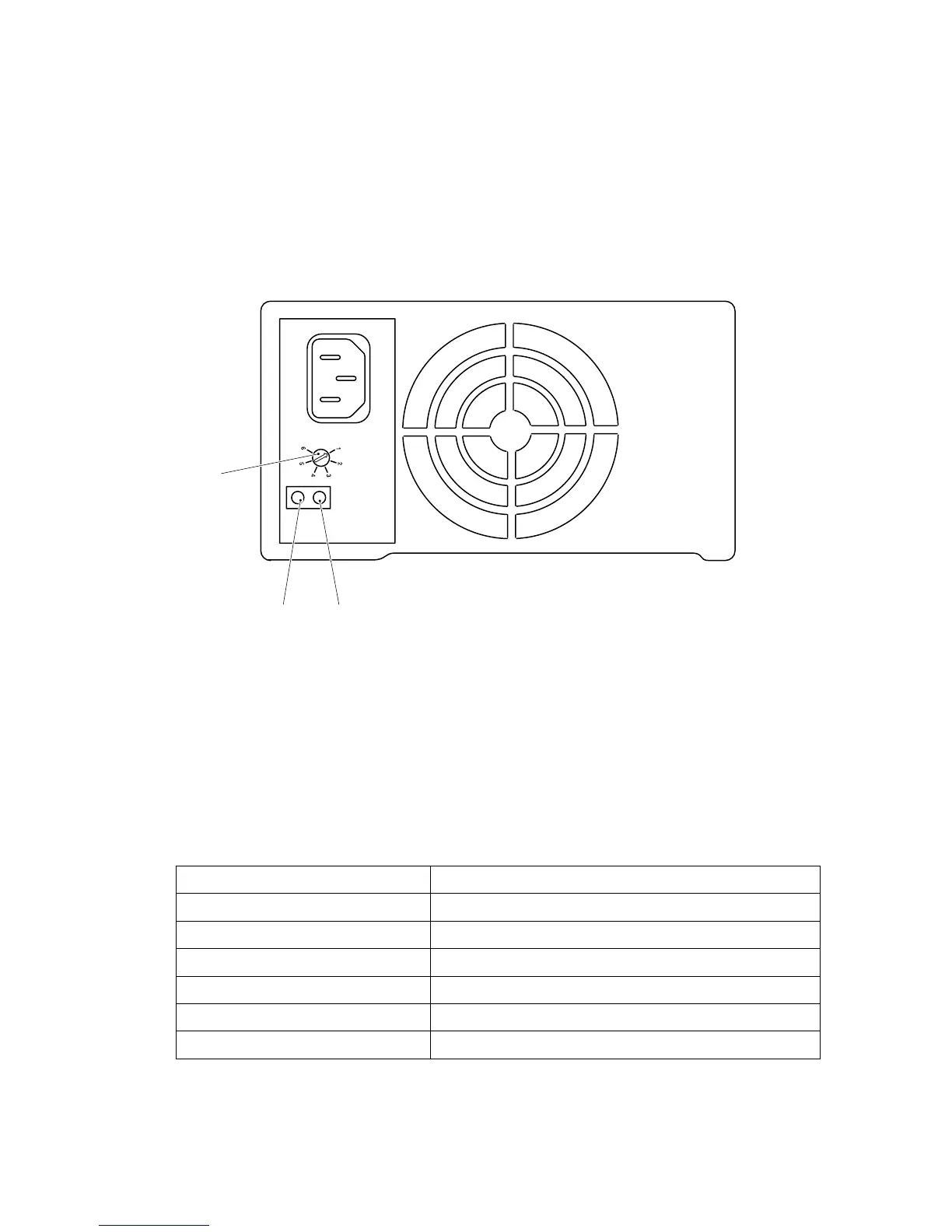

Select charging curve in the integrated battery charger

Use switch (7) at the battery charger to adjust the charging curves to the appropriate

battery according to the following table.

The power plug must be pulled before the corresponding charging curve is to be ad-

justed!

Provided that a battery is connected, a new setting can be acknowledged via the

LEDs (cf., indicator) which will then be immediately effective.

Position of switch (7) selected charging curves (characteristics)

1 Wet batteries: 100 - 300 Ah

2 Maintenance-free: 100 - 140 Ah

3 Maintenance-free: 150 - 200 Ah

4 Maintenance-free: 210 - 300 Ah

5F r e e

6F r e e
