Jungheinrich EJC 16 User Manual

0401.GB
D 10
6 Combined instrument

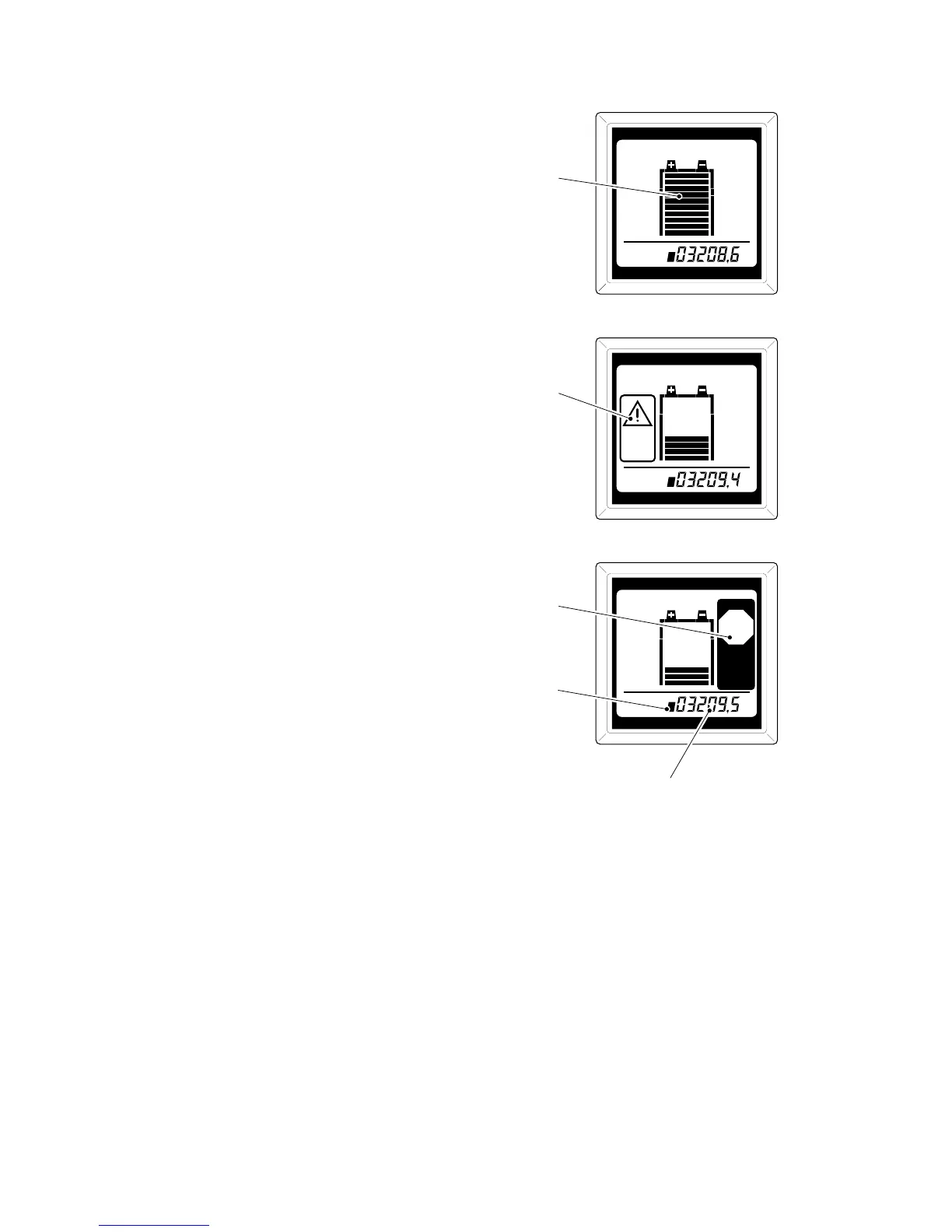

Battery discharge indicator: The di-
scharging status of the battery is indica-
ted by 10 beams on battery icon (14) re-
presenting 10%-steps.
As the discharge proceeds, the beams
go out from top to bottom.
m
If maintenance-free batteries are used,
the instrument must be adjusted in such
a way that the T icon (17) appears next
to the operating hours indicator. If this
setting is not selected, the battery may
be damaged due to a complete dischar-
ge. For adjusting the instrument, it is re-
commended to consult the manufacturer
service.
When a remaining battery capacity of
- 30% for standard batteries
- 50% for maintenance-free batteries
is reached, a “CAUTION” icon (15) is in-
dicated.
Recharging the battery is recommen-
ded.
When a remaining battery capacity of
- 20% for standard batteries
- 40% for maintenance-free batteries
is reached, the “CAUTION” icon goes
out and a flashing “STOP” icon (16) ap-
pears.
After 5 min., the “STOP” icon box lights
up permanently. Recharging the battery
is recommended.
Battery discharge monitor: When the “STOP” icon is permanently lit, the lifting
function is switched off.
A
The lifting function can only be re-activated, when the connected battery is at least
recharged by 70%.
Operating hour meter: The operating hour meter (18) is integrated in the battery di-
scharge indicator and displays the overall operating time of all driving and lifting mo-
vements.
A
The digit to the right-hand side of the decimal point is flashing when the device is ac-
tive.
h
h
h
STOP
T
T
T
14
15
16
17
18
0401.GB
D 10
6 Combined instrument
Battery discharge indicator: The di-
scharging status of the battery is indica-
ted by 10 beams on battery icon (14) re-
presenting 10%-steps.
As the discharge proceeds, the beams
go out from top to bottom.
m
If maintenance-free batteries are used,
the instrument must be adjusted in such
a way that the T icon (17) appears next
to the operating hours indicator. If this
setting is not selected, the battery may
be damaged due to a complete dischar-
ge. For adjusting the instrument, it is re-
commended to consult the manufacturer
service.
When a remaining battery capacity of
- 30% for standard batteries
- 50% for maintenance-free batteries
is reached, a “CAUTION” icon (15) is in-
dicated.
Recharging the battery is recommen-
ded.
When a remaining battery capacity of
- 20% for standard batteries
- 40% for maintenance-free batteries
is reached, the “CAUTION” icon goes
out and a flashing “STOP” icon (16) ap-
pears.
After 5 min., the “STOP” icon box lights
up permanently. Recharging the battery
is recommended.
Battery discharge monitor: When the “STOP” icon is permanently lit, the lifting
function is switched off.
A
The lifting function can only be re-activated, when the connected battery is at least
recharged by 70%.
Operating hour meter: The operating hour meter (18) is integrated in the battery di-
scharge indicator and displays the overall operating time of all driving and lifting mo-
vements.
A
The digit to the right-hand side of the decimal point is flashing when the device is ac-
tive.
h
h
h
STOP
T
T
T
14
15
16
17
18
