4.7 Checking the hydraulic oil level
Checking the hydraulic oil level and
replenishing
Requirements
– Fully lower the load handler.
– Prepare the truck for maintenance and
repairs, see page 154.
Procedure
• Remove the front panel, see page 159.
• Check the oil level in the hydraulic
reservoir (103).
Z

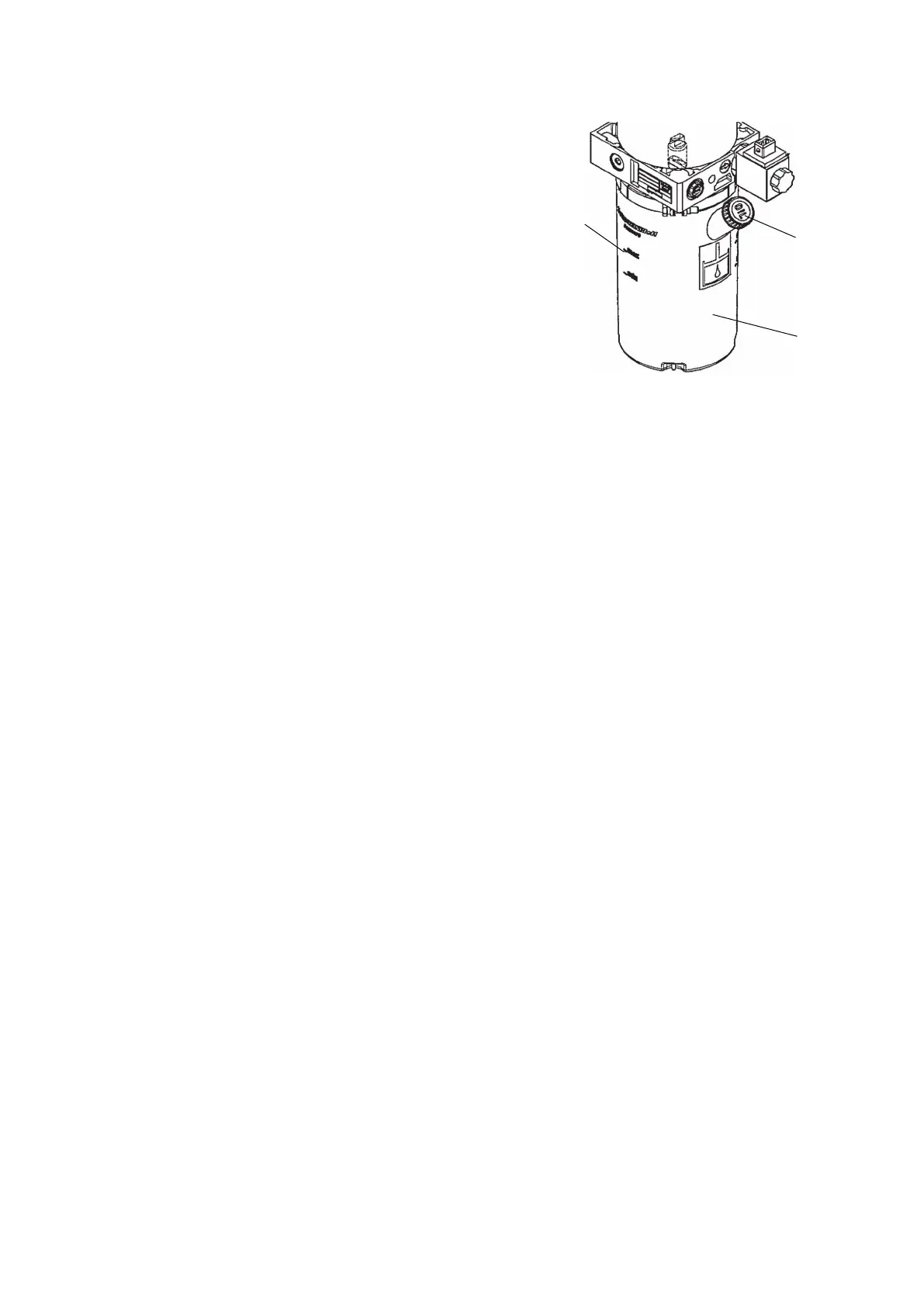

The hydraulic reservoir (103) has two
markings (101). With the load handler
completely lowered, the hydraulic oil level in
the reservoir should lie between the min. and
max. markings (101).
• Add hydraulic oil if necessary:
• Turn the lid (102) anti-clockwise from the hydraulic reservoir (103).
• Add hydraulic oil of the correct grade until the oil level lies between the
markings (see page 153).
• Turn the lid (102) clockwise on the hydraulic reservoir (103).
• Install the front panel, see page 159.
• To restore the industrial truck to service after maintenance or repair work, see
page 168.
The hydraulic oil level is now checked.
Z
If a leak is discovered in the hydraulic system (cylinder; unions, lines), the truck must
be decommissioned and repaired by specialist personnel.
4.7.1 Top up the auxiliary hydraulics on the EJE 220r / 225r
Z
The auxiliary hydraulics of the EJE 220r / 225r is a closed system. The auxiliary
hydraulics must only be replaced or topped up by the manufacturer's customer
service department who are specially trained for this task.
Z
Mini measurement connections on the truck should only be used by the
manufacturer's trained customer service department.
