Juniper CTP2000 Series Hardware Guide

•
Stop bits: 1
•
Flow control: Xon/Xoff
•
Parity: none

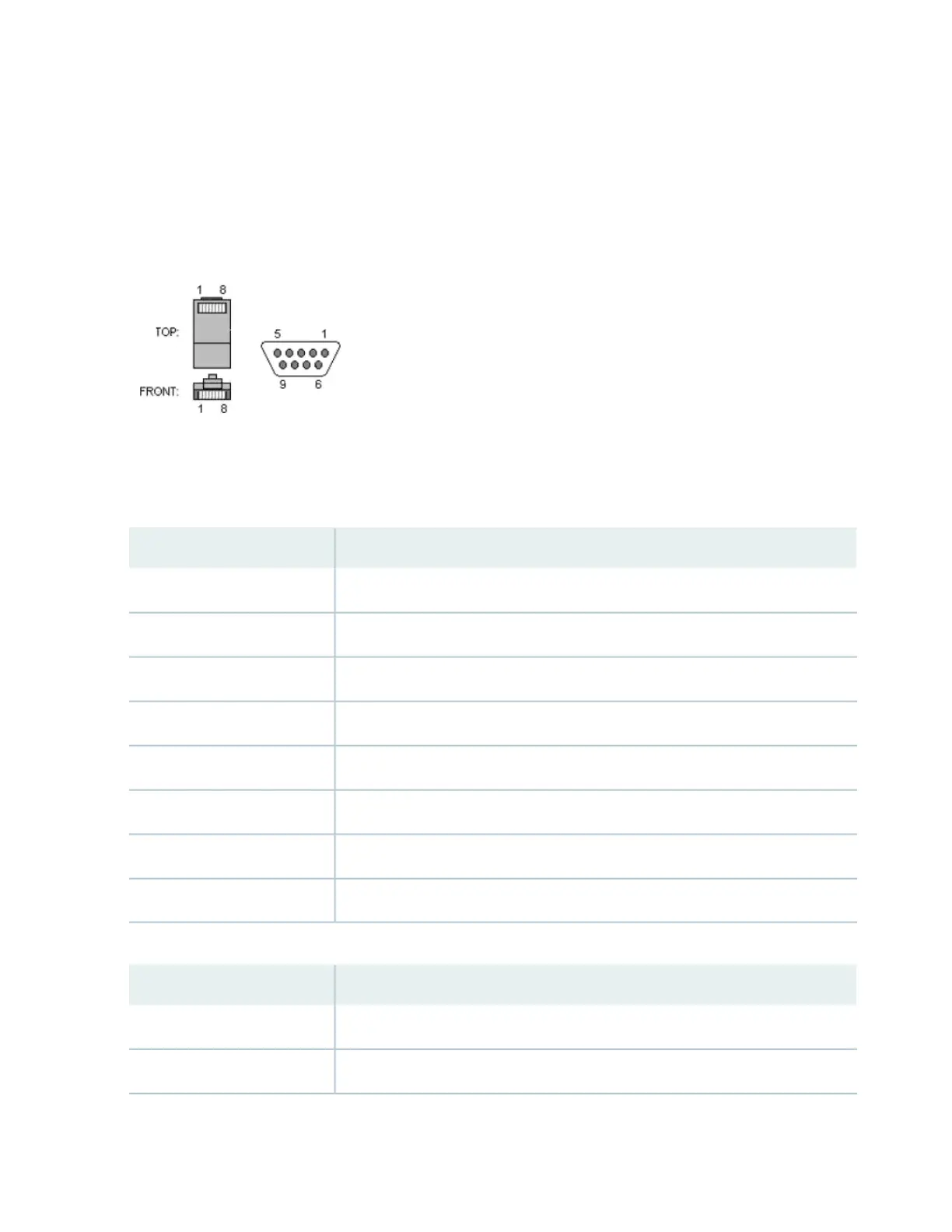

Figure 31: CTP2000 Series Console Cable Pin Configurations for PP310 and PP332 Processors
Table 18 on page 64 and Table 19 on page 64 list console cable pinouts for CTP2000 Series devices based
on the pin configurations.
Table 18: CTP2000 Series Console Cable Pinouts for PP310 and PP332 Processors
Console DB-9 PinCTP RJ-45 Pin
8 CTS1 RTS
6 DSR2 DTR
5 GND3 TXD
2 RXD4 GND
3 TXD5 GND
1 DCD6 (tied to pin 7) RXD
4 DTR7 DSR
7 RTS8 CTS
Table 19: CTP2000 Series Console Cable (p/n 720-071594) Pinouts for the PP833 Processor
DB-9 MaleUSB Console Connector
3 TXD2 RXD
2 RXD3 TXD
64
