Installing or Removing a CTP2000 Series CompactFlash Card
To remove or install the CompactFlash card for the CTP2000serieswith the new PP833
processor:
1. Power off the unit.
2. Remove the PP833 PRC card by unscrewing the retainingscrews and pushing the
extractors outward with the latching buttonsdepressed.
3. You can then remove or install the CompactFlash card inthe flash socket.
4. Reinstall the PP833 PRC card into the chassis, and securethe retaining screws.
To remove or install the CompactFlash card for the CTP2000 series with the PP310 and
PP332 processors:
1. Power off the unit.
2. Remove the processor RTM by unscrewing the retaining screws and pushing the
extractors outward with the latching buttons depressed.
3. Remove the CompactFlash card retaining screw and nut. You can then remove or
install the CompactFlash card in the flash socket (see Figure 7 on page 26).
4. Reinstall the CompactFlash card retaining screw and nut.
5. Reinstall the processor RTM into the chassis, and secure the retaining screws.

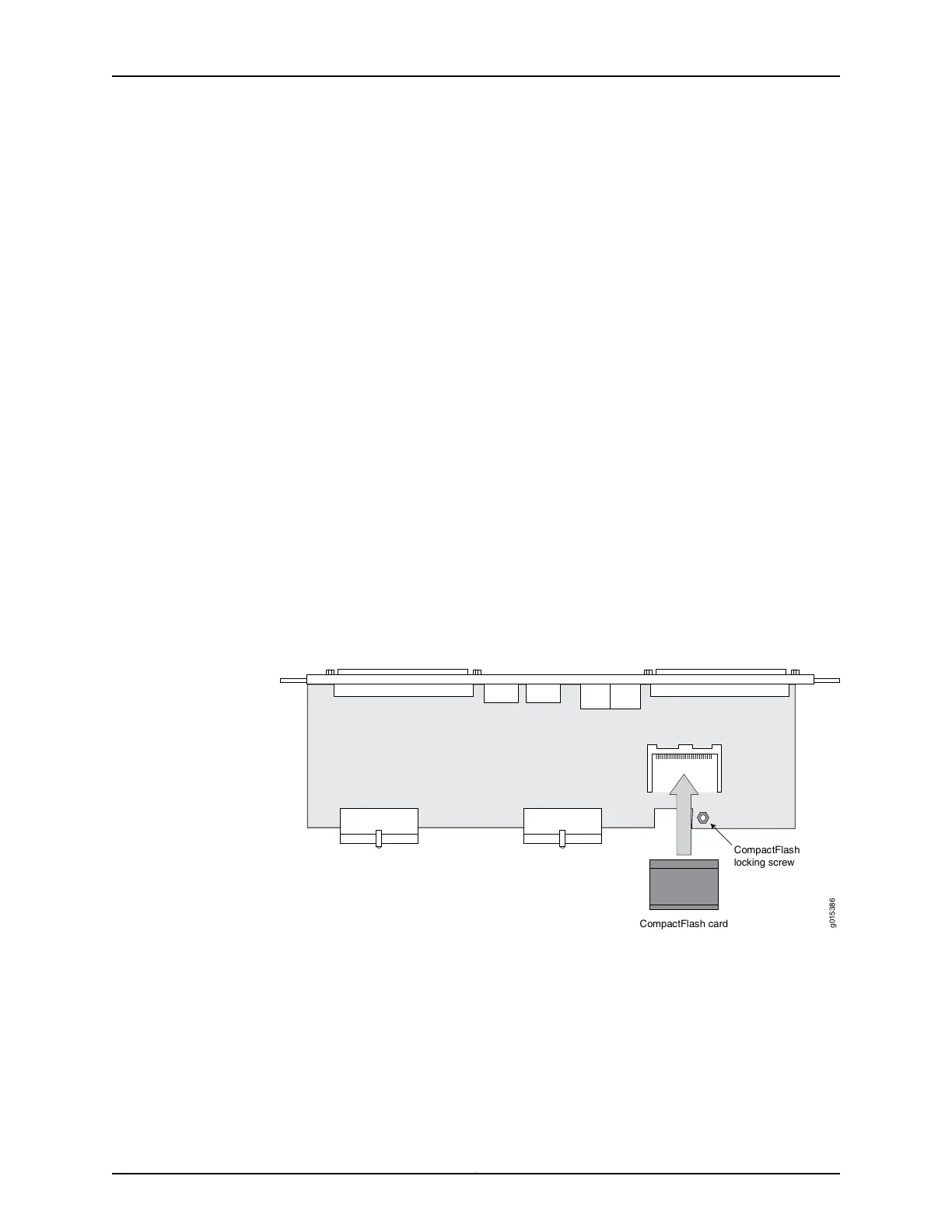

Figure 7: CompactFlash on the RTM
IIIIIIIIIIIIIIIIIIIIIIIIIIIII
CompactFlash card
CompactFlash
locking screw
g015386
Copyright © 2015, Juniper Networks, Inc.26
