CAUTION: Avoid bending ber-opc cable beyond its minimum bend radius. An arc
smaller than a few inches in diameter can damage the cable and cause problems that
are dicult to diagnose.
NOTE: When you install SFP-DD transceivers, push it hard unl you hear a click sound. Use a
long nose plier to pull the SFP-DD transceiver connected on the top and boom rows of the
chassis where the pull tabs face each other.
NOTE: Make sure to use a dust cap to cover ports that are unused.
NOTE: While using Finisar AOC SFP+ opcal module with the QFX5130-48C switch, you
may need to pull the module upwards to pull out the module smoothly from the cage.
NOTE: "

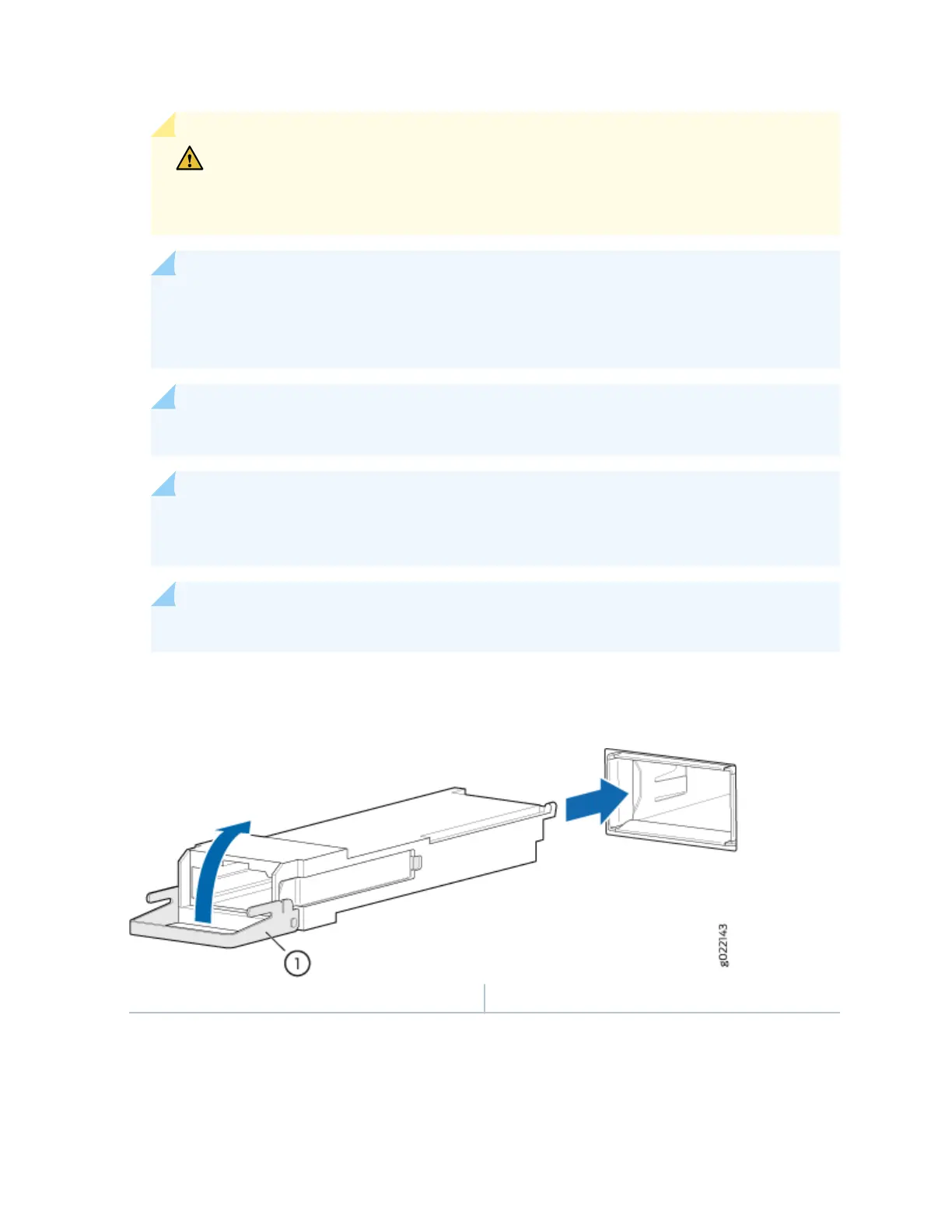

Figure 124: Install a Transceiver
1—
Ejector lever
