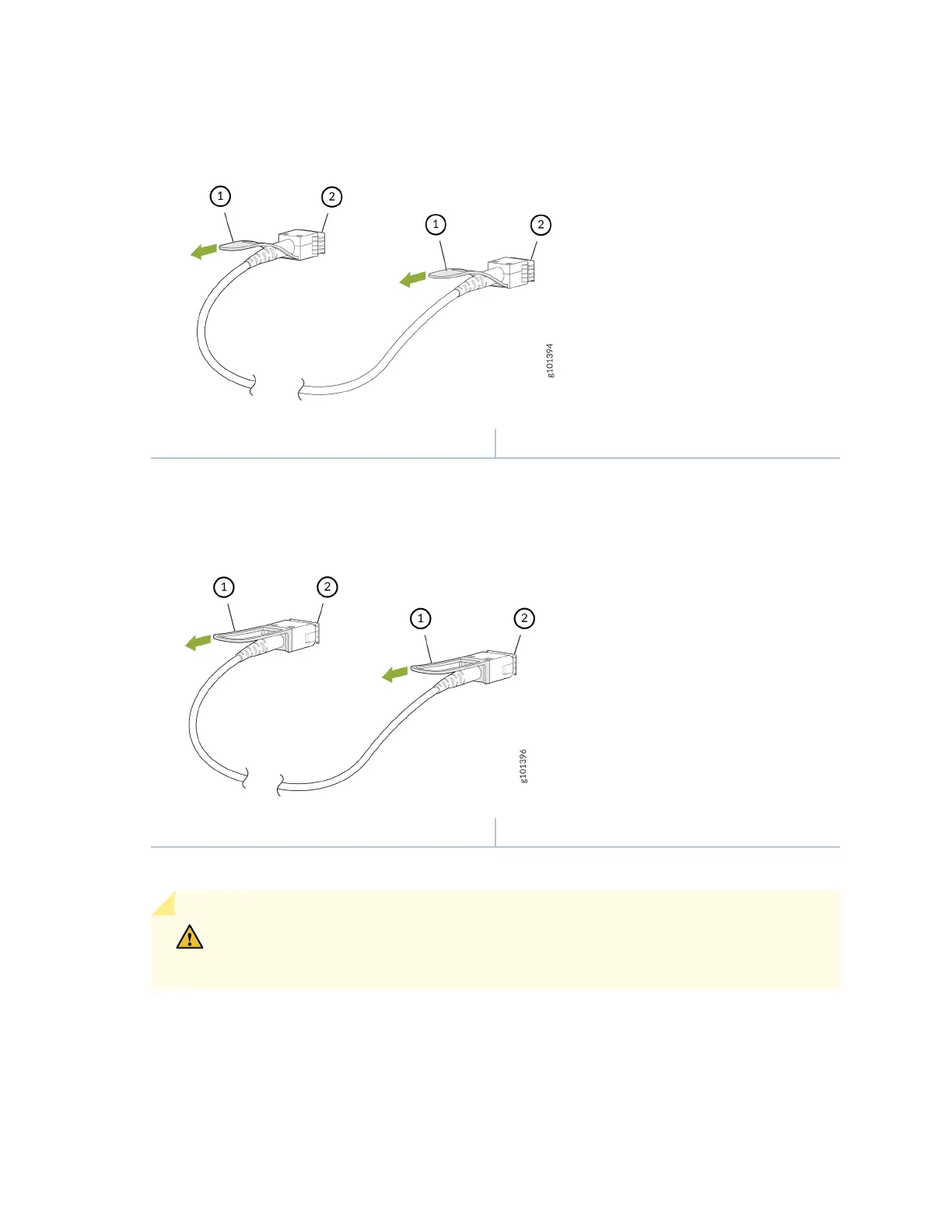

Figure 128: Disconnect an SFP28 or SFP+ Direct Aach Cable
1— Tab to pull the transceiver 2— Port on the device
Figure 129: Disconnect a SFP28, SFP+, or QSFP-DD Direct Aach Cable
1— Tab to pull the transceiver 2— Port on the device
6. Grasp the transceiver and gently slide it approximately 0.5 in. (1.3 cm) straight out of the port.
CAUTION: To prevent ESD damage to the transceiver, do not touch the connector pins
at the end of the transceiver.
7. By using your ngers, grasp the body of the transceiver and pull it straight out of the port.
8. Cover the transceiver with a rubber safety cap.
9. If you are disconnecng the cable from both the ports it is connected to, place the cable in the
anstac bag or on the anstac mat placed on a at, stable surface.
227
