Locating the Serial Number ID Labels on MX10008 Fan Trays and Fan Tray Controllers
The two fan trays and their associated fan tray controllers installed in an MX10008 are field-replaceable
units (FRUs). For each FRU, you must remove the FRU from the router chassis to see the FRU serial number
ID label.
•
Fan tray–The serial number ID label for both fan tray models (JNP10008-FAN and JNP10008-FAN2) is
located on the inside of the fan tray at the base of the fan tray control board. See Figure 167 on page 303.

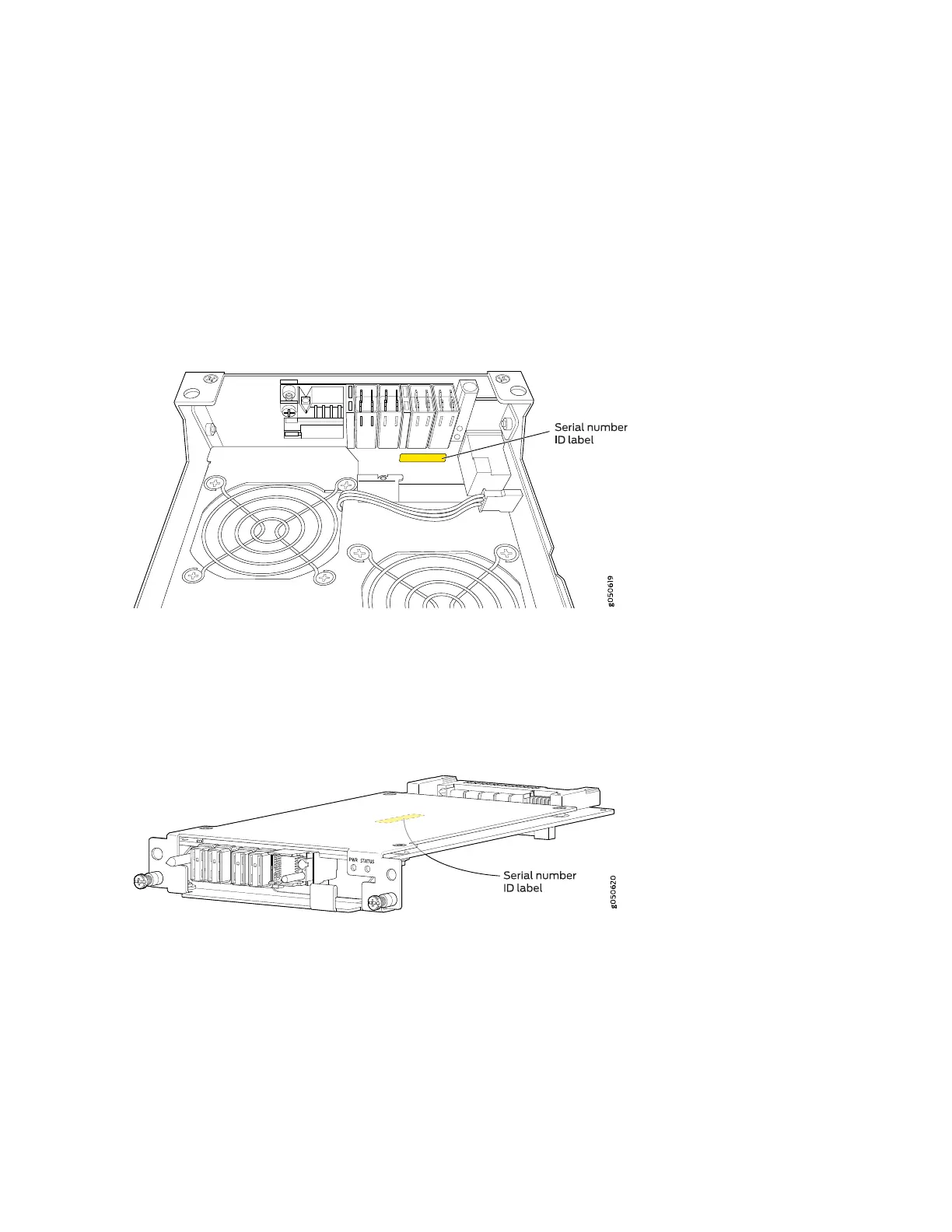

Figure 167: MX10008 Fan Tray Serial Number Location
•
Fan tray controller–The serial number ID label for both fan tray controller models (JNP10008-FAN-CTRL
and JNP10008-FTC2) is located on the top of the fan tray controller. See Figure 168 on page 303.
Figure 168: MX10008 Fan Tray Controller Serial Number Location
Locating the Serial Number ID Labels on MX10008 Routing and Control Boards
The serial number ID label for an RCB is located on the connector end of the unit. See
Figure 169 on page 304.
