Juniper MX10008 - MX10008 Routing and Control Board Components and Descriptions

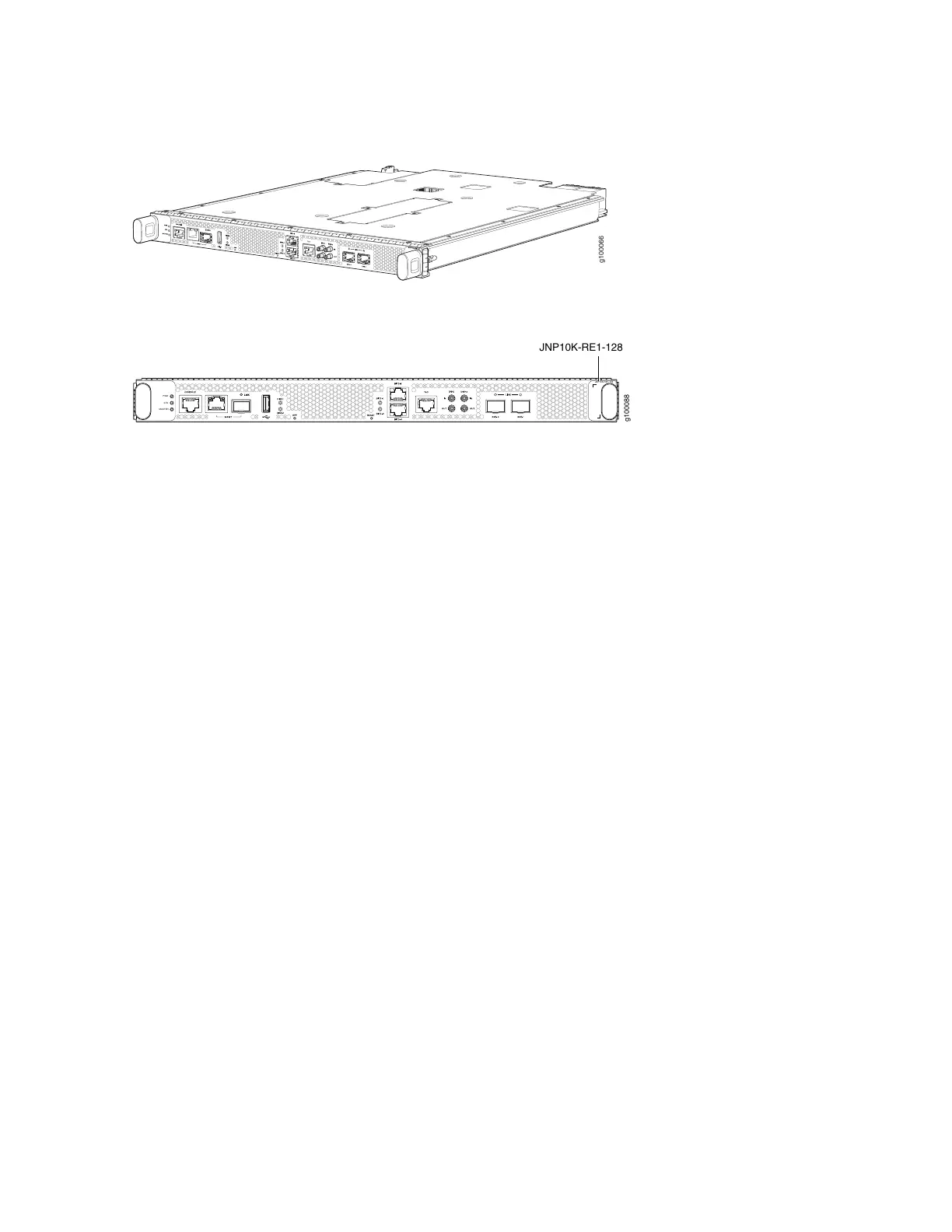

Figure 37: Routing and Control Board
g100066
PWR
STS
MASTER
JNP10K-RE1-128
g100088
JNP10K-RE1-128
This topic covers:
Routing and Control Board Functions
The Routing and Control Board (RCB) integrates the control plane and Routing Engine functions into a
single management unit. Each RCB provides all the functions needed to manage the operation of the
modular chassis:
•
System control functions such as environmental monitoring
•
Routing Layer 2 and Layer 3 protocols
•
Communication to all components such as line cards, Switch Fabric Boards (SFBs), and power and cooling
•
Transparent clocking
•
Alarm and logging functions
