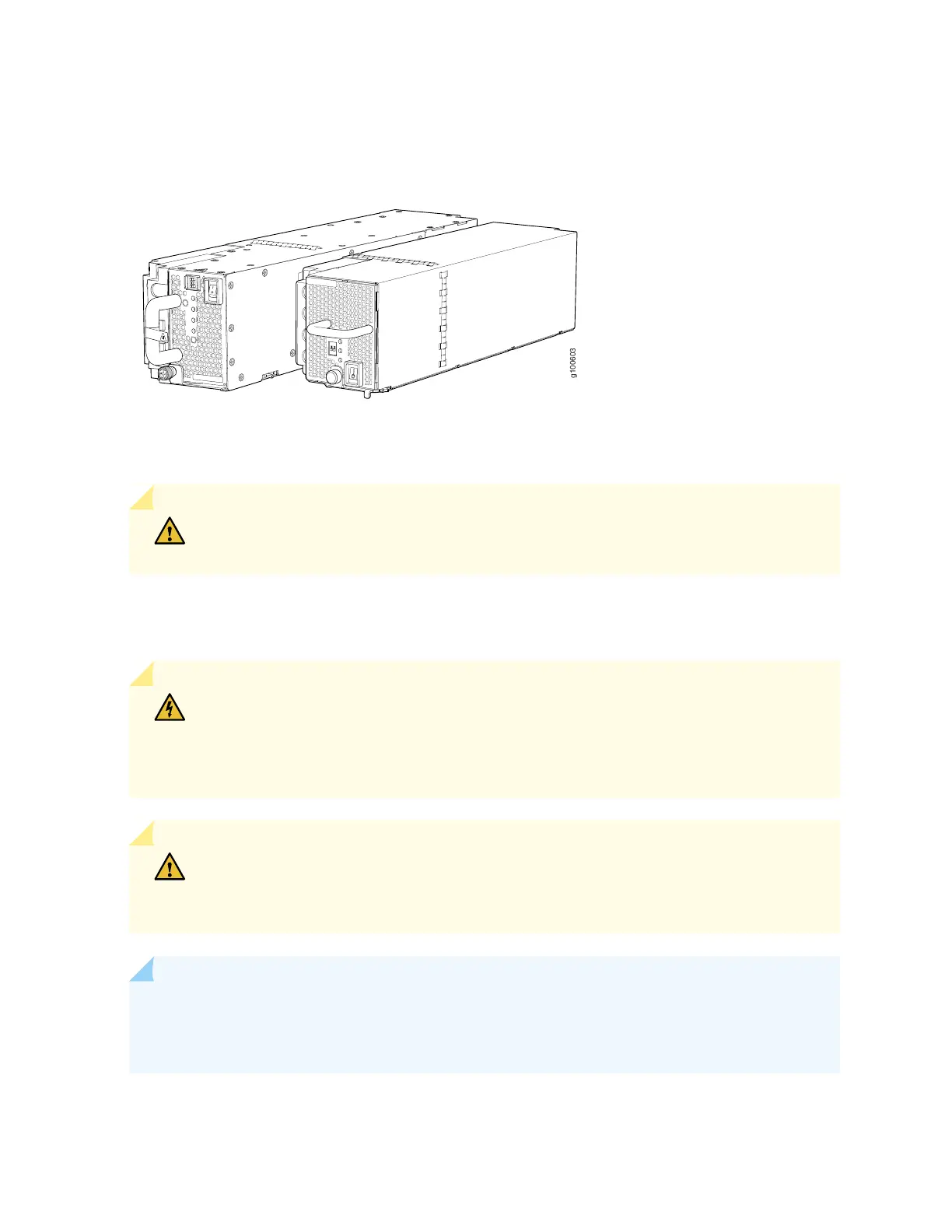

Figure 30: Size Comparison Between JNP10K-PWR-DC2 and JNP10K-PWR-DC Power Supplies
CAUTION: Do not mix power supply models in the same chassis in a running environment.
DC and HVDC can coexist in the same chassis during the hot swap of DC for HVDC.
The DC power supply, JNP10K-PWR-DC, is a 2500-W, 12-VDC, dual input power supply. The output of
each DC power supply is 12-VDC. The output power is 2500 W.
WARNING: The router is pluggable type A equipment installed in a restricted-access
location. It has a separate protective earthing terminal on the chassis that must be
connected to earth ground permanently to ground the chassis adequately and protect
the operator from electrical hazards.
CAUTION: Before you install the router, ensure that a licensed electrician has attached
an appropriate grounding lug to the grounding cable that you supply. Using a grounding
cable with an incorrectly attached lug can damage the router.
NOTE: DC power supplies are shipped only in the redundant configuration of MX10000 routers.
For details about different chassis configurations, see “MX10008 Components and Configurations”
on page 31 and MX10016 Components and Configurations.
