Table 15: Power Input and Output Voltages for JNP10K-PWR-DC2 Power Supplies (continued)
Output Power
H/L (High Input 80 A/Low Input
60A)INP1 (Switch 2)INP0 (Switch 1)
2200 WOff (60 A)OffOn
2200 WOff (60 A)OnOff

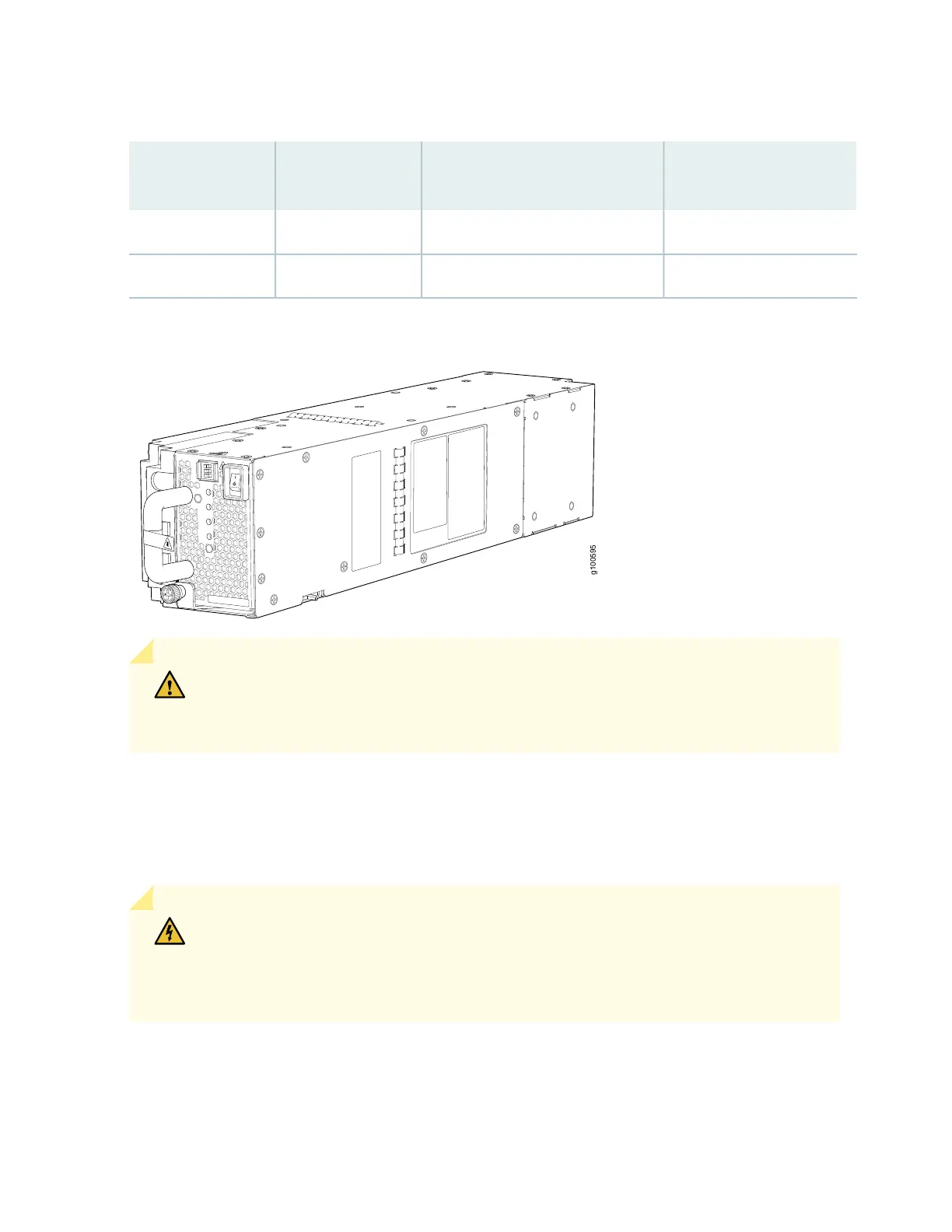

Figure 32: JNP10K-PWR-DC2 Power Supply
CAUTION: Do not mix power supplies models in the same chassis in a running
environment. DC and HVDC can coexist in the same chassis during the hot swap of DC
for HVDC.
All MX10016 router chassis have the enhanced power bus; to determine whether an MX10008 has the
standard or enhanced power bus, see “MX10008 Status Panel LEDs” on page 39. The enhanced bus
supports the full 5500 W available from the JNP10K-PWR-DC2. The standard bus provides 3000 W for
power budget from the power management software.
WARNING: The router is pluggable type A equipment installed in a restricted-access
location. It has a separate protective earthing terminal on the chassis that must be
connected to earth ground permanently to ground the chassis adequately and protect
the operator from electrical hazards.
69
