To remove any model of the PTX10000 fan tray (JNP10008-FAN, JNP10008-FAN2, JNP10016-FAN, or
JNP10016-FAN2:
1. Attach the electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to
the ESD point on the rear left side of the chassis. See Figure 118 on page 260 and Figure 119 on page 260.

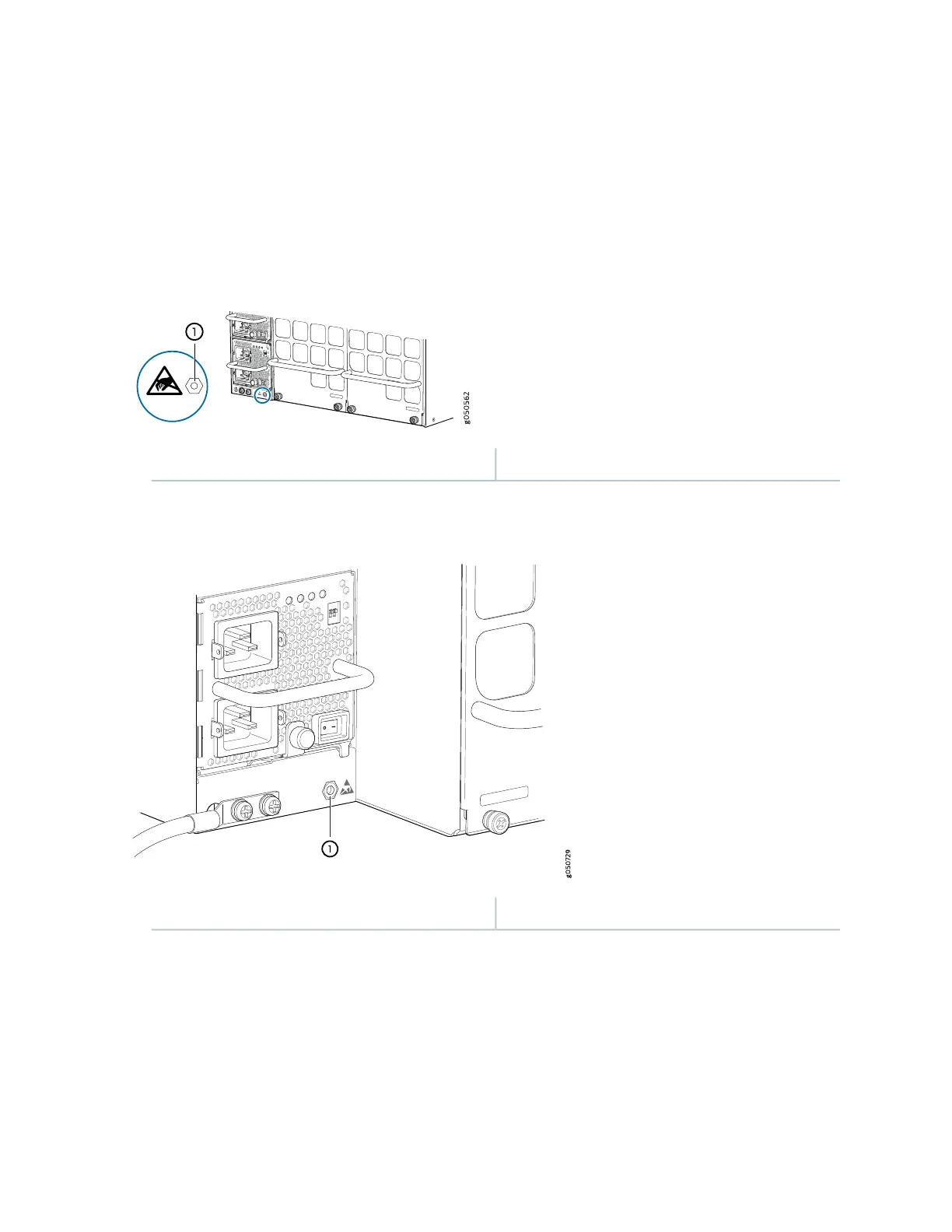

Figure 118: ESD Point on PTX10008 Chassis Rear
1—ESD point
Figure 119: ESD Point on PTX10016 Chassis Rear
1—ESD point
2. Loosen the four captive screws either by unscrewing with your thumb and forefinger or with a Phillips
screwdriver.
3. Grasp the top and bottom handles and pull the fan tray out about 3 in. (7.6 cm). See
Figure 120 on page 261 and Figure 121 on page 262 for the PTX10008 and Figure 122 on page 263 and
Figure 123 on page 264 for the PTX10016.
