Table 10: Fan Tray LEDs on a PTX10000 Router (continued)
DescriptionStateColorName
The right-most SIB behind the right fan
tray is online.
On steadilyGreenSIB 5 status
The beacon feature is enabled. This feature
is enabled using the request chassis
beacon command.
BlinkingGreen
An error has been detected in SIB 5.
Replace the SIB as soon as possible. The
SIB is located behind the right fan tray and
is the right-most SIB in the grouping of 3.
To maintain proper airflow through the
chassis, leave the fan tray installed in the
chassis until you are ready to replace the
SIB.
BlinkingYellow
The SIB is offline.OffNone
Fan Tray Controller LEDs
All models of fan controller have the same LEDs. The fan tray controller LEDs are only visible when the
associated fan tray is removed. The fan tray controller LEDs are located on the right of the controller panel.

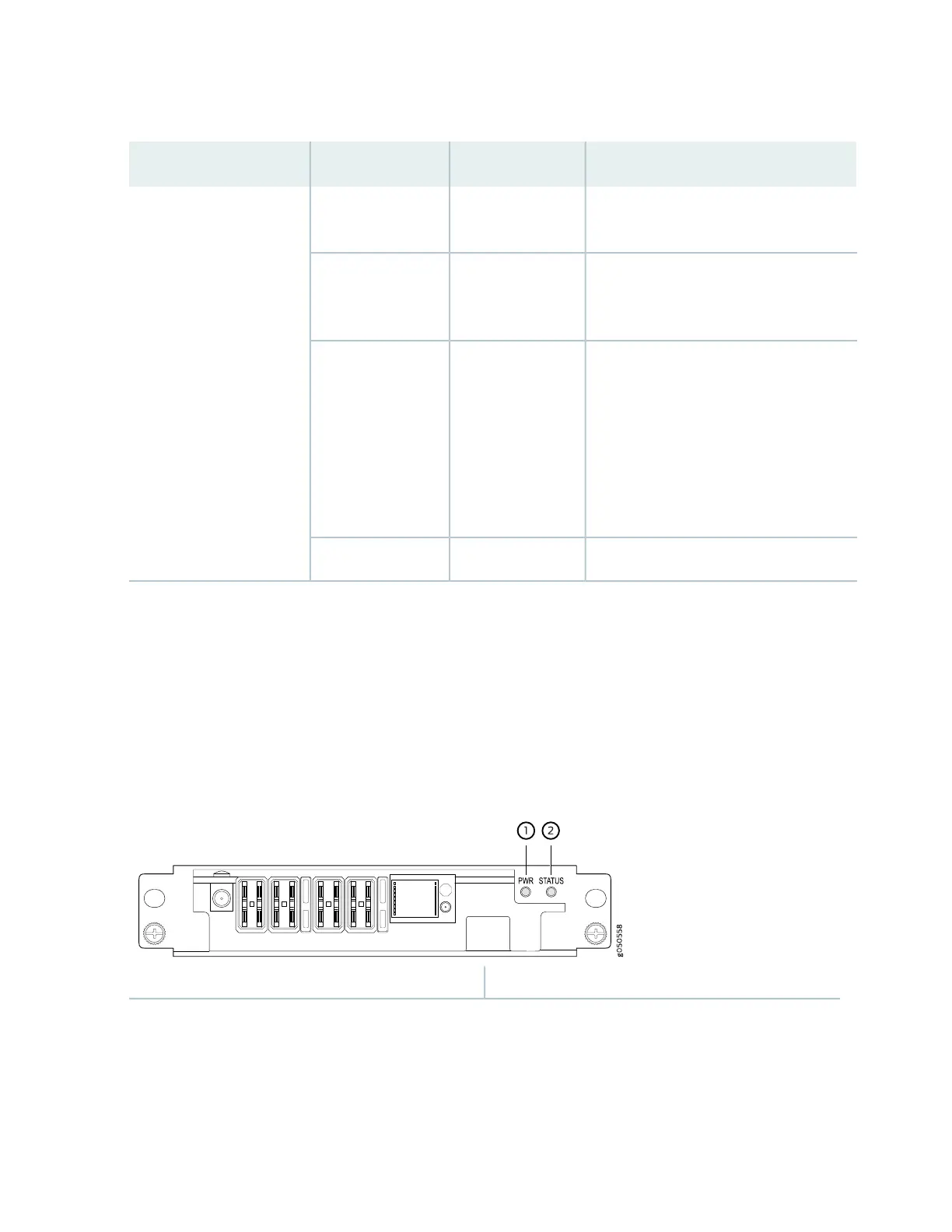

Figure 26 on page 59 shows the location of the LEDs on the JNP10008-FAN-CTRL or the JNP10008-FCT2
fan tray controller panel.
Figure 26: Fan Tray Controller LEDs on a PTX10000
2—1— Fan tray controller statusFan tray controller power
Table 11 on page 60 describes the functions of the fan tray controller LEDs.
