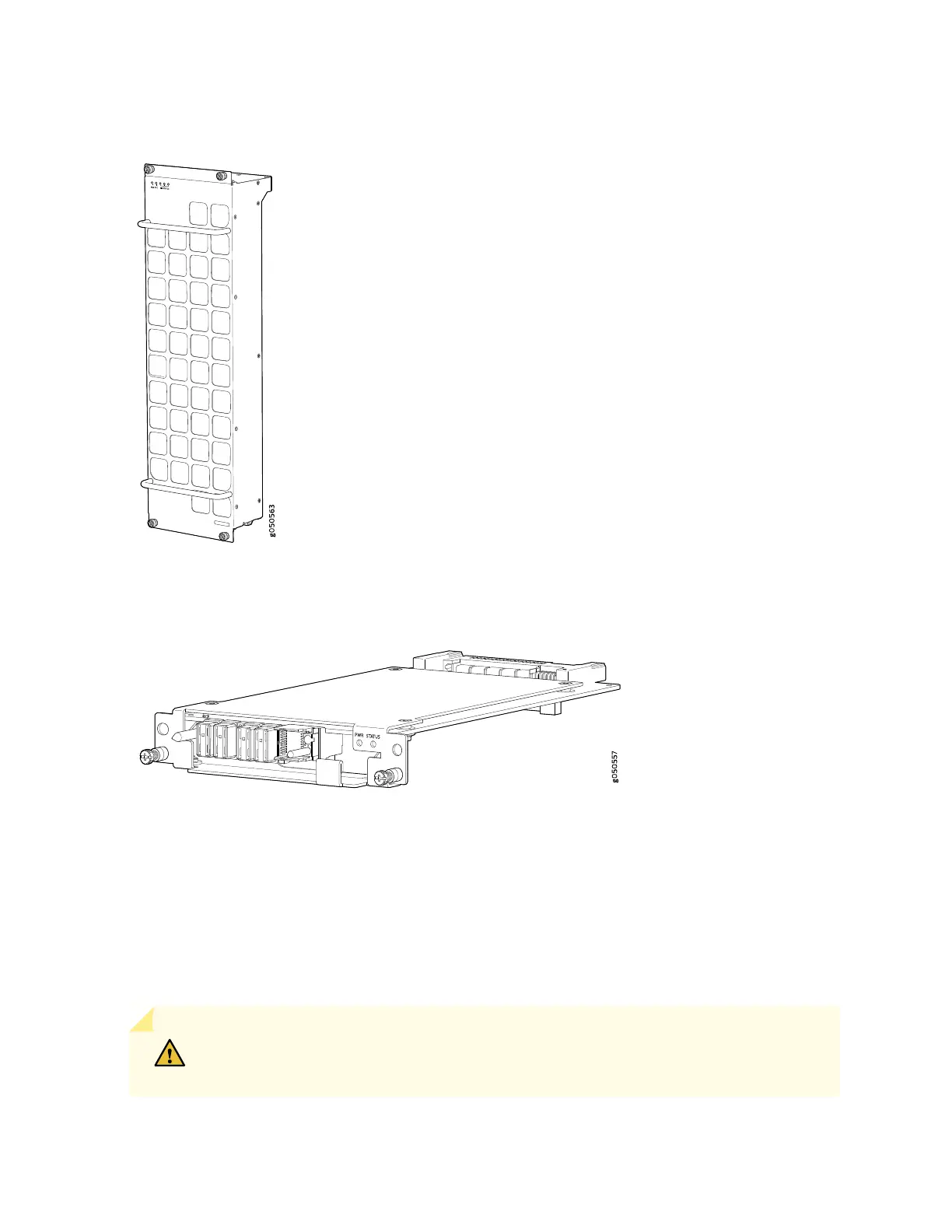

Figure 8: Fan Tray JNP10008-FAN
Figure 9: Fan Tray Controller JNP10008-FAN-CTRL
Power Supplies
Power supplies for the PTX10008 router are fully redundant, load-sharing, and hot-removable and
hot-insertable FRUs. Each PTX10008 router with a base configuration has three power supplies; redundant
configurations hold a maximum of six AC, high-voltage alternating current (HVAC), DC, or high-voltage
direct current (HVDC) power supplies. Each power supply has an internal fan for cooling. See
Figure 10 on page 33 through Figure 13 on page 34 .
CAUTION: Do not mix power supply models in the same chassis in a running environment.
DC and HVDC can coexist in the same chassis during the hot swap of DC for HVDC.
