Table 13: Power Input and Output Voltages for JNP10K-PWR-DC2 Power Supplies
Output Power
H/L (High Input 80 A/Low Input
60A)INP1 (Switch 2)INP0 (Switch 1)
5500 WOn (80 A)OnOn
4400 WOff (60 A)OnOn
2750 WOn (80 A)OffOn
2750 WOn (80 A)OnOff
2200 WOff (60 A)OffOn
2200 WOff (60 A)OnOff

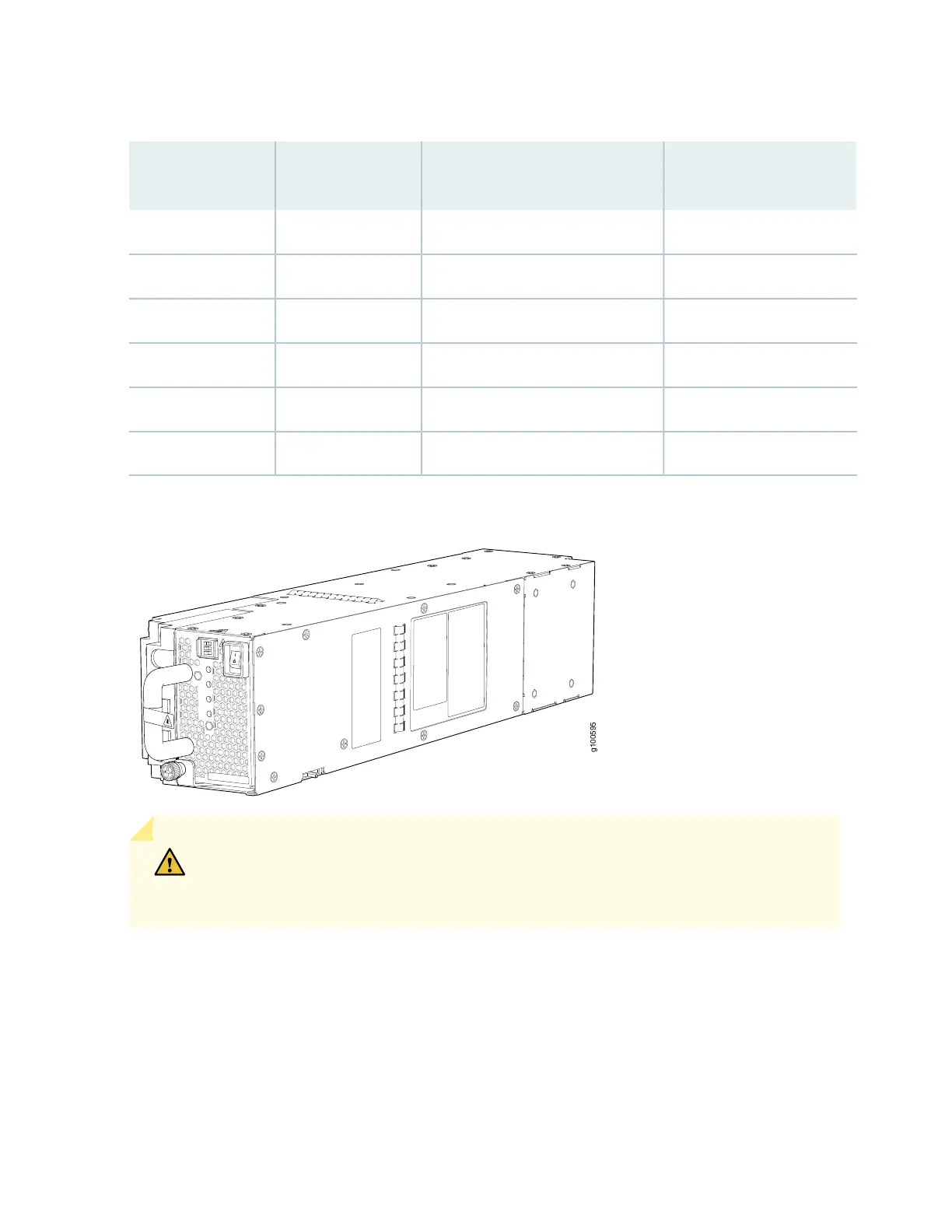

Figure 32: JNP10K-PWR-DC2 Power Supply
CAUTION: Do not mix power supplies models in the same chassis in a running
environment. DC and HVDC can coexist in the same chassis during the hot swap of DC
for HVDC.
To determine whether your system has the standard power bus or the enhanced power bus, see “PTX10000
Status Panel LEDs” on page 41.
