SSG 500 M Series Hardware Installation and Configuration Guide
58 Replacing an Air Filter

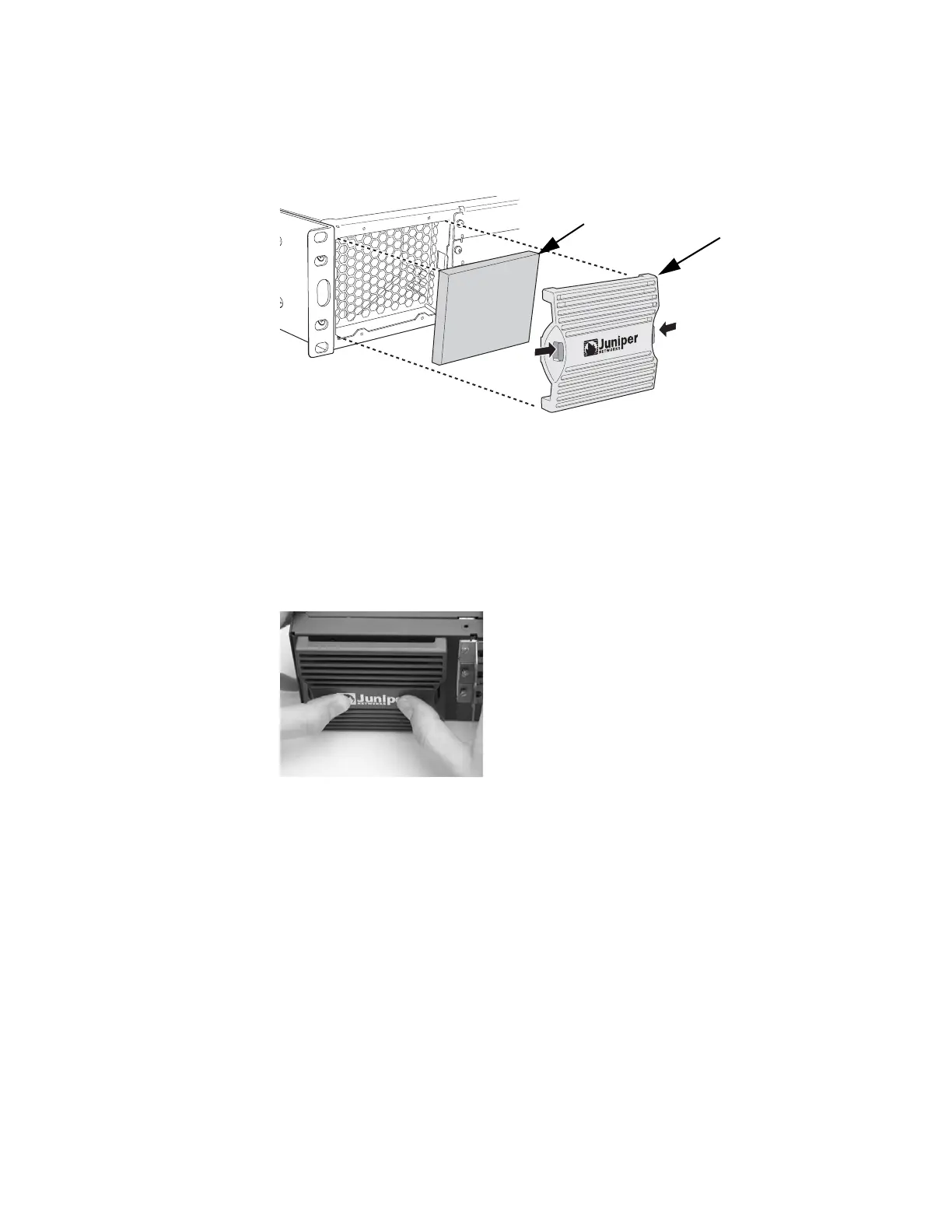

Figure 29: Air Filter Components
2. Pull the filter cover away from the chassis.
3. Remove the old filter.
4. Place the new filter in the opening.
5. With your thumbs, push the front of the filter cover adjacent to each plastic tab
until you hear each side click into place as shown in Figure 30.
Figure 30: Securing the Filter Cover
POWER
P
O
WER
STA
TUS
ALARM
HA
RESET
CONFIG
PORT 0
STATUS
Filter cover
Air filter
Plastic tab
Plastic tab
