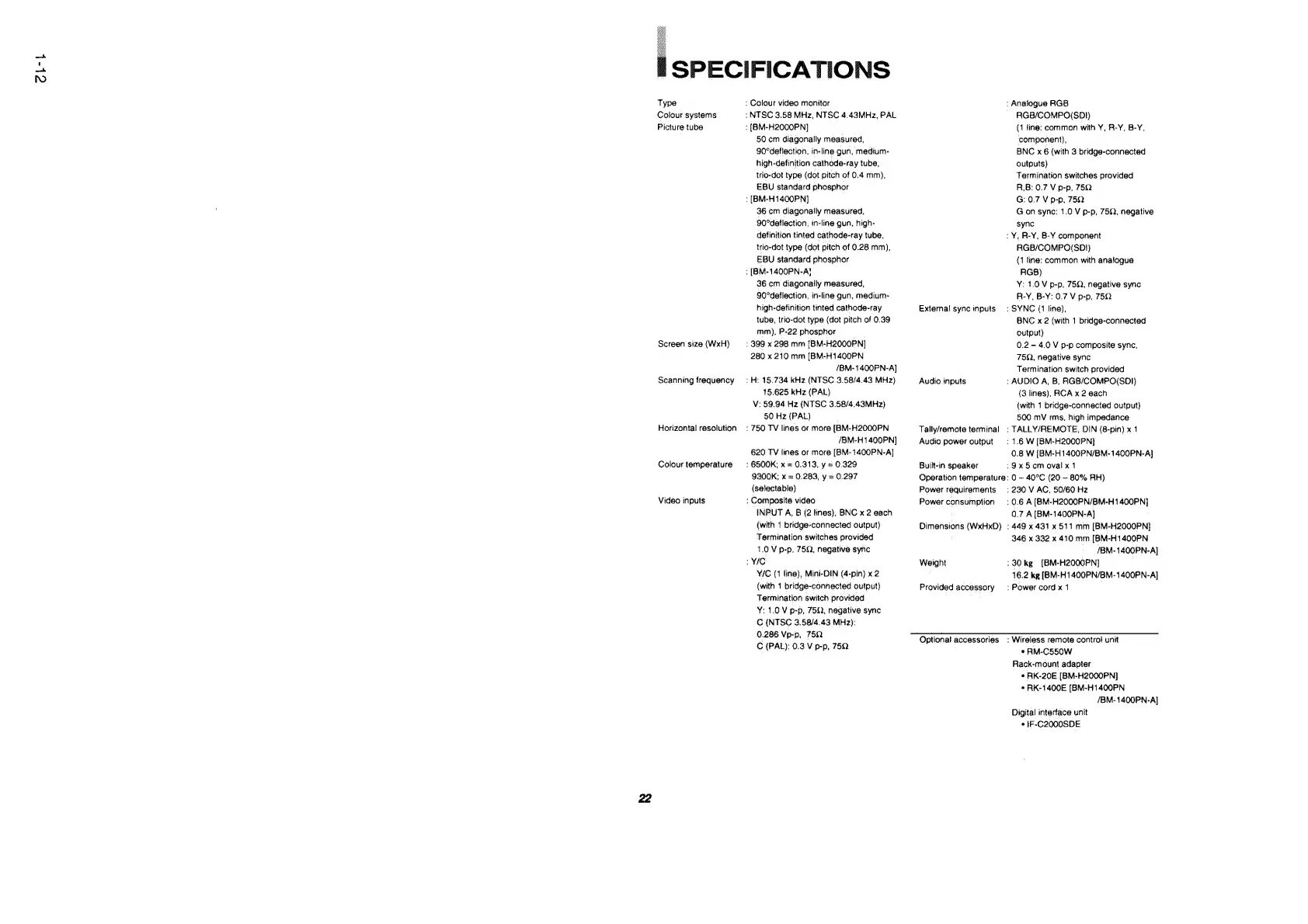

JVC BM-H2000PN

Cb-t
Type
Colour systems
Picture tube
Screen size (WxH)
Scanning frequency
Horizontal resolution
Colour temperature
Video inputs
: Colour video monitor
‘NTSC 3.58 MHz, NTSC 4.43MHz, PAL
: [BM-H2000PN]
50 cm diagonally measured,
90°deflection, in-line gun, medium-
high-definition cathode-ray tube,
trio-dot type (dot pitch of 0.4 mm),
EBU standard phosphor
: [BM-H1400PN]
36 cm diagonally measured,
90°detlection; in-line gun, high-
definition tinted cathode-ray tube,
trio-dot type (dot pitch ef 0.28 mm),
EBU standard phosphor
: [BM-1400PN-A}
36 cm diagonally measured,
90°deflection, in-line gun, medium-
high-definition tinted cathode-ray
tube, trio-dot type (dot pitch of 0.39
mm), P-22 phosphor
- 399 x 298 mm [BM-H2000PN]
280 x 210 mm (BM-H1400PN
/BM-1400PN-A]
> H: 15.734 kHz (NTSC 3.58/4.43 MHz)
18.625 kHz (PAL)
V: 59.94 Hz (NTSC 3.58/4.43MHz)
50 Hz (PAL)
: 750 TV lines or more [BM-H2000PN
/BM-H1400PN]
620 TV lines or more [BM-1400PN-A]
: BSO00K; x = 0.313, y = 0.329
9300K; x = 0.283, y = 0.297
(selectable)
: Composite video
INPUT A, B (2 lines), BNC x 2 each
(with 1 bridge-connected output)
Termination switches provided
1.0 V p-p, 75Q, negative sync
»YIC
Y/€ (1 line), Mini-DIN (4-pin) x 2
(with 1 bridge-connected output)
Termination switch provided
¥: 1.0 V p-p, 7502, negative sync
C (NTSC 3.58/4.43 MHz):
0.286 Vp-p, 75Q
C (PAL): 0.3 V p-p, 75Q
External sync inputs
Audic inputs
Tally/ramote terminal
Audio power output
Built-in speaker
: Analogue RGB
— RGB/COMPO(SDI)
(1 line: commion with Y, R-Y, B-Y,
component),
BNC x 6 (with 3 bridge-connected
outputs)
Termination switches provided
R,B: 0.7 V p-p, 75
G: 0.7 V p-p, 7522
G on syne: 1.0 V p-p, 7522, negative
sync
/Y¥, R-Y, B-Y component
RGB/COMPO(SDI)
(1 line: common with analogue
RGB)
¥: 1.0V p-p, 75Q, negative sync
R-Y, B-Y: 0.7 V p-p, 75Q
: SYNE (1 line),
BNC x 2 (with 1 bridge-connected
output}
0.2 - 4.0 V p-p composite sync,
75Q, negative sync
Termination switch provided
: AUDIO A, B, RGB/COMPO(SDI)
(3 lines), RCA x 2 each
(with 1 bridge-connectead output)
500 mV ims, high impedance
- TALLY/REMOTE, DIN (8-pin) x 1
: 1.6 W [BM-H2000PN}
0.8 W [BM-H1400PN/BM-1400PN-A]
:9x5cem oval x 1
Operation temperature: 0 — 40°C (20 - 80% RH)
Power requirements
Power consumption
Dimensions (WxHxD)
Weight
Provided accessory
Optional accessories
: 230 V AC, 50/60 Hz
- 0.6 A [BM-H2000PN/BM-H1 400PN}
0.7 A[BM-1400PN-A] :
: 449 x 431 x 511 mm (BM-H2000PN]
346 x 332 x 410 mm [BM-H1400PN
- /BM-1400PN-A]
:30 kg [BM-H2000PN] |
16.2 kg [BM-H1400PN/BM- 1400PN-A]
: Power cord x 1 |
: Wireless remote control unit
° RM-C550W
Rack-mount adapter
¢ AK-20E [BM-H2000PN]
* RK-1400E [BM-H1400PN
/BM-1400PN-A]
Digital interface unit
+ IF-C2000SDE
