3.1.3 Removing the tuner
(See Fig.7)
• Remove the metal cover.
(1) From the back side of the main body, remove the two
screws E attaching the tuner to the rear panel.
(2) Take out the tuner from the main body and disconnect the
card wire from the connector CN1
on the tuner.

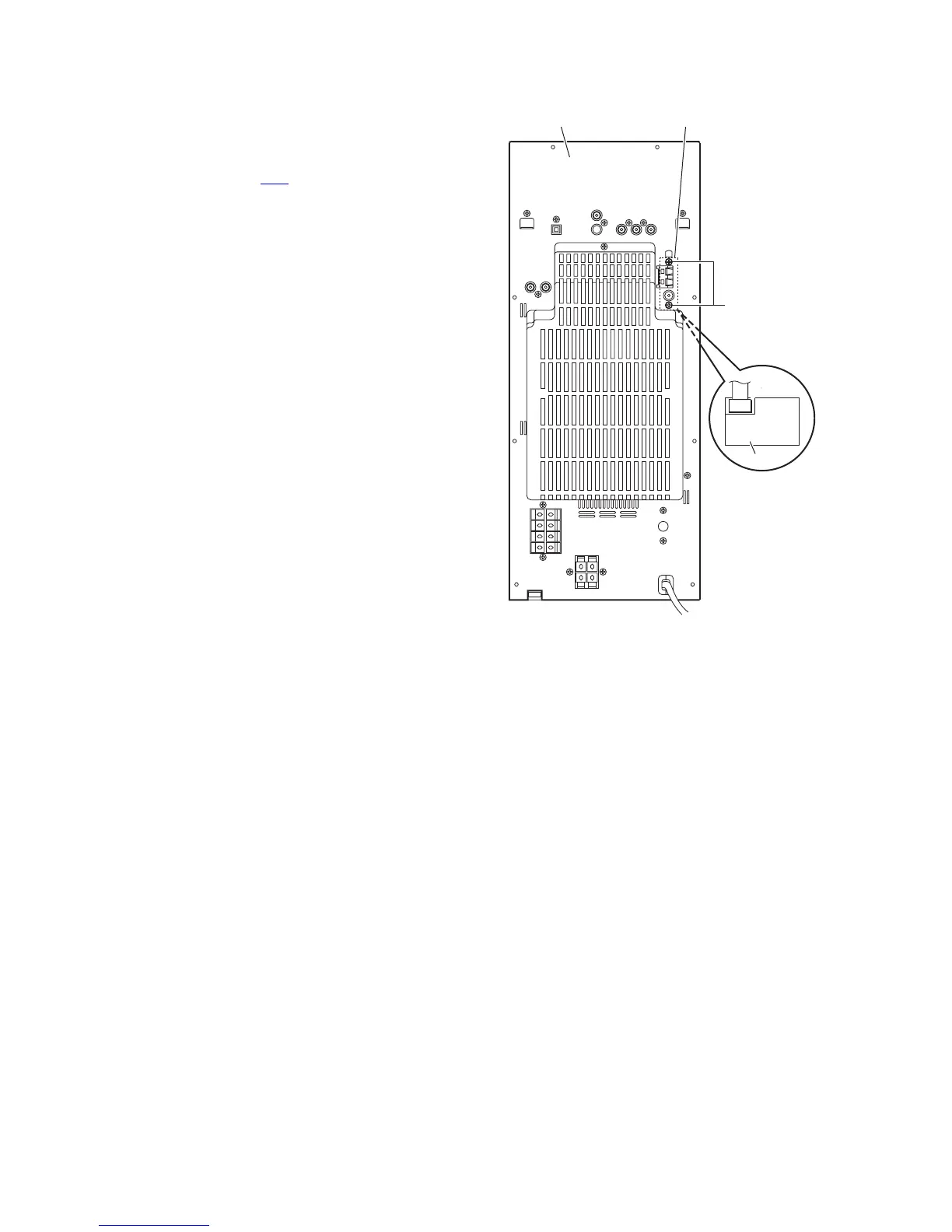

Fig.7
Rear panel Tuner
Tuner
CN1
E
