3.6 Subwoofer section (For DX-T9, DX-T7)
3.6.1 Removing the front panel assembly
(See Fig.1)
Insert the tip of a flat-bladed screwdriver or similar tool into the
space between the subwoofer main body and front panel assem-
bly, and lift the front panel assembly little by little to remove the
sections a.
Note:
To prevent damaging the front panel assembly and subwoofer
main body, insert cushioning plates etc. into the space be-
tween the subwoofer main body and front panel assembly.

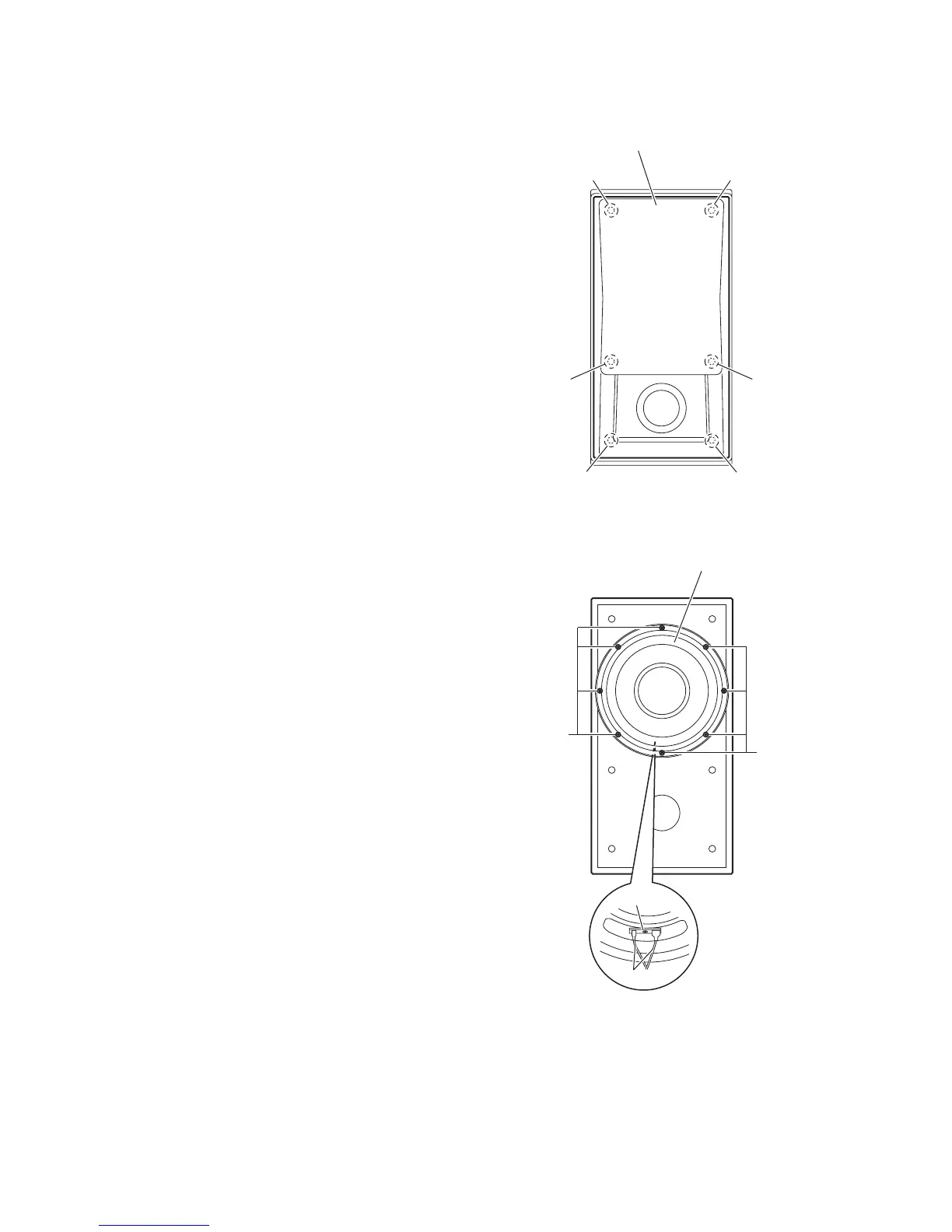

Fig.1
3.6.2 Removing the woofer
(See Fig.2)
• Remove the front panel assembly.
(1) From the front side of the subwoofer main body, remove
the six screws A attaching the woofer.
(2) Take out the woofer from the subwoofer main body and
disconnect the wires from the terminal on the back side of
the woofer.
Fig.2
Front panel assembly
aa
a
a
a
a
Woofer
A
Terminal
Wires
A
