3.5.2 Removing the front panel assembly
(See Figs.2 and 3)
• Remove the speaker net assembly as required.
(1) Insert the tip of a flat-bladed screwdriver or similar tool into
the space between the speaker main body and front panel
assembly, and lift the front panel assembly little by little to
remove the sections b. (See Fig.2.)
Note:
To prevent damaging the front panel assembly and
speaker main body, insert cushioning plates etc. into the
space between the speaker main body and front panel
assembly.
(2) From the inside of the front panel assembly, disconnect the
wires from the terminals of the tweeter. (See Fig.3.)

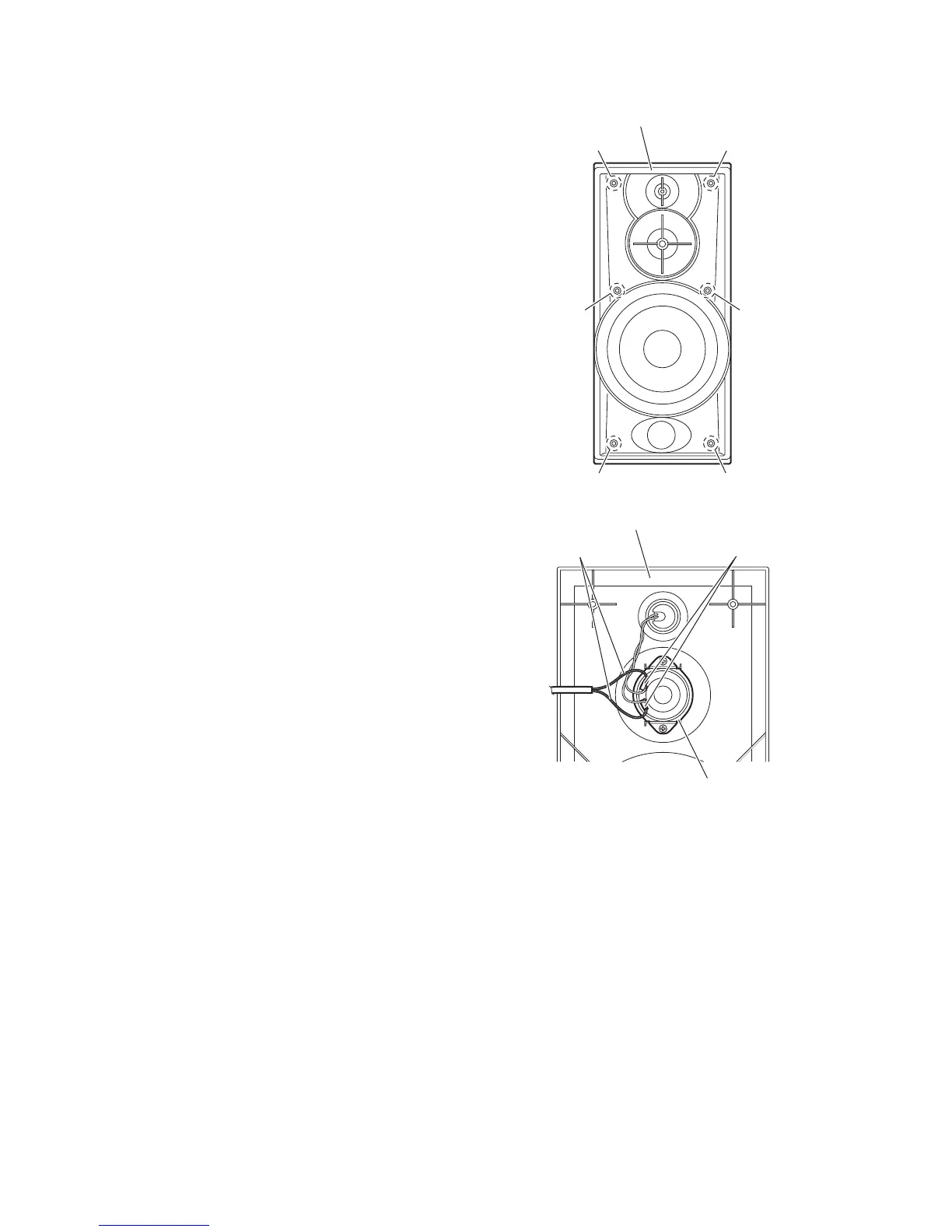

Fig.2
Fig.3
Front panel assembly
bb
b
b
b
b
Terminals
Wires
Tweeter
Front panel assembly
