JVC GR-DVF11U Service Manual

1-6
5
D
B
G
H
E
C
LUG WIRE
MONITOR
ASSY
NOTE9
NOTE9
17
(S1)
LUG WIRE
LUG WIRE
NOTE10
CAP (REAR JACK)
20
(S1)
19
(S1)
NOTE11
18
(S4)
17
(S1)
F
✽

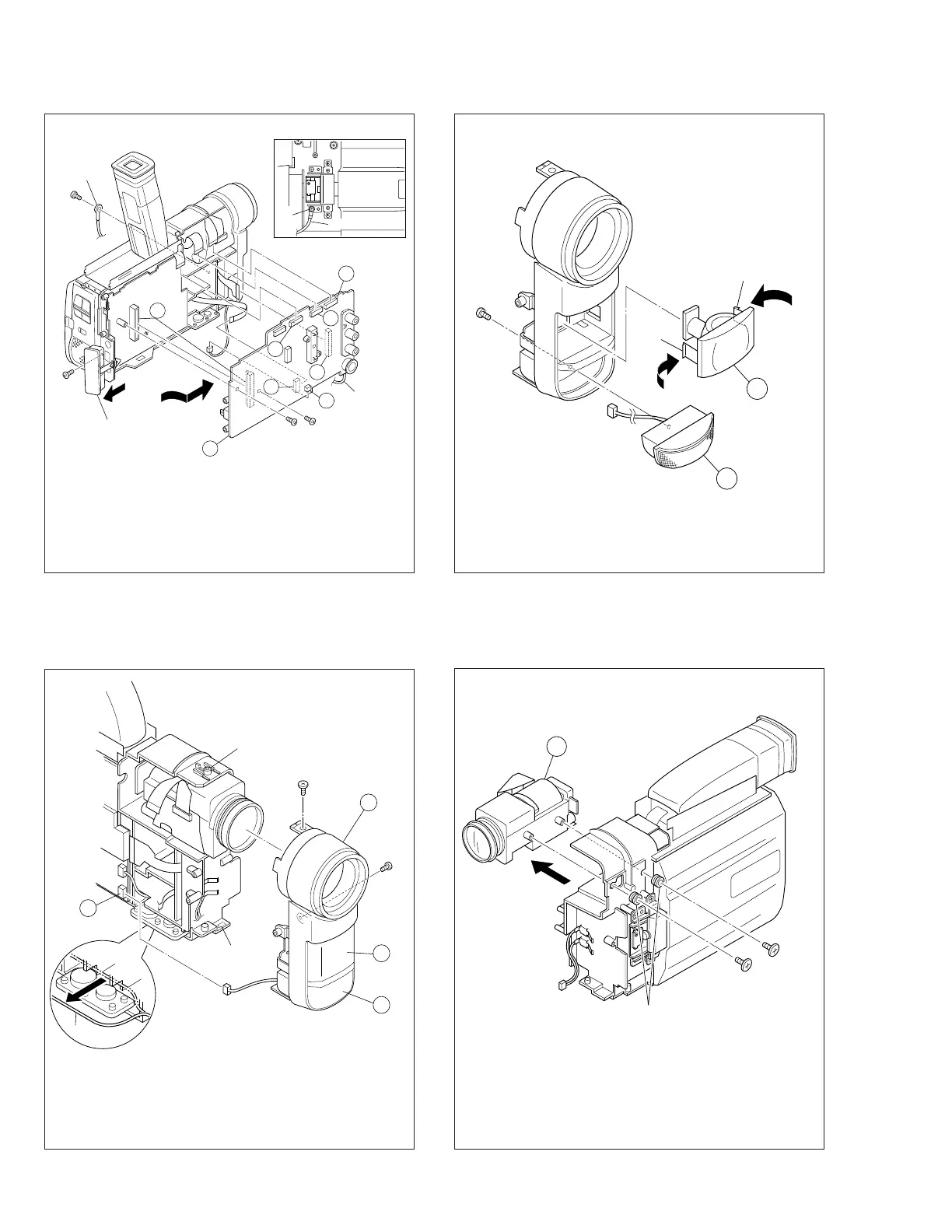

Fig. 1-3-6
6 Front cover assembly (including 7 MIC / 8 DC light
assembly)
Fig. 1-3-8
Fig. 1-3-9
5 MAIN board assembly 7 MIC / 8 DC light assembly
9 OP (optical) block assembly
Fig. 1-3-7
✽ : 0.07N·m (0.7kgf·cm)
Note
9: Remove the lug wire fastened together with the
bracket (monitor).
Note 10: Remove the cap (rear jack) before proceeding to
the removing work.
Note 11: DC light assembly (in the GR-DVF21U/DVF31U
only).
21
(S1)
22
(S5)
(L8)
8
6
7
(L9)
NOTE12
WIRE(MIC)
NOTE11
J
23
(S1)
(L10)
(L11)
8
7
NOTE 11
9
25
(S6)
24
(S6)
CUSHION
(
OP
)
NOTE 13
Note 13: For disassembling the OP block Assembly, refer
to "1-4 DISASSEMBLY/ASSEMBLY OF OP
BLOCK ASSEMBLY"
Note 11: DC light assembly (in the GR-DVF21U/DVF31U
only).
Note 12: When reassembling, set the microphone wire in
the groove (gap) between the frame and base.
Note 11: DC light assembly (in the GR-DVF21U/DVF31U
only).
