1. Alignment tape
To be used for check and adjustment of interchangeability
of the mechanism.
2. Guide driver
To be used to turn the guide roller to adjustment of the
linarity of playback envelope.
3. Torque driver
Be sure to use to fastening the mechanism and exterior
parts because those parts must strictly be controlled for
tightening torque.
4. Bit
This bit is slightly longer than those set in conventional
torque drivers.
5. Chip IC replacement jig.
To be used for replacing chip IC“s and other chip parts.
6. INF adjustment lens
To be used for adjustment of the camera system.
7. Color bar chart
To be used for adjustment of the camera system.
8. Gray scale chart
To be used for adjustment of the camera system.
9. White balance chart
To be used for adjustment of the camera system.
(for white balance adjustment)
10. INF lens holder
To be used together with the camera stand (11) for
operating the VideoMovie in the stripped-down condition
such as the status without the exterior parts or for using
commodities that are not yet conformable to the
interchangeable ring.
17

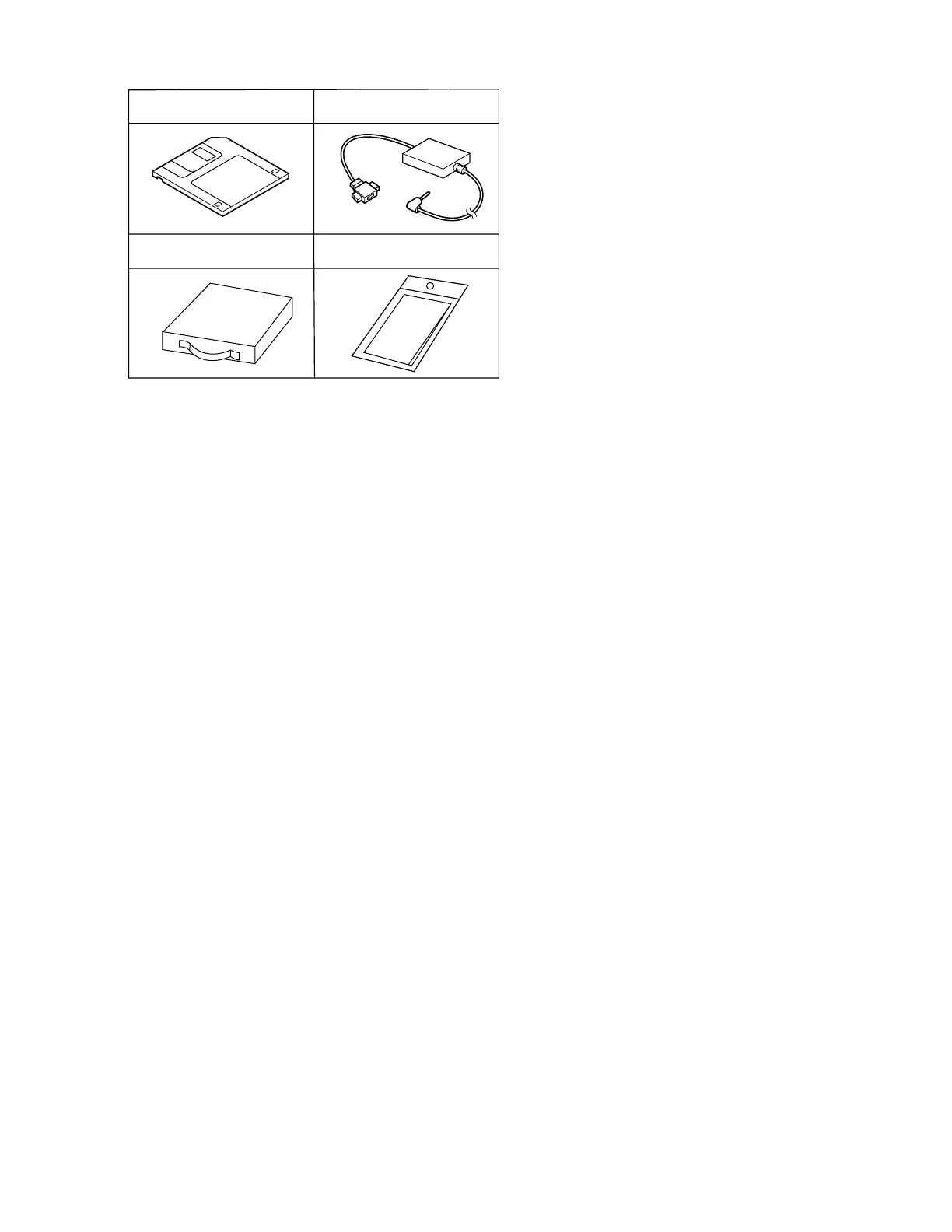

CLEANING CLOTH
KSMM-01
15 16
SOLDERING KIT
YTU96016B
18
PC CABLE
QAM0099-002
SERVICE SUPPORT SYSTEM
YTU94057-41
11. Light box
To be used for adjustment of the camera system.
12. Camera stand
To be used together with the INF adjustment lens holder.
13. Patch cord
To be used to connect electrical parts, P.C. boards, etc.
for servicing.
14. Jig connector cable
Connected to CN105 of the main board and used for
measuring error rates, etc.
15. Service support system
To be used for adjustment with a personal computer.
16. PC cable
To be used to connect the VideoMovie and a personal
computer with each other when a personal computer is
used for adjustment.
17. Soldering kit
Thin head is made so that it can be inserted into small
spaces.
18. Cleaning cloth
Recommended cleaning cloth to wipe down the video
heads, mechanism (tape transport system), optical lens
surface.
1.2.2 Equipments required for adjustments
1. Parsonal computer (For Windows)
2. Color TV monitor
3. Oscilloscope (dual-trace type, for more than 100 MHz).
4. DIGITAL BOLT meter
5. DC power supply
6. Frequency counter
7. AC Power Adapter/DC Cord
