JVC GR-DVF11U Service Manual

2-7
3
(W1)
(W1)
(W1)
4
(S2)
5
(S1)
6
(S1)
1
2
Slide deck assembly
/Main deck assembly
Note 2
Note 4
Note 2
Note 4
Note 3
Note 3
Fig. M1
Fig. M2

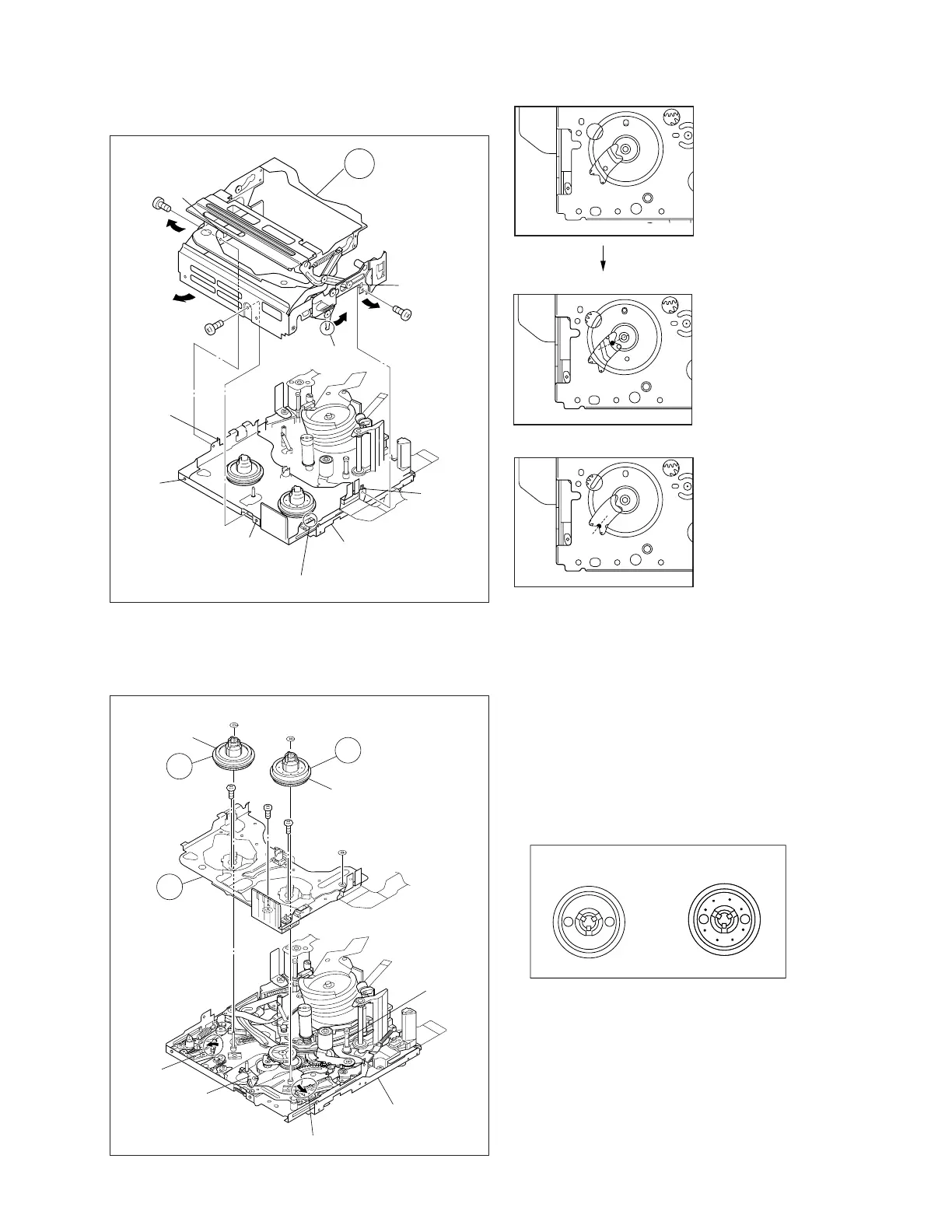

2.2.5 Disassembling/reassembling
1.
A Cassette housing assembly
2
(S1)
3
(S1)
Cassette
housing
assembly
1
(S1)
Slide deck assembly
/Main deck assembly
(L2)
(L1)
(L1)
(L3)
Note 29
(L4)
(L2)
A
Note 28
2. 1 Reel disk (SUP) assembly
2 Reel disk (TU) assembly
3 Reel cover assembly
Note 1:
Shift the mechanism mode
from the STOP mode to the
EJECT mode.
Note 28:
Reassemble the cassette
housing assembly to the
mechanism as the cancel le-
ver is moved in the direction
of the arrow.
Note 29:
When reassembling the cas-
sette housing to the mecha-
nism, make sure that there is
no deformation in the frame
or no damage to the switches,
etc.
Note 30:
After reassembling the
component parts, check
the mechanism operation
in the PLAY mode.
For details of checking
method, refer to “2.2.8
Reassembling slide deck
assembly and main deck
assembly”.
<STOP mode>
<EJECT mode>
<PLAY mode>
Note 2:
When removing the reel disk assembly, be careful not to break
the brake pad which applies lateral pressure to the reel disk.
Note 3:
Be careful not to make a mistake in installing the reel disk.
The SUP reel disk and TU reel disk can be distinguished from
each other by the appearance as shown below.
Note 4:
When removing the reel cover assembly, pay heed to the guide
arm assembly. For, the guide arm assembly is just inserted
into the slide deck assembly from the upside and it is apt to
come off after the reel cover assembly is removed.
(SUP) (TU)
