JVC GR-DVF11U Service Manual

1-13
1.6.2 Disassembly/assembly of COLOR VF
Note 1: When remove the color VF, leave the hinge as-
sembly (VF), bracket (VF) and VF case (L) as
they are fitted to the VF. For remove the hinge
assembly (VF) and bracket (VF), refer to the ex-
ploded view (section 5).
1. Raising the VF assembly, remove two screws (1, 2) and
then remove the eyepiece assembly.
2. Remove two screws (3, 4) and then remove the VF case as-
sembly (U) while unhooking it from L1 and L2.
Note 2: When assembling, pay careful attention to the FPC
not to break it.

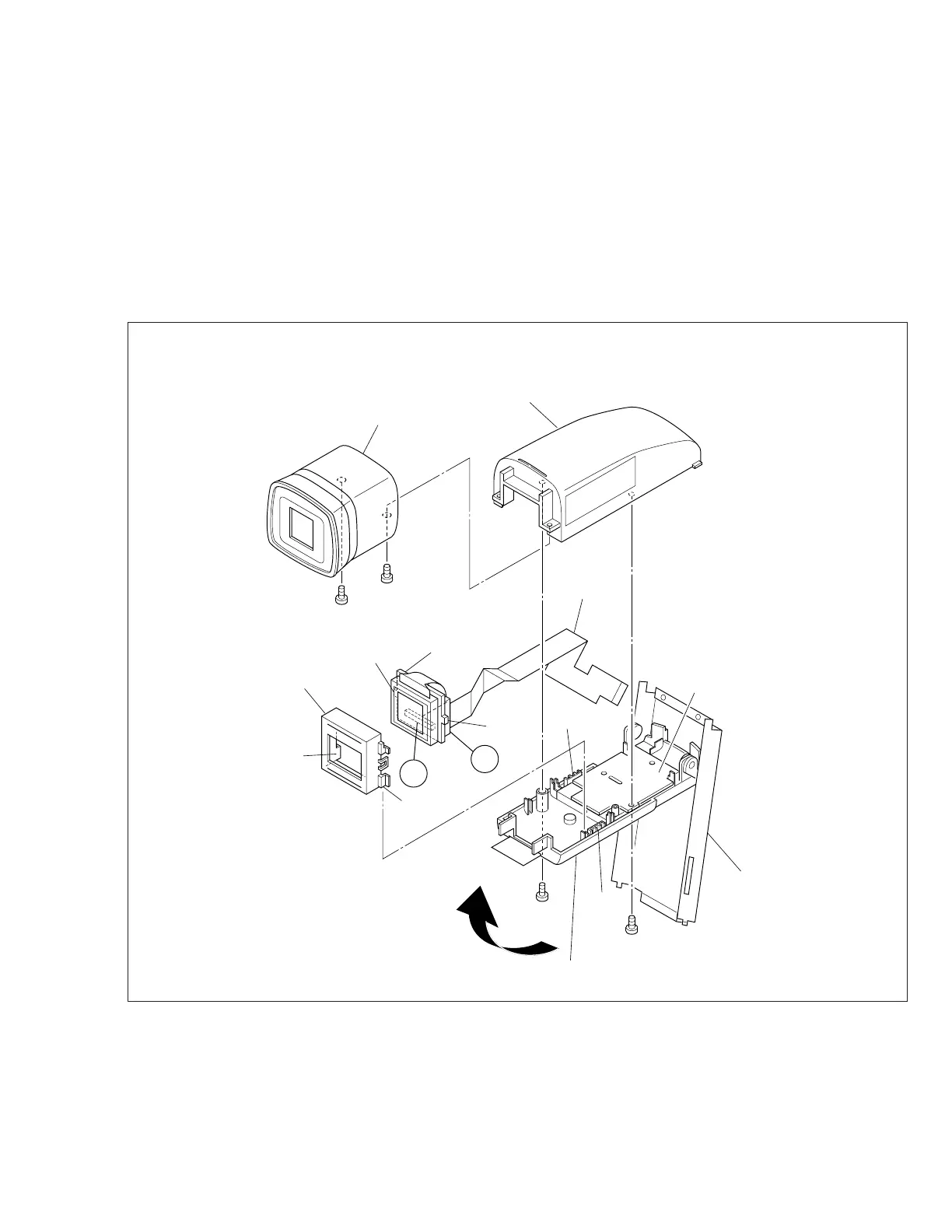

Fig. 1-6-2
3. While holding the holder (LCD) by hand, remove the VF
BL board assembly.
Note
3: When assembling, set the bosses (L3, L4) of the
holder (LCD) in the groove.
4. While unhooking the holder (LCD) from the hooks (L5, L6)
on both sides, remove the holder.
HINGE ASSY(VF)
VF CASE(L)
VF CASE(U)
EYE PIECE ASSY
1
(S20)
(L4)
(L3)
(L2)
BRACKET(VF)
HOLDER(LCD)
FPC
VF BL BOARD
ASSY
✽
4
(S20)
✽
3
(S20)
✽
2
(S20)
✽
Y
Z
(L6)
(L5)
(L1)
✽ : 0.07N·m (0.7kgf·cm)
