2-15
2.2.8 Reassembling slide deck assembly and main deck assembly

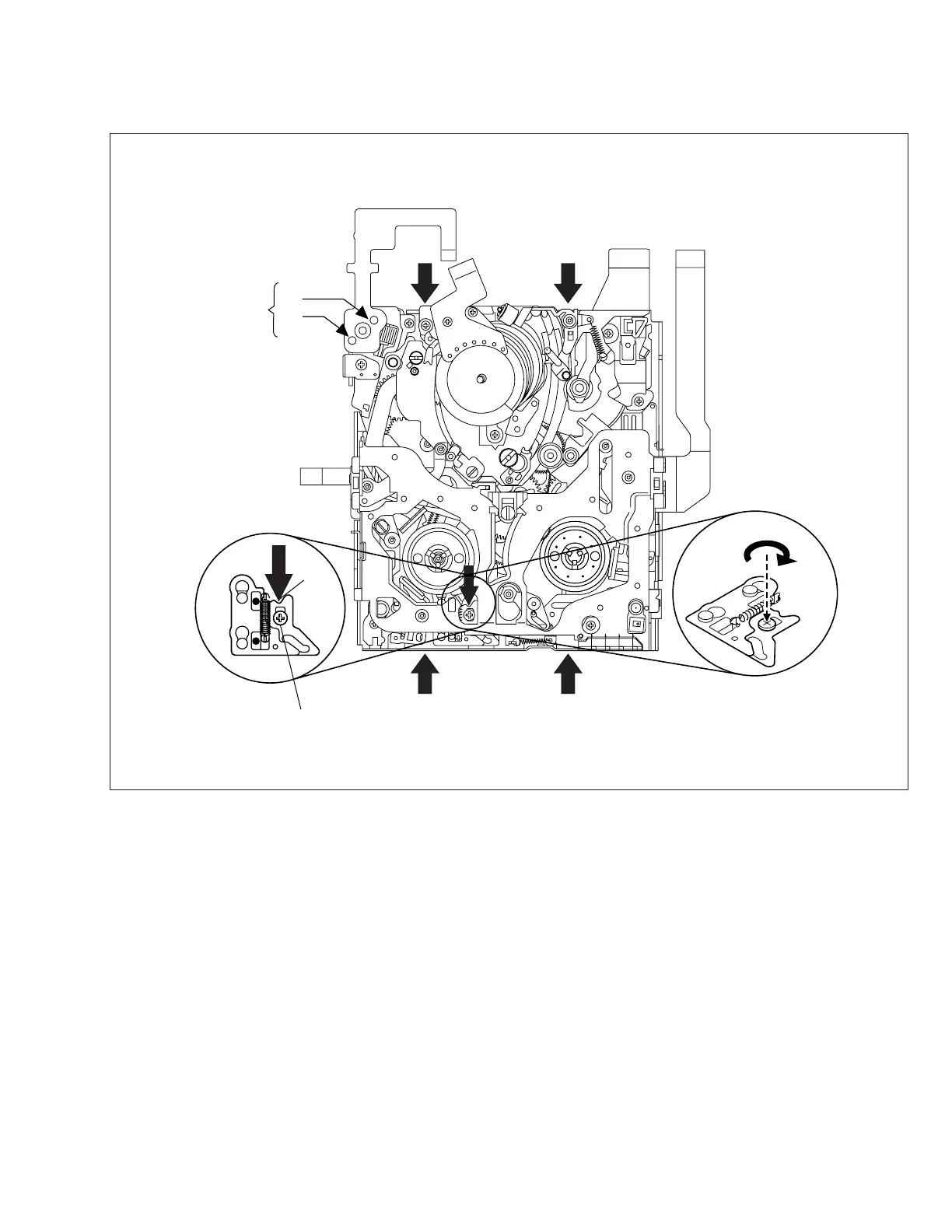

Fig. 2-2-14
Reassembling procedure
1. Loosen the screw A.
2. Set the mechanism in the PLAY mode. (Refer to page 2-2.)
3. Press the end face B of the slide deck assembly (reel disk
side) and the end face C of the main deck assembly
(drum assembly side) with uniform force so that the two
assemblies are tightly pressed to each other. Furthermore,
press the part D and tighten the screw A.
Note :
Tightening torque for screw
A
: 0.03 N·m (0.3 kgf·cm)
3
2
3
3
1,4
3
3
œ
Œ
CC
D
A
BB
To Next Page
