JVC GR-DVF11U Service Manual

1-4
1
1
(S1)
2
(S1)
(L1)
1 UPPER CASE(2) Fig.1-3-2 2(S1), (L1) –
2 UPPER CASE(1) Fig.1-3-3 (S1), (L2) NOTE1,2
3 TOP COVER Fig.1-3-4 (S1), 2(S2), (L1), (L3), 2(L4) NOTE3,4
4 LOWER CASE ASSY Fig.1-3-5 5(S1), 3(S2), 2(S3), (L5), (L6) NOTE 5,6,7,8
(L7) CN ACAP (HOOD)
CAP (RCA)
5 MAIN BOARD ASSY Fig.1-3-6 3(S1), (S4), CN B , C , D , NOTE 9,10,11
E , F , G ,H
CAP (REAR JACK)
FRONT COVER ASSY
(INCL. MIC/DC Fig.1-3-7 (S1), (S5), (L8), (L9), CN J NOTE11,12
LIGHT ASSY)
7 MIC/DC LIGHT Fig.1-3-8 (S1), (L10), (L11) NOTE 11
8 ASSY
9 OP BLOCK ASSY Fig.1-3-9 2(S6) NOTE13
0 MONITOR ASSY Fig.1-3-10 3(S1), (L1) NOTE14,15
- E.VF ASSY Fig.1-3-11 2(S1), (S7) NOTE16,17
= FRAME ASSY Fig.1-3-12 4(S1), (L3) CN K –
~ JUNCTION BOARD Fig.1-3-13 (S8), (S9), (L12), (L13) NOTE18,19
ASSY CN L , M , N , O
! SECOND BOARD Fig.1-3-14 (S8), (L14), (L15), (L16), (L17) –
ASSY SHIELD COVER
CN P , Q ,R
@ MECHANISM ASSY Fig.1-3-15 2(S10), HOLDER –

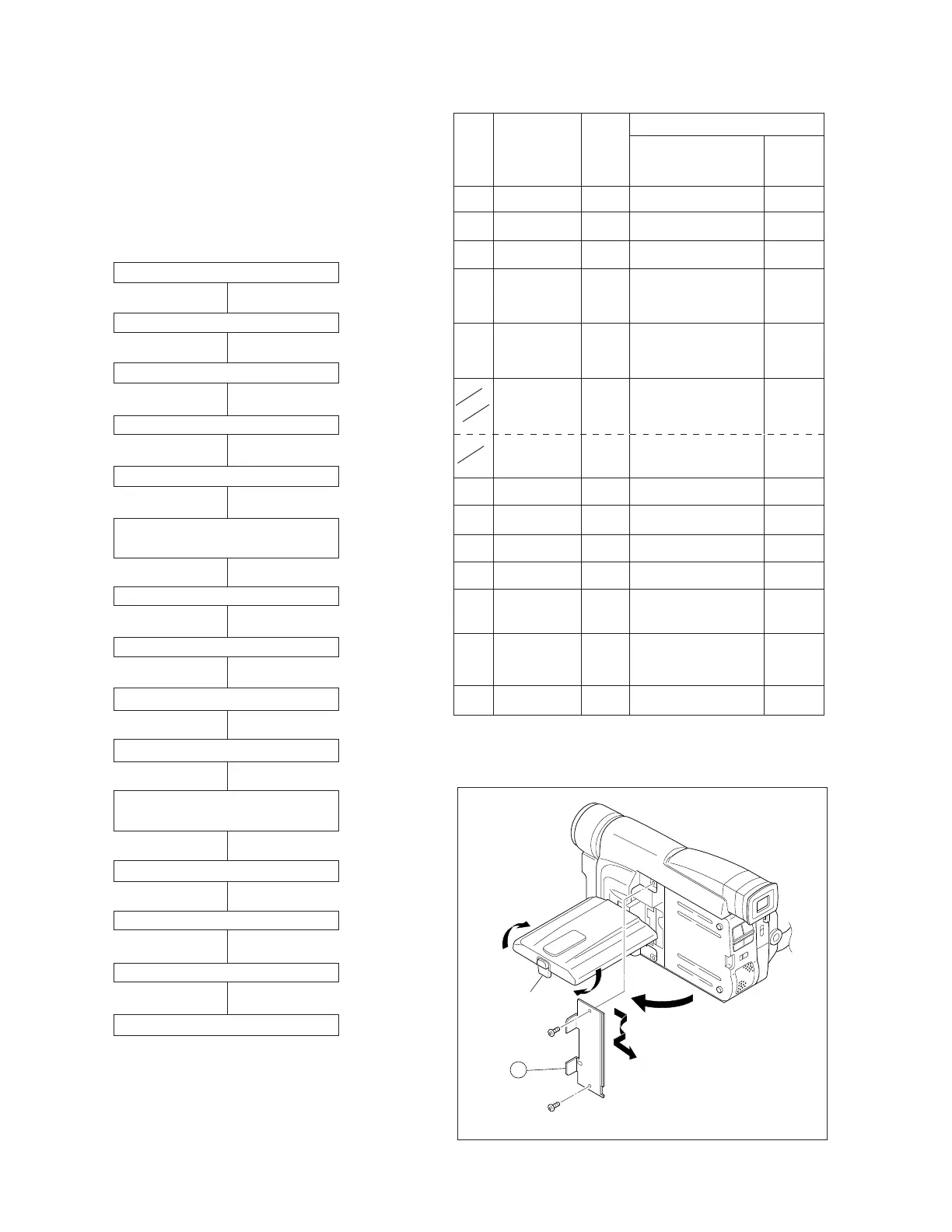

1.3 DISASSEMBLY/ASSEMBLY OF CABINET PARTS
1.3.1 Disassembly flow chart
This flowchart indicates the disassembly step for the cabi-
net parts and board assembly in order to gain access to
item(s) to be serviced. When reassembling, perform the
step(s) in reverse order. Bend, route and dress the flat ca-
bles as they were originally.
1.3.2 Disassembly method
1 Upper case (2)
1 Upper case (2)
2 Upper case (1)
3 Top cover
4 Lower case assembly
5 MAIN board assembly
6 Front cover assembly (including
MIC, DC light assembly)
7 MIC
8 DC light assembly
9 OP (optical) block assembly
0 Monitor assembly
- E. VF
(electronic viewfinder) assembly
= Frame assembly
~ JUNCTION board assembly
! SECOND board assembly
@ Mechanism assembly
Fig. 1-3-1
List of Abbreviations: (S1)=Screw (S1)
2(L4)=2 Locking Tabs (L4)
STEP
/LOC PART
NO.
REMOVAL
UNLOCK/RELEASE/
UNPLUG/UNCLAMP/ Note
UNSOLDER
Fig.
No.
6
7
8
Fig. 1-3-2
