1-16
1 MAIN PWB CN101 SECOND PWB CN301 100 YTU94126A-100
2 MAIN PWB CN106 CCD PWB 18 YTU94077-18/YTU94074-18
3 MAIN PWB CN107 OP BLOCK 22 YTU94077-22/YTU94074-22
4 MAIN PWB CN104 VF (B/W) CN7001 10 YTU94077-10/YTU94074-10
MAIN PWB CN104 VF (COLOR) CN7301 20 YTU94077-20/YTU94074-20
5 MAIN PWB CN110 OPE. COVER UNIT 10 YTU94077-10/YTU94074-10
6 MAIN PWB CN109 ZOOM UNIT 15 YTU94077-15/YTU94074-15

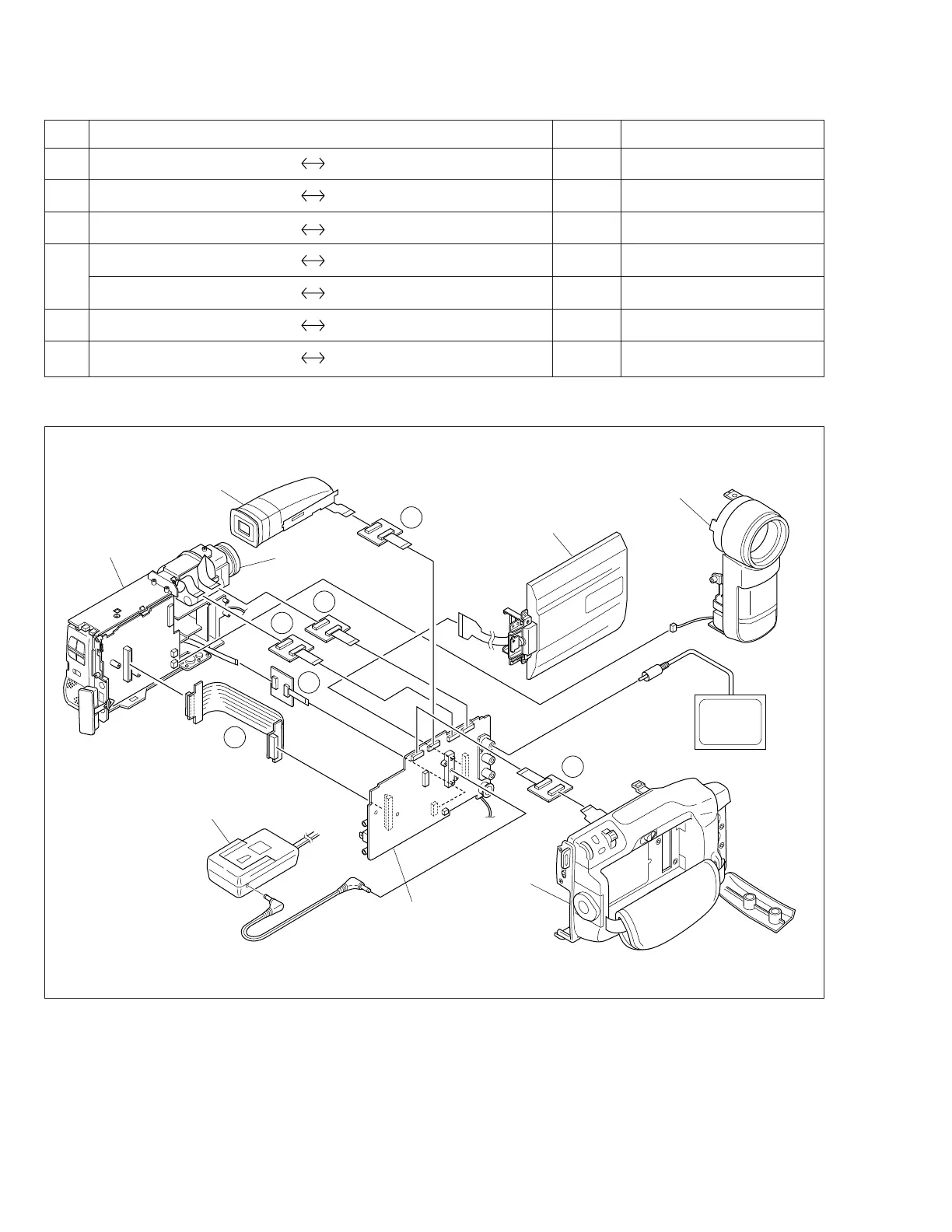

1.9 EXTENTION CABLE CONNECTION
Fig. 1-9-1
No. Connected point Pin No. Note/Patch cord
Table 1-9-1
4
3
2
5
6
1
TV MONITOR
LOWER CASE
ASSY
MAIN<01>
AC POWER ADAPTER
MONITOR ASSY
FRONT ASSY
FRAME ASSY
OP BLOCK
ASSY
VF(COLOR/ B/W)
ASSY
To Next Page
