AUX
INPUT2
INPUT1
DEVICE
AV
A
BATT.RELEASE
POWER
/CHG
B
HDMI
REMO
TE
DC
SD/HD
SDI
REC
AV
DEVICE
DC
REMOTE
SDI IN
HDMI
AV input
Clamp Filter
(supplied)
Wire Clamp
(supplied)
* Select the output signal in [A/V Set]
B
[HDMI/SDI Out].
(A P107 [ HDMI/SDI Out ] )
*
When [Record Format]
B
[System] is set to “SD”,
only SD-SDI signals are output.
(A P112 [ System ] )
* To display the menu screen or display screen on an
external monitor, set [A/V Set]
B
[Video Set]
B
[Display On TV] to “On”.
(A P107 [ Display On TV ] )

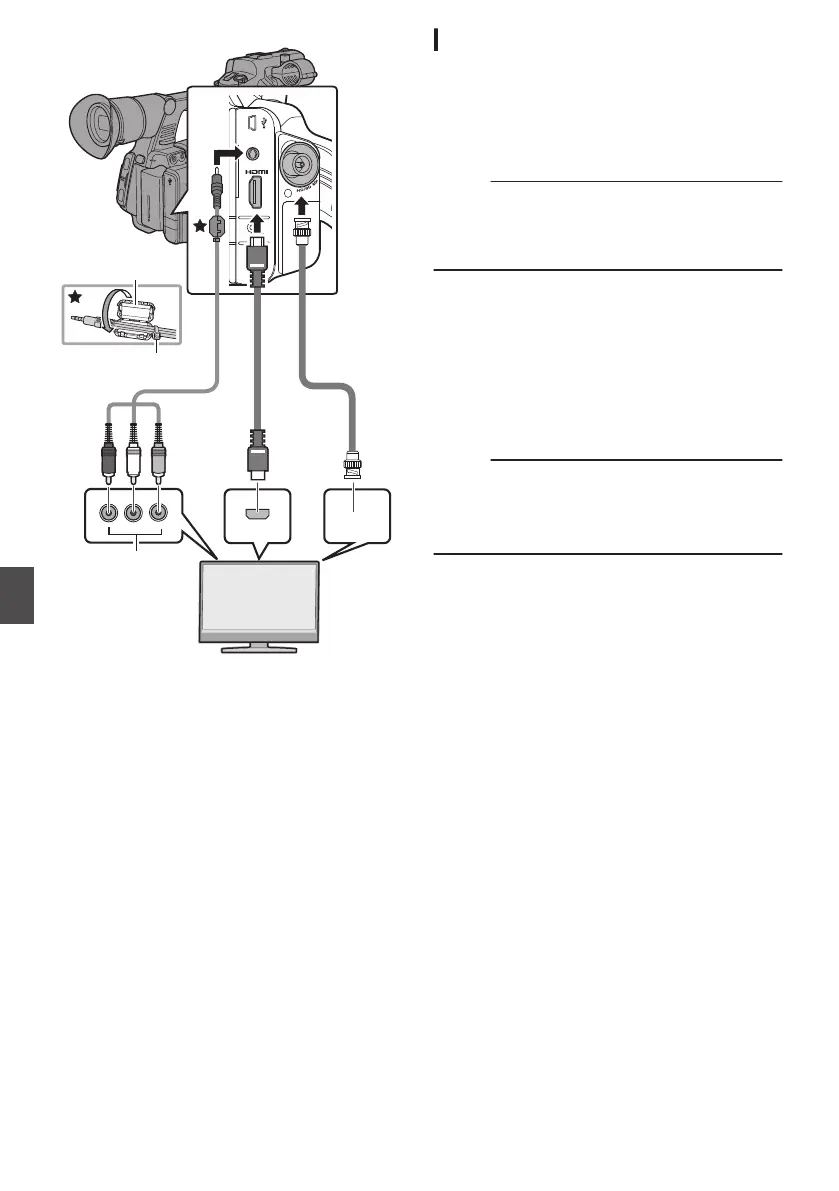

Connecting via SDI
0
Digital video signals, together with embedded
(superimposed) audio signals and time code signals,
are output for both the HD-SDI and SD-SDI signals.
0
User’s bit output from the [HD/SD SDI] output terminal
is used as a flag to determine valid video signals.
Therefore, accurate values will not be output.
Memo :
0
The sampling frequency for embedded
(superimposed) audio signals is 48 kHz. Time code
of the built-in time generator as well as playback time
code are also output.
Settings for SDI Down-Converted Output
0
You can select the method to “down convert” HD
video images to SD images during SD-SDI output.
0
Set using [A/V Set]
B
[Video Set]
B
[SD Aspect].
0
The available modes include “Side Cut”, “Letter”
(blackened at the top and bottom), and “Squeeze” (full
size, compressed at the left and right).
(A P112 [ SD Aspect ] )
Memo :
0
When [Record Format]
B
[System] is set to “SD”,
and [SD Aspect] is set to “4:3”, this item cannot be
selected.
(A P112 [ System ] )
134
Connecting External Devices
