JVC GY-HM600U Instructions

R
[OIS/2]
Optical Image Stabilizer/User 2 Button
For switching the image stabilizer feature mode
ON or OFF.
You can also use it as a user button by assigning
a specific feature in the menu setting to this
button.
(A P36 [Assignment of Functions to User
Buttons] )
S
[FOCUS ASSIST/1] Focus Assist/User 1 Button
For switching the focus assist function ON or
OFF.
(A P49 [Focus Assist Function] )
You can also use it as a user button by assigning
a specific feature in the menu setting to this
button.
(A P36 [Assignment of Functions to User
Buttons] )
T
[MENU/THUMB] Menu/Thumbnail Button
0
Displays the menu screen during Camera
mode.
0
Switches between [Main Menu
] and
[Favorites Menu] when the [MENU/
THUMB] button is pressed and held down
while the menu screen is displayed.
(A P
90 [Basic Operations in Menu Screen] )
0
Displays the menu screen when the button
is pressed during thumbnail display in the
Media mode.
0
Stops playback and displays the thumbnail
screen when the button is pressed during
playback
screen display in the Media mode.
U
[CANCEL
] Cancel Button
Cancels various settings and stops playback.

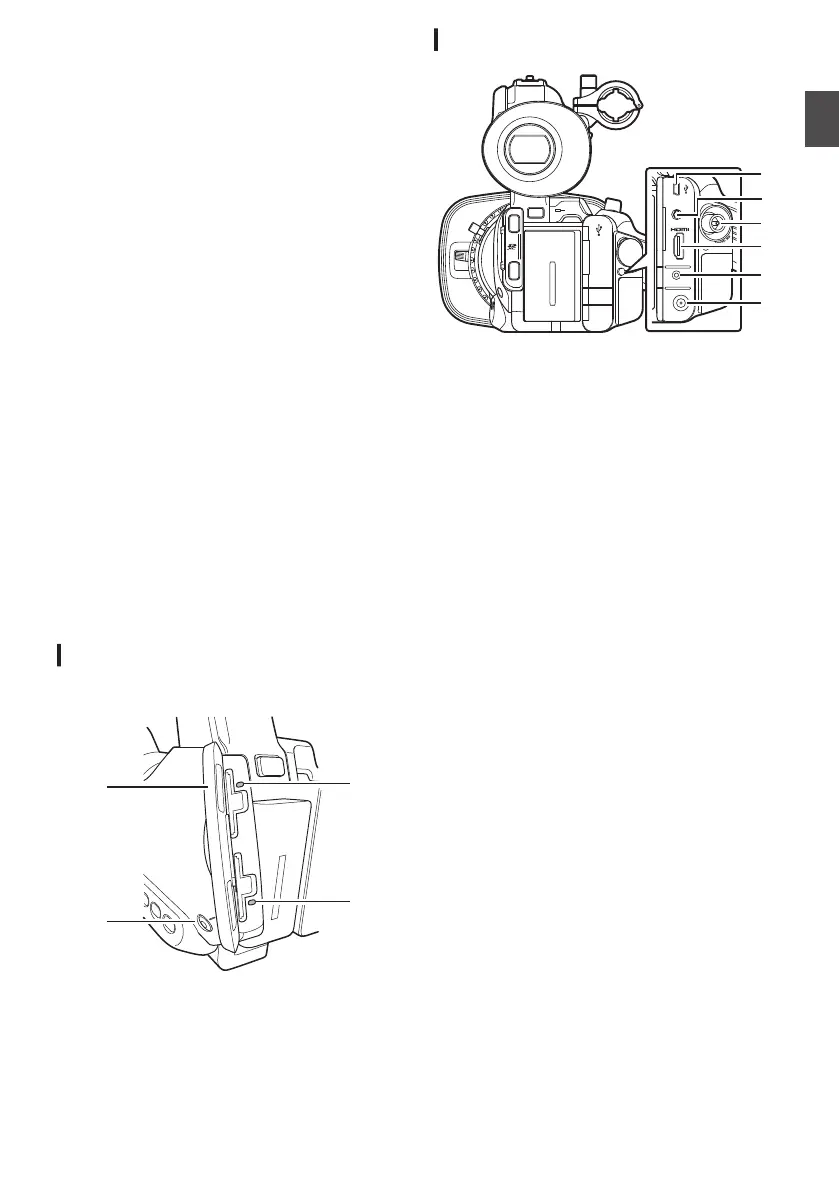

SD Slot
(A P
37 [SD Card] )
.
A
B
C
D
A
SD Card Cover
B
[SLOT A/B] Card Slot Selection Button
For switching the active card slot during
shooting and playback.
C
Card Slot B Status Indicator
D
Card Slot A Status Indicator
Rear Terminal
.
DEVICE
AV
HDMI
REMOTE
DC
HD/SD
SDI
POWER
/CHG
BATT.RELEASE
A
B
OPEN
CLOSE
AV
DEVICE
DC
REMOTE
C
D
E
F
B
A
A
[DEVICE] USB Mini Terminal
(A P132 [Managing/Editing Clips on a PC] )
B
[AV] AV Output Terminal
(A P133 [Connecting External Monitor] )
C
[HD/SD SDI] SDI Output Terminal (BNC)
(A P108 [ SDI Rec Trigger ] )
(A P133 [Connecting External Monitor] )
D
[HDMI] HDMI Output Terminal
(A P133 [Connecting External Monitor] )
E
[REMOTE] Remote Terminal
(A P135 [Connecting Wired Remote Control] )
F
[DC] DC Input Terminal
Input terminal for DC 12 V power supply. For
connecting with the supplied AC adapter.
(A P28 [Using AC Power (DC IN Power)] )
21
Introduction
