Display Screen in Media
Mode

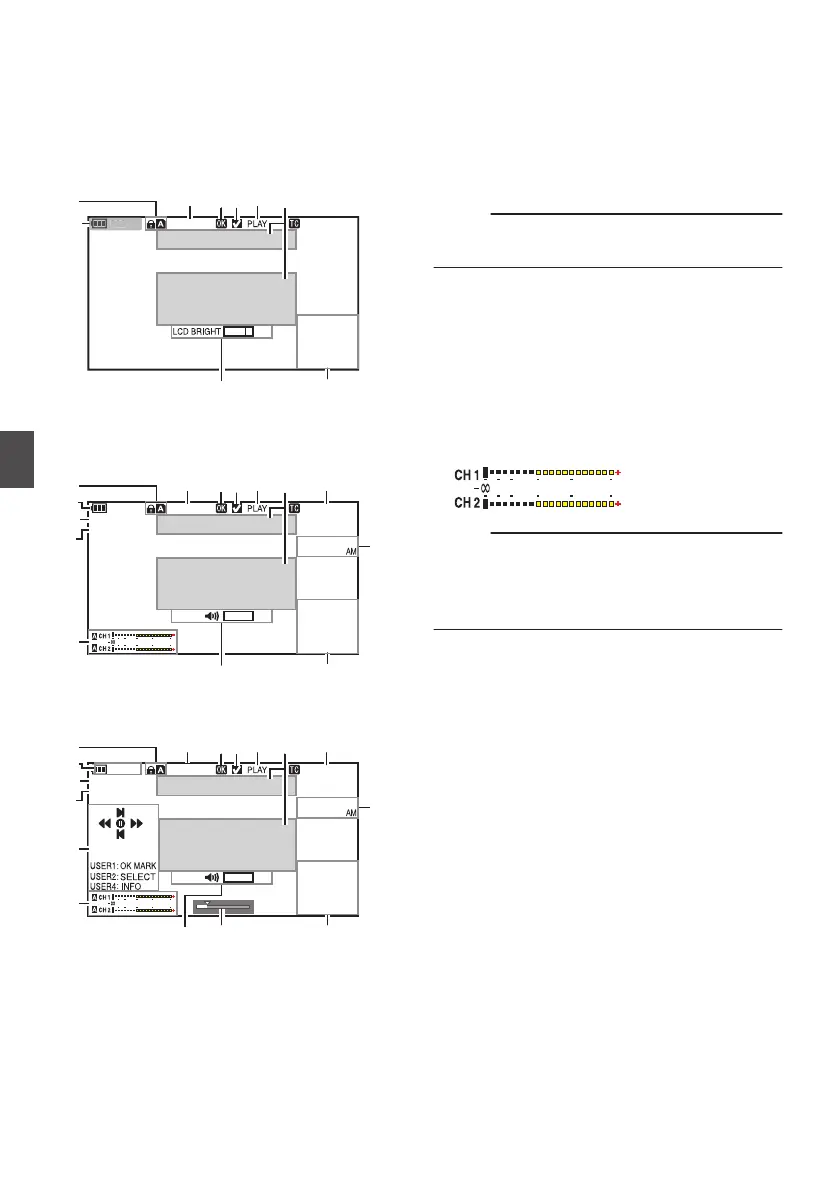

Media Display 0 Screen
This screen displays the media status or event. It
is also used to display warnings only.
.
282min
+5
00:00:00.00
1000/ 2000
A
G
I
M
P
N
O
L
2
82
m
in
※
* Appears only during warnings
Media Display 1 Screen
.
282min
0
12 :34 :56
Jan 24 ,2012
00:00:00.00
1920x1080
60 i HQ
4030 20 10 0
1000/ 2000
A
F
G
I
J
KM
P
N
C
D
O
L
B
Media Display 2 Screen
.
282min
0
12 :34 :56
Jan 24 ,2012
00:00:00.00
1920x1080
60 i HQ
4030 20 10 0
1000/ 2000
B
A
F
G
I
J
KM
P
N
C
D
O
E
L
H
A
Media
0
Displays the media slot (A or B) of the
currently played clip.
0
z appears when the write-protect switch of
the SD card is set.
B
Voltage/Battery Power
Displays
the current status of the power supply
in use.
(A P28 [Power Status Display] )
Memo :
0
Displayed in the Media Display 0 screen during
warnings only.
C
Resolution
Displays the video image resolution.
D
Frame Rate/Bit Rate
Displays the frame rate and bit rate in pairs.
E
Operation Guide
Displays a guide for the current operation
buttons.
F
Audio Level Meter
Displays the audio levels of CH1 and CH2.
.
4 030 20 10 0
Memo :
0
This item is not displayed when [Main Menu] B
[LCD/VF] B [Display Settings] B [Audio Meter]
is set to “Off”.
(A P
106 [ Audio Meter ] )
G
Volume Operation Indicator
0
Displayed when there are changes made to
the volume of the headphone, speaker (0 to
15), and the value of LCD BRIGHT (-10 to
+10).
0
The [PEAKING +/-] operation is disabled in the
Media mode, and its value is fixed at “-10”.
(A P120 [Volume Operation Indicator] )
H
Position bar
Displays the current position in the video.
During trimming, the position bar appears in
green, and icons for the in and out points are
displayed.
6
: Current position of the video
7
: Position to start trimming
(In point)
8
: Position to end trimming
(Out point)
124
Display/Status Screen
