JVC HX-Z1

HX-Z1
12
(6) Remove the two screws I attaching the heat sink bracket
and move the heat sink in the direction of the arrow to re-
lease from the base chassis (two joints i). The bridge
board and the regulator board come off with the heat sink.

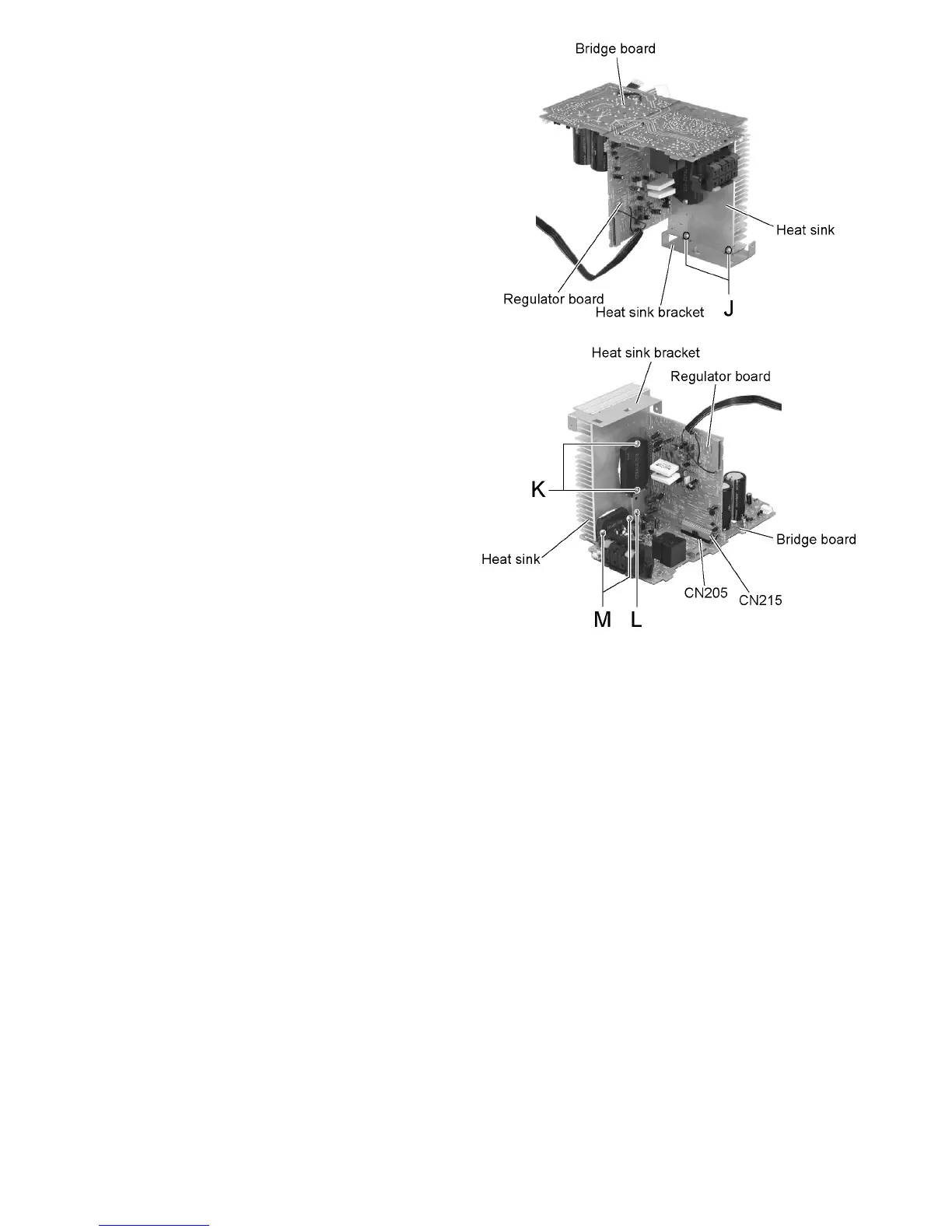

(7) Remove the two screws J attaching the heat sink bracket.
(8) Remove the two screws M, detach bridge board from reg-
ulator board by disconnect connector CN205.
(9) Remove the screws K and L to detach regulator board
from heat sink.
CAUTION:
As assembly back the regulator board and bridge board to
heat sink.
Regulator board MUST be assembly to heat sink first and
screw K and L MUST be screwed before bridge board attach
to regulator board.
Fig.26
Fig.27
