2.1.5 Removing the rear panel

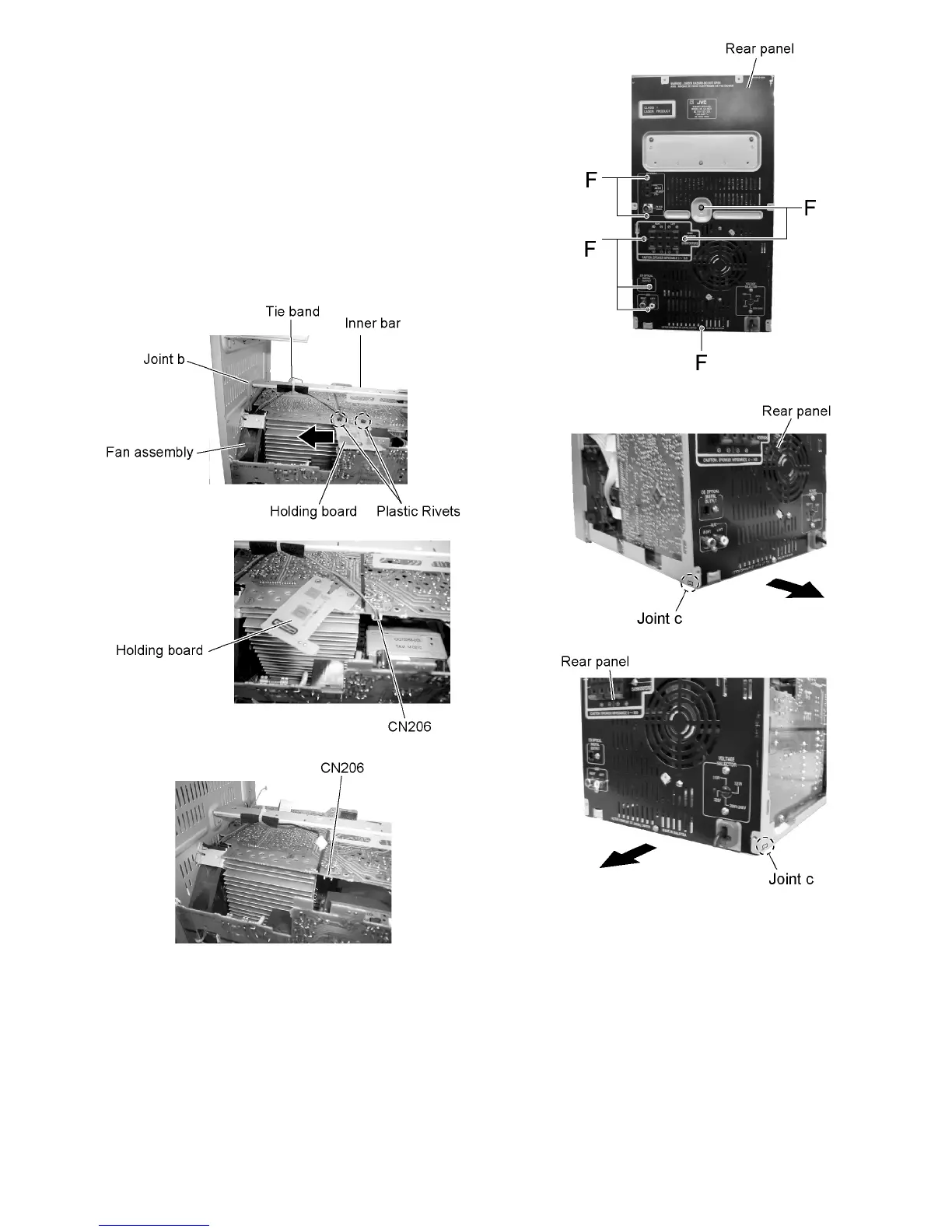

(See Fig.12 ~ 17)
• Prior to performing the following procedure, remove the metal
cover and the CD changer mechanism assembly.
(1) Remove holding board by remove two plastic rivets and
then slide out the holding board as shown in fig. 12.
(2) Disconnect fan wire from connector CN206.
(3) Cut off the tie band that tied fan wire on inner bar.
(4) Remove eight screws F from rear panel.
(5) Detach joint b to release rear panel from inner bar.
(6) Release joints c which on right bottom and left bottom of
rear panel. The joint can be release by pull outward the
side of rear panel.
REFERENCE:
Fan assembly will come off with rear panel.
Fig.12
Fig.13
Fig.14
Fig.15
Fig.16
Fig.17
