■ Speaker
You can select a speaker type and its size to
get the best sound effects.
When the speaker type and size are set,
the speaker crossover network is set
automatically.
■ Location (Only for Front, Rear)
Select the speaker position you have fixed.
■ Tweeter (Only for Front)
You can set the tweeter when you are
selecting front speakers.
None, Small, Medium, Large
■ X’over
Displays the speaker crossover setup screen.
You can adjust the crossover setup that was
set automatically when you selected the
speaker type.
For details, see Crossover network setup
(P.70)
When Speaker network is set to 3 way:
1
2
NOTE
• For how to switch to the 3-way speaker system,
see 3 way speaker system setup (P.71).
Connecting 3-way speakers with the 2-way mode
selected can break the speakers.
• Select “None” if you have no speakers.

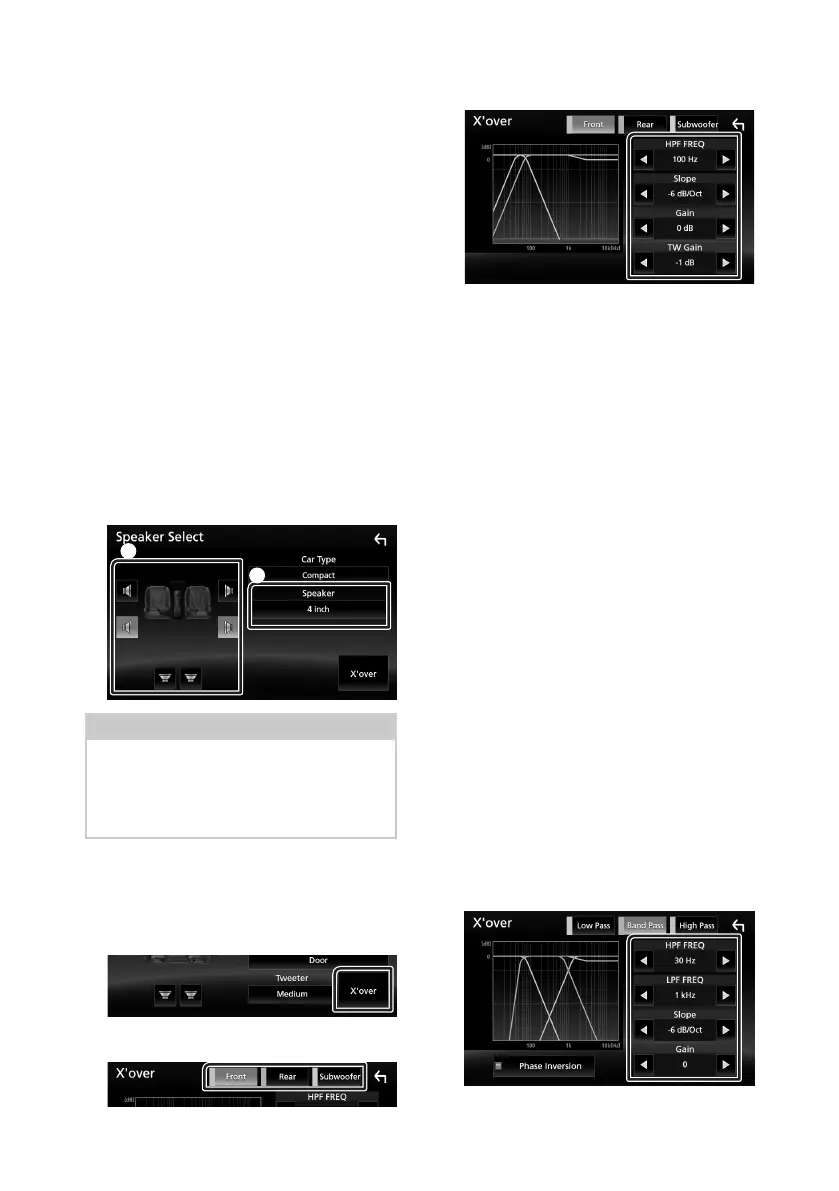

Ñ Crossover network setup
You can set a crossover frequency of speakers.
1
Touch [Xʼover].
2
Touch the speaker to set.
3
Set each item as follows.
■ HPF FREQ
High Pass Filter adjustment. (When front or
rear speaker is selected on Speaker Select
screen)
■ LPF FREQ
Low Pass Filter adjustment. (When subwoofer
is selected on Speaker Select screen)
■ Slope*
1
Sets a crossover slope.
■ Gain
Adjusts the front speaker, rear speaker, or
subwoofer level.
■ TW (Tweeter) Gain *
2
Adjusts the tweeter level. (When front is
selected on Speaker Select screen)
■ Phase Inversion*
3
Sets the phase of subwoofer output.
Check [Phase Inversion] to shift the phase
180 degrees. (When subwoofer is selected
on Speaker Select screen)
*
1
Only when “LPF FREQ”/“HPF FREQ” is set to
a mode other than “Through” in [Xʼover].
*
2
Only when “Tweeter” is set to “Small”,
“Medium”, “Large” in [Speaker Setup].
*
3
Only when “Subwoofer” is set to a mode
other than “None” in [Speaker Setup].
When Speaker network is set to 3 way:
