IR SENSOR PWB
FUNCTION
PWB
CN106
CN105A
CN402
CN451
CN301
MAIN PWB
CN802
CN202
CN401
CN4501 CN4502
CN11
DIGITAL MAIN PWB
JACK PWB
To Speaker
CN201
JUNCTION PWB
CN3704CN4503CN3701CN3601
CN103ACN102ACN101ACN104A
INVERTER PWB
To LCD PANEL UNIT
CN403B
CN403A
CL403
To LCD PANEL UNIT
CN107
To Speaker

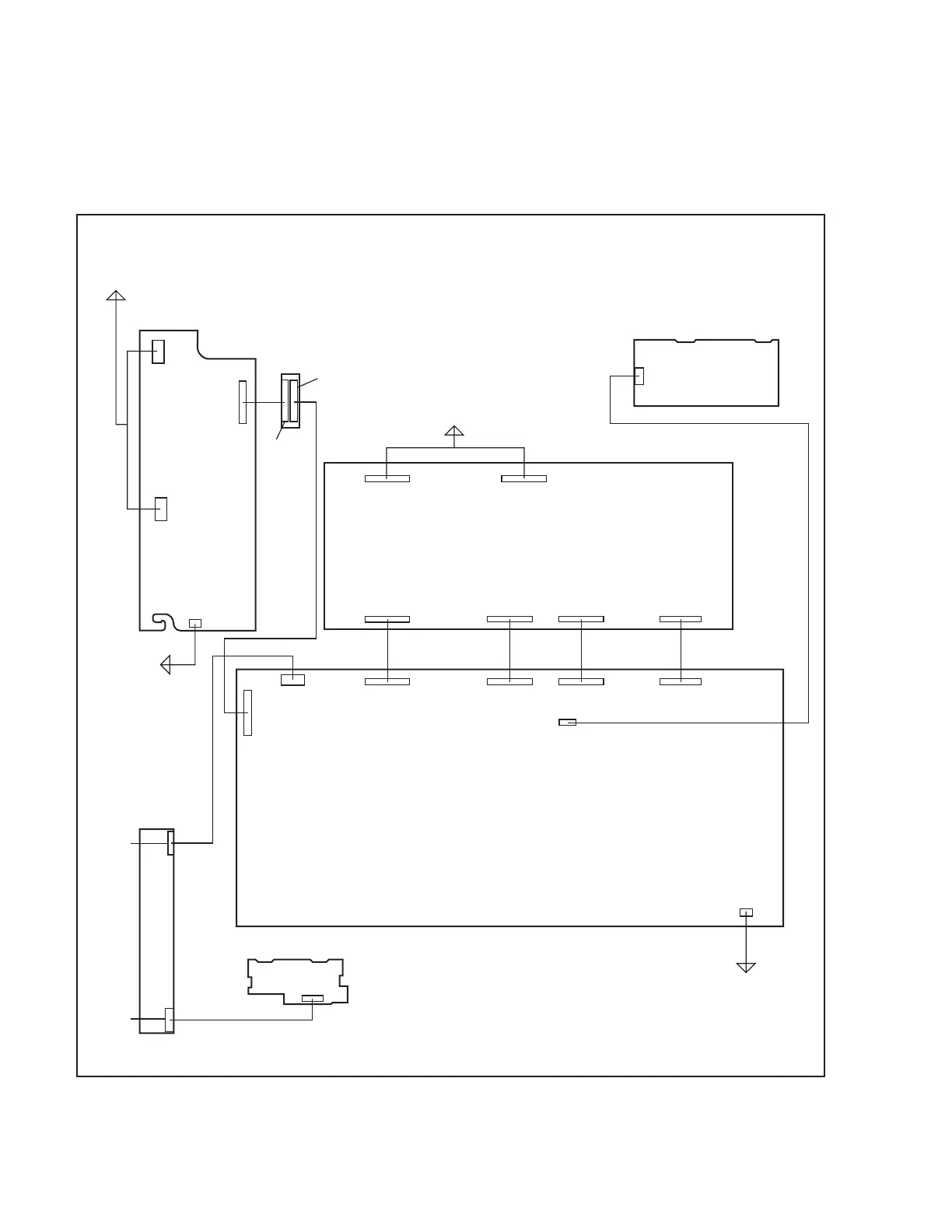

WIRING DIAGRAM [TV CABLE]
2-4(No.YA683<Rev.001>)
