JVC LT-19DA9BJ - Main (2;3) and Jack Pwb Circuit Diagram

(No.YA683<Rev.001>)2-23 2-24(No.YA683<Rev.001>)
MAIN PWB ASS'Y(2/3)
FU-1ESA19688-1[LT-19DA1BJ/AK]
FU-1ESA19148-1[LT-19DA1BU/AK]
JACK PWB ASS'Y
FU-1ESA19688-4[LT-19DA1BJ/AK]
FU-1ESA19148-4[LT-19DA1BU/AK]
MAIN PWB(1/3)
MAIN PWB(1/3)
MAIN PWB(1/3)
DIGITAL MAIN PWB(2/6)
CN4503
MAIN PWB(3/3)
A8CN8SCM2_1215_2/3_0.0

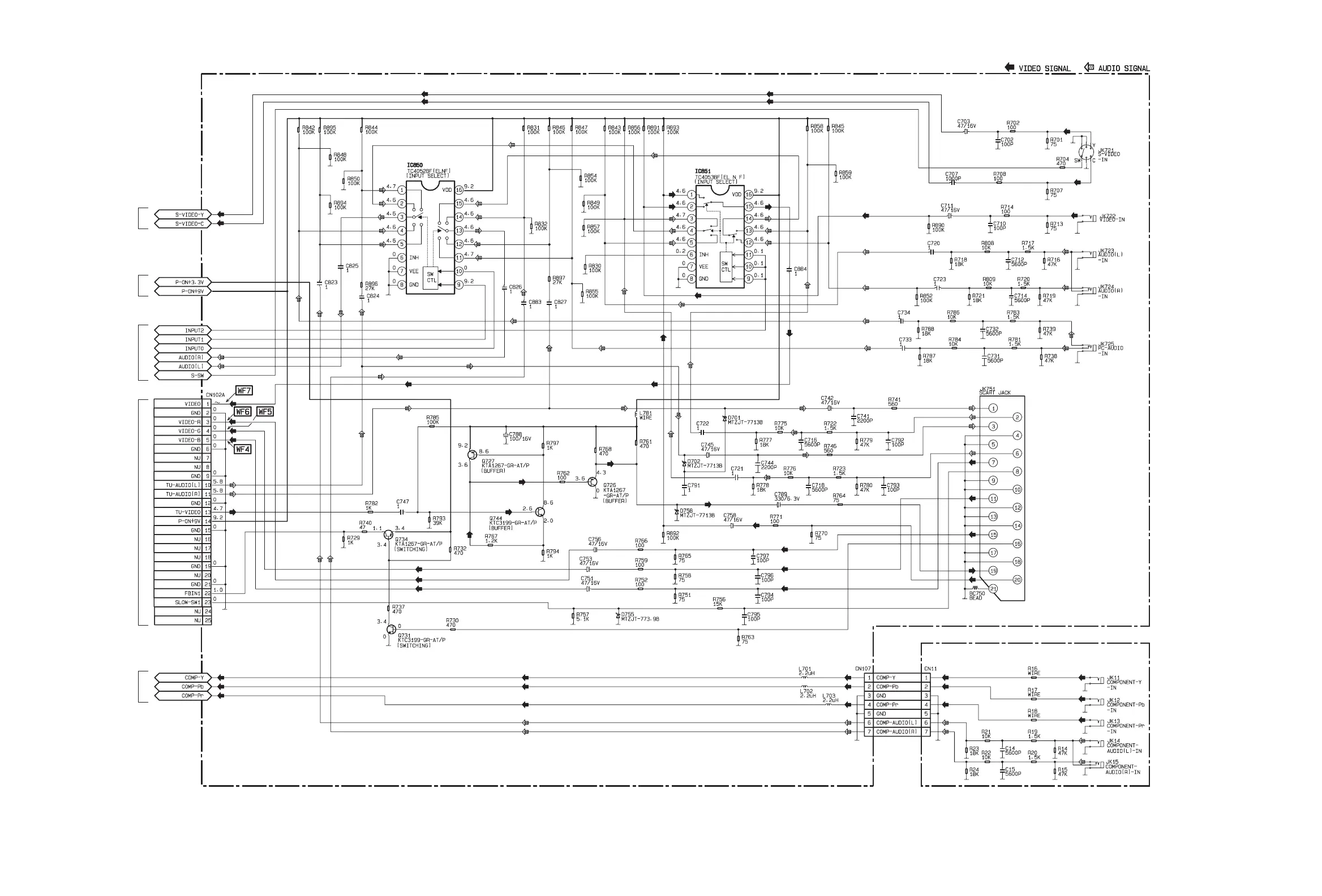

MAIN (2/3) AND JACK PWB CIRCUIT DIAGRAM
