2-26(No.YA683<Rev.001>)(No.YA683<Rev.001>)2-25
MAIN PWB ASS'Y(3/3)
FU-1ESA19688-1[LT-19DA1BJ/AK]
FU-1ESA19148-1[LT-19DA1BU/AK]
MAIN PWB(1/3)
MAIN PWB(1/3)
MAIN PWB(1/3)
MAIN PWB(1/3)
MAIN PWB(2/3)
JUNCTION PWB
CL403
DIGITAL MAIN PWB
(6/6)
CN3601
A8CN8SCM3_1215_1/1_0.0
!
!
!
!
!
!
!
! ! !
!
! !
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

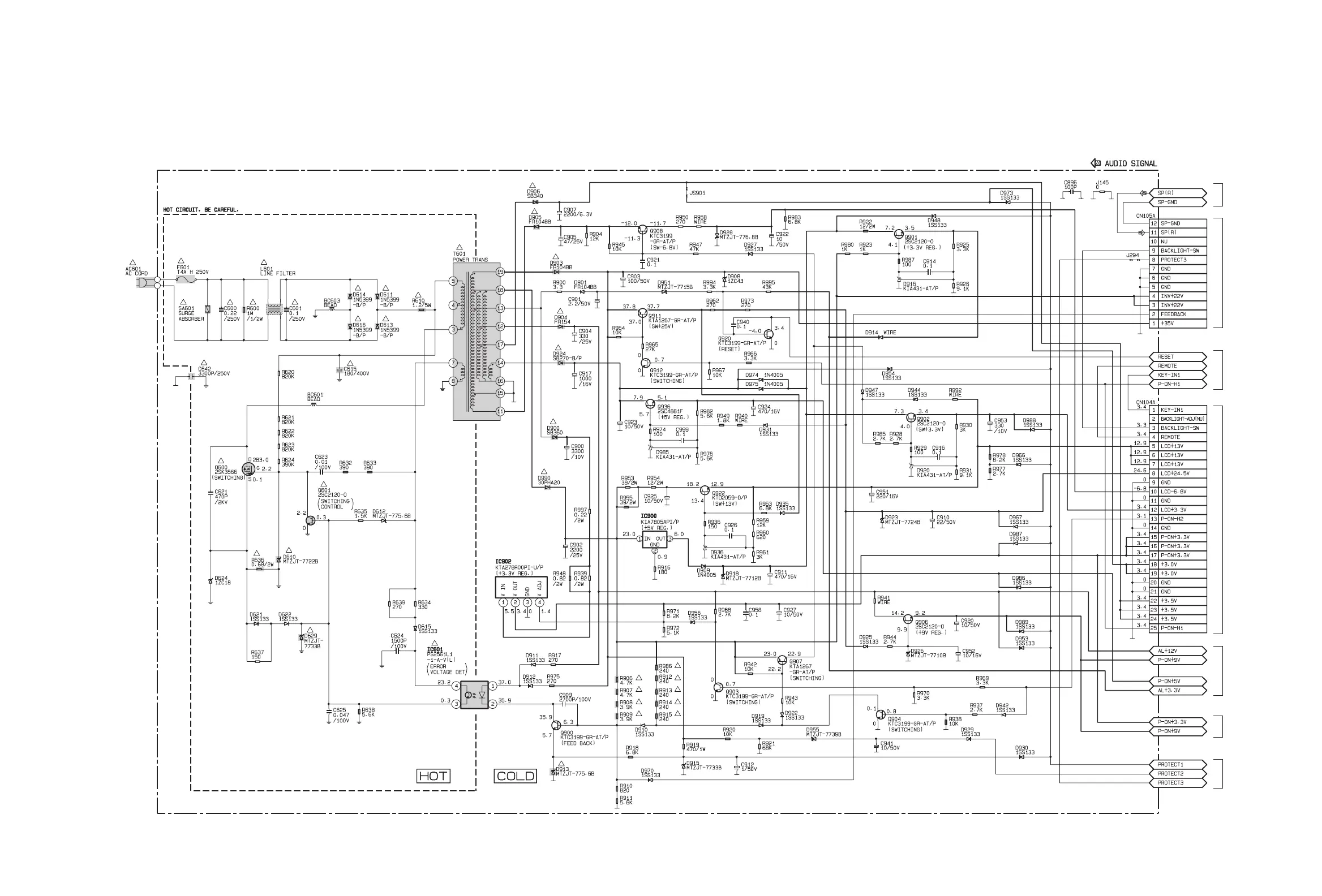

MAIN PWB CIRCUIT DIAGRAM (3/3)
To Next Page
