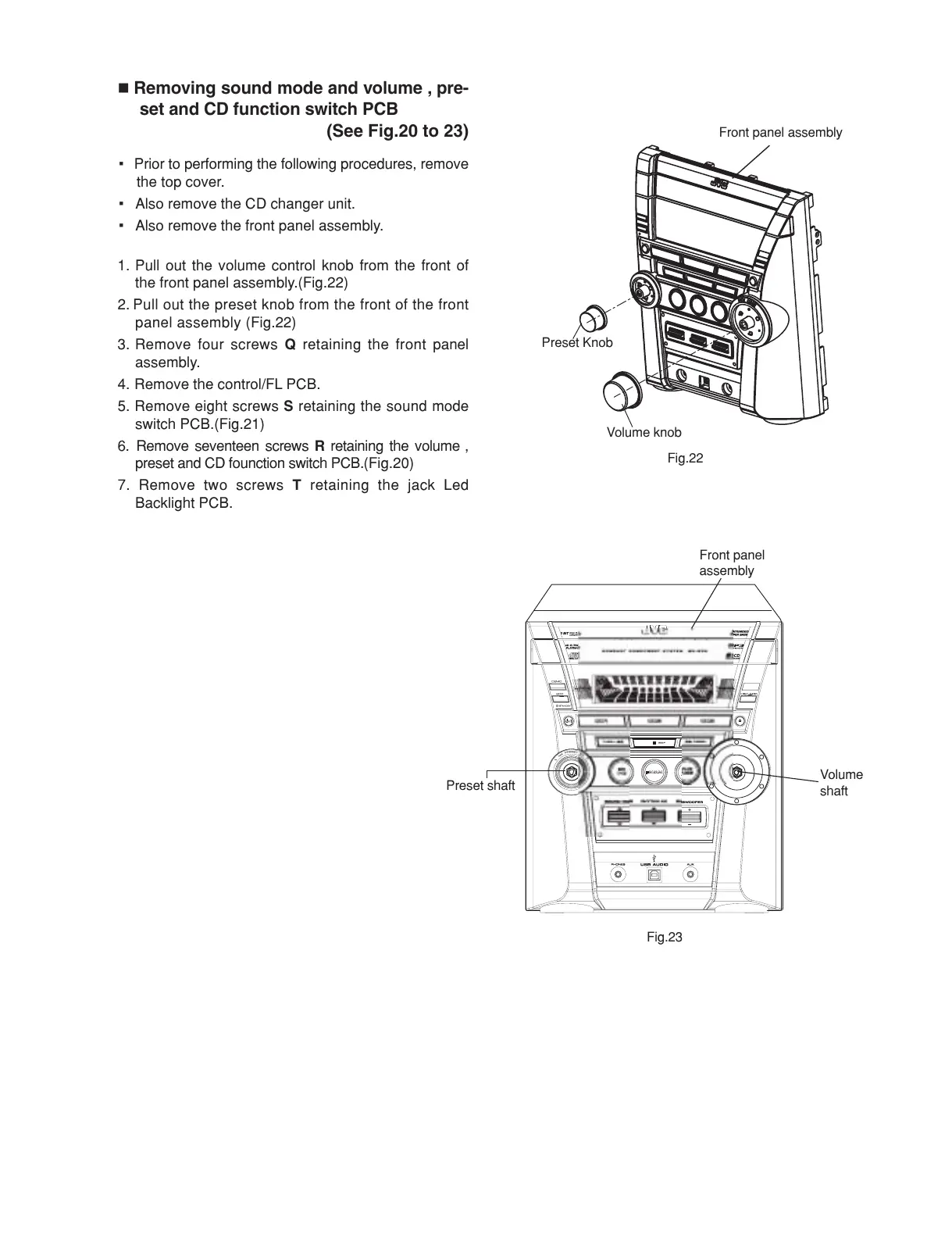

Removing sound mode and volume , pre-
set and CD function switch PCB
(See Fig.20 to 23)
Prior to performing the following procedures, remove
the top cover.
Also remove the CD changer unit.
Also remove the front panel assembly.
1. Pull out the volume control knob from the front of
the front panel assembly.(Fig.22)
2. Pull out the preset knob from the front of the front
panel assembly (Fig.22)
3. Remove four screws
Q
retaining the front panel
assembly.
4. Remove the control/FL PCB.
5. Remove eight screws
S
retaining the sound mode
switch PCB.(Fig.21)
6. Remove seventeen screws
R
retaining the volume ,
preset and CD founction switch PCB.(Fig.20)
7. Remove two screws
T
retaining the jack Led
Backlight PCB.
Fig.22
Fig.23
Volume knob
Preset Knob
Preset shaft
Front panel
assembly
Volume
shaft
Front panel assembly
To Next Page
