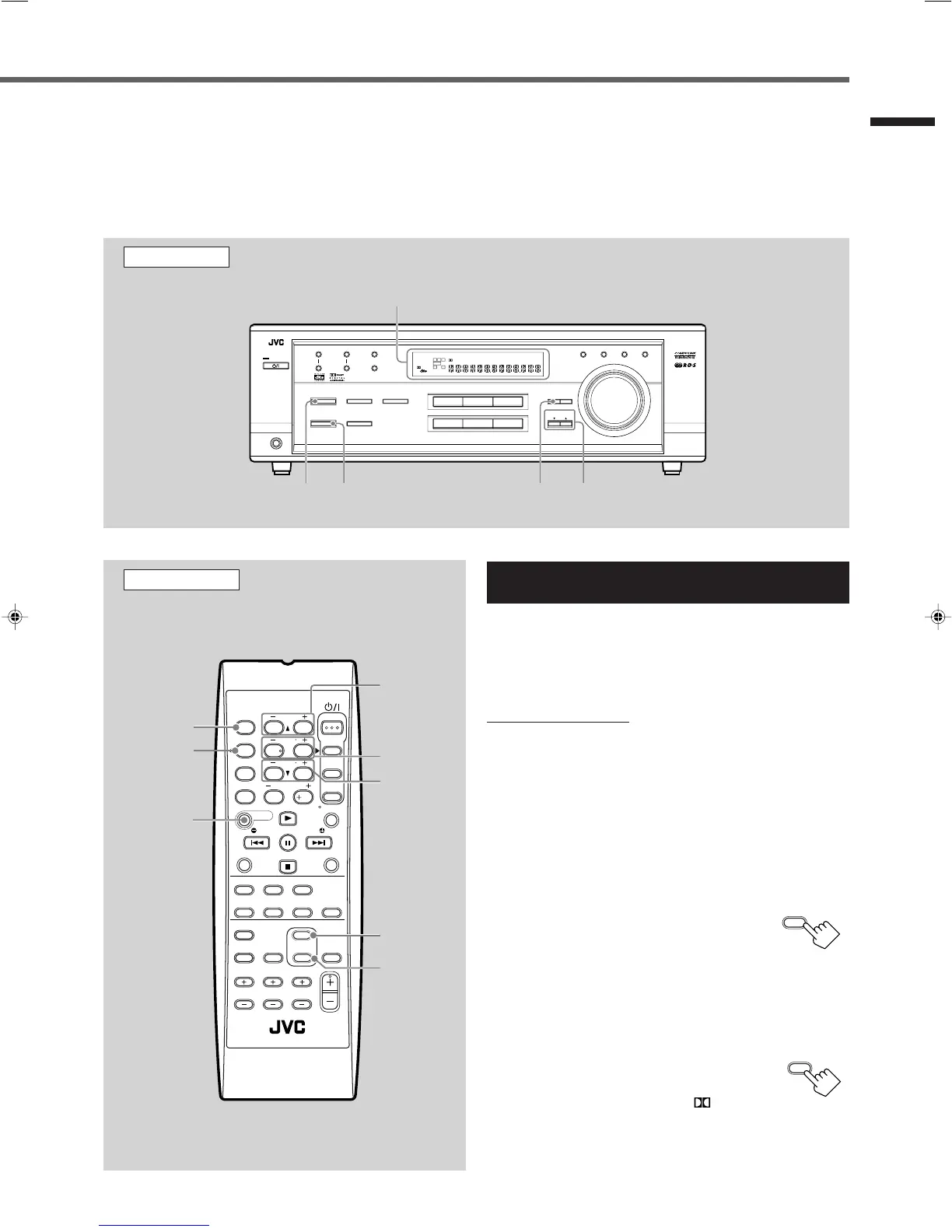

Creating Realistic Sound Fields
Remote Control
SOUND
REAR•R +/–
REAR•L +/–
CENTER +/–
SURROUND
ON/OFF
SURROUND
MODE
EFFECT
TEST
SOUND
Before you start, remember...
• Make sure that you have set the speaker information correctly (see pages 12 to 14).
• You cannot adjust the center speaker output level when you have set “CNTR SP” to “NONE.”
• You cannot adjust the rear speaker output levels when you have set “REAR SP” to “NONE.”
• Remember not to change the speaker setting while using any Surround modes; otherwise, it may be canceled when you deactivate the
speakers required for the Surround mode.
Display
Front Panel
SURROUND
ON/OFF
SURROUND
MODE
ADJUST
CONTROL
UP 5/DOWN ∞
DVD VCR TV SOUND
ADJUST
RX-5022R AUDIO/VIDEO CONTROL RECEIVER
SETTING
CONTROL
DOWN UP
CD TAPE/CDR
SOURCE NAME
INPUT DIGITALINPUT ANALOG
SPEAKERS ON/OFF
SURROUND MODE
PHONES
SURROUND ON/OFF
FM/AM TUNING
STANDBY
FM/AM PRESET FM MODE
MEMORY
INPUT ATT
FM/AM
STANDBY/ON
LC
S.WFR
LS RS
CH-
S
LFE
SPK
PRO LOGIC ΙΙ DSP H.PHONE
AUTO MUTING
TUNED
STEREO
TA NEWS INFO
VOLUME
INPUT ATT RDS
SLEEP
DIGITAL AUTO
ANALOG
DIGITAL
LINEAR PCM
R
UP
DOWN
UP
DOWN
MASTER VOLUME
PTY SEARCH TA/NEWS/INFO DISPLAY MODE
DIMMER
Using Dolby Pro Logic II, Dolby Digital
and DTS Digital Surround
Once you have adjusted the sound, the adjustment is memorized for
each source.
• When playing back digital multichannel software (Dolby Digital
5.1 ch or DTS Digital Surround), the SURROUND MODE button
does not work.
From the remote control:
It will be convenient for you to use the remote control for
adjustments, since you can make adjustments from your listening
point by using the test signal.
• For selecting Panorama control for Pro Logic II Music, use the
buttons on the front panel.
1
Setting the analog or digital input mode for the
source you like to listen and start playing.
When playing back software encoded with Dolby Digital and DTS
Digital Surround, select the digital input mode (see page 11).
2
Press SURROUND ON/OFF to
activate Surround mode.
Each time you press the button, Surround mode turns on and off
alternately.
• If you are playing back software encoded with Dolby Digital
multichannel, “DOLBY DIGITAL” is selected.
• If you are playing back software encoded with DTS Digital
Surround, “DTS SURROUND” is selected.
• If you are playing back any software other than
above, you can select “PL II MUSIC” or
“PL II MOVIE” according to the source by
pressing SURROUND MODE. (
PRO LOGIC II
indicator lights up on the display.)
If you like to adjust sound, go to step
3
.
FM MODE
A/V CONTROL
RECEIVER
STANDBY/ON
AUDIO
TV
VCR
DVD
TEST
EFFECT
MENU
ENTER
RETURN
SOUND
SLEEP
REAR L
SUBWOOFER
TA/NEWS/INFO
PTY–PTY SEARCH–PTY
DISPLAY MODE
CD
–
DISC
REC PAUSE
TAPE/CDR CD DVD
FM/AM
FM MODE
DIMMER TV/VIDEO
SURROUND
ON/OFF
MODE
MUTING
VCR CH
TV CH
TV VOLUME
VOLUME
TV SOUND VCR
ANALOG
/DIGITAL
REAR R
100
1
4
7/P
10
2
5
8
0
3
6
9
10
REMOTE CONTROL RM - SRX5022R
REW
FF
CENTER
SURROUND
ON/OFF
TO BE CONTINUED TO THE NEXT PAGE
SURROUND
MODE
