JVC RX-5022RSL User Manual

2

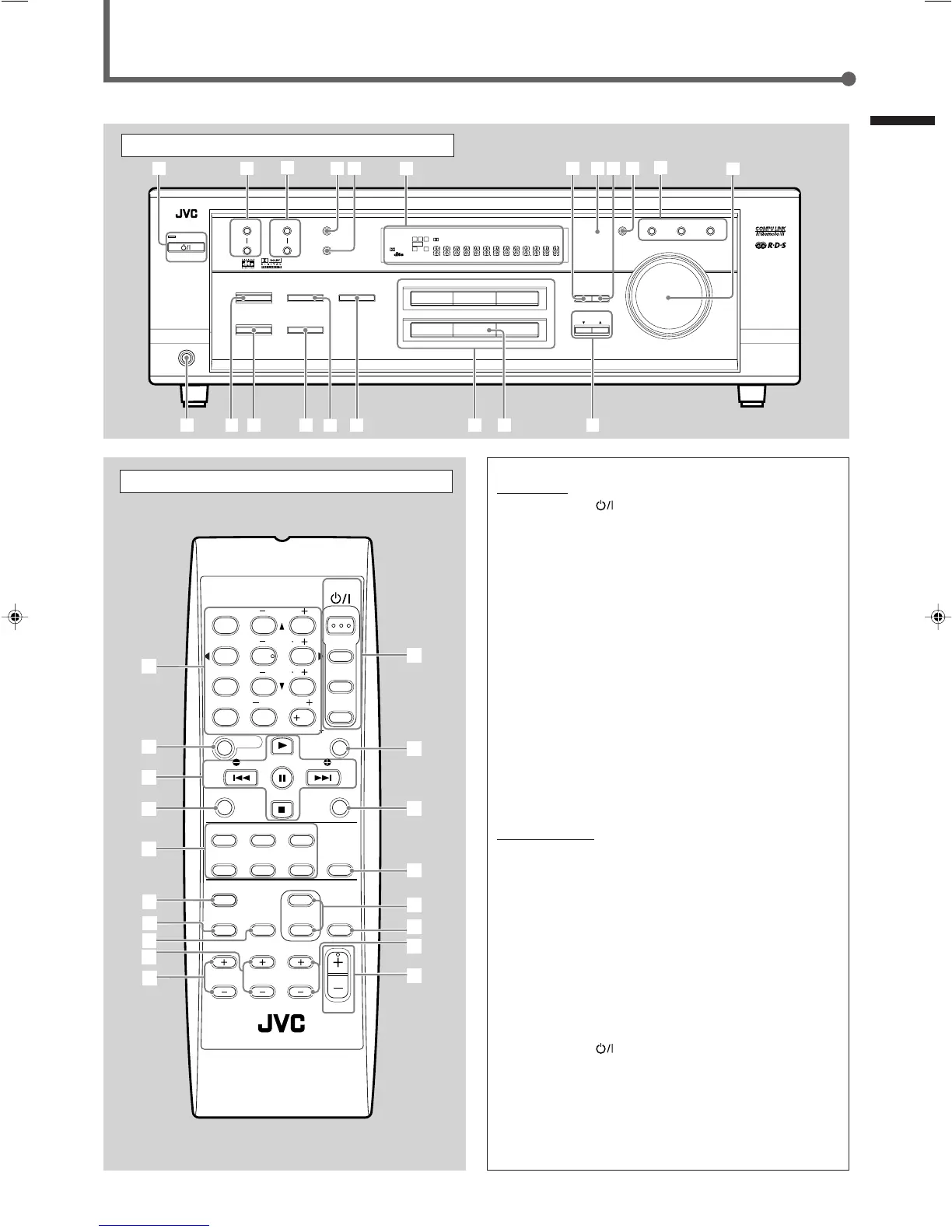

Parts Identification
Front Panel
Front Panel
1 STANDBY/ON button and STANDBY lamp (8)
2 FM/AM TUNING UP/ DOWN buttons (16)
3 FM/AM PRESET UP/ DOWN buttons (16, 17)
4 FM MODE button (17)
5 MEMORY button (16, 17)
6 Display (8)
7 ADJUST button (15, 25, 26)
8 Remote sensor (3)
9 SETTING button (11 – 14)
p DIMMER button (10)
q RDS operating buttons (18 – 20)
PTY SEARCH, TA/NEWS/INFO, DISPLAY MODE
w MASTER VOLUME control (9)
e PHONES jack (9)
r SURROUND ON/OFF button (23, 25, 26)
t SURROUND MODE button (23, 25, 26)
y SPEAKERS ON/OFF button (9)
u • INPUT ANALOG button (11)
• INPUT ATT button (15)
i INPUT DIGITAL button (11, 12)
o Source selecting buttons (8, 9, 11, 16, 17)
DVD, VCR, TV SOUND, CD, TAPE/CDR, FM/AM
; SOURCE NAME button (8)
a CONTROL UP5/DOWN∞ buttons
Remote Control
1 • 10 keys for selecting preset channels (17)
• 10 keys for adjusting sound (15, 25, 26)
• 10 keys for operating audio/video components (28 – 30)
2 SOUND button (15, 25, 26)
3 • Operating buttons for audio/video components (29, 30)
• RDS operating buttons (18 – 20)
PTY SEARCH, TA/NEWS/INFO, DISPLAY MODE
4 REC PAUSE button (29, 30)
5 Source selecting buttons (8, 9, 11, 17, 29, 30)
TAPE/CDR, CD, DVD, FM/AM, TV SOUND, VCR
6 FM MODE button (17)
7 DIMMER button (10)
8 TV/VIDEO button (30)
9 TV CH (channel) +/– buttons (30)
p VCR CH (channel) +/– buttons (30)
q STANDBY/ON buttons (8, 30)
AUDIO, TV, VCR, DVD
w SLEEP button (10)
e CD–DISC button (29)
r ANALOG/DIGITAL button (11, 12)
t SURROUND ON/OFF and SURROUND MODE buttons (23, 24, 26, 28)
y MUTING button (10)
u TV VOLUME +/– buttons (30)
i VOLUME +/– button (9)
See pages in the parentheses for details.
Remote Control
DVD VCR TV SOUND
ADJUST
RX-5022R AUDIO/VIDEO CONTROL RECEIVER
SETTING
MASTER VOLUME
CONTROL
DOWN UP
CD TAPE/CDR
SOURCE NAME
INPUT DIGITALINPUT ANALOG
SPEAKERS ON/OFF
SURROUND MODE
PHONES
SURROUND ON/OFF
FM/AM TUNING
STANDBY
FM/AM PRESET FM MODE
MEMORY
INPUT ATT
FM/AM
1
2
5
4
8
7
e
r
t
u
iy
o
;a
6
3
STANDBY/ON
UP
DOWN
UP
DOWN
LC
S.WFR
LS RS
CH-
S
LFE
SPK
PRO LOGIC ΙΙ DSP H.PHONE
AUTO MUTING
TUNED
STEREO
TA NEWS INFO
VOLUME INPUT ATT RDS
SLEEP
DIGITAL AUTO
ANALOG
DIGITAL
LINEAR PCM
R
TA/NEWS/INFO DISPLAY MODE
PTY SEARCH
DIMMER
9
q
p
w
FM MODE
A/V CONTROL
RECEIVER
AUDIO
TV
VCR
DVD
TEST
EFFECT
MENU
ENTER
RETURN
SOUND
SLEEP
CENTER
REAR L
SUBWOOFER
CD
–
DISC
REC PAUSE
TAPE/CDR CD DVD
FM/AM
FM MODE
DIMMER TV/VIDEO
SURROUND
ON/OFF
MODE
MUTING
VCR CH
TV CH
VOLUME
TV SOUND VCR
ANALOG
/DIGITAL
REAR R
100
1
4
7/P
10
2
5
8
0
3
6
9
10
REMOTE CONTROL RM-SRX5022R
REW
FF
1
p
TV VOLUME
STANDBY/ON
6
8
9
3
t
u
y
i
5
4
2
q
r
7
w
e
TA/NEWS/INFO
PTY–PTY SEARCH–PTY
DISPLAY MODE
Table of Contents / Parts Identification
EN01-07.RX-5022RSL[B]_f 02.1.16, 5:32 PM2
